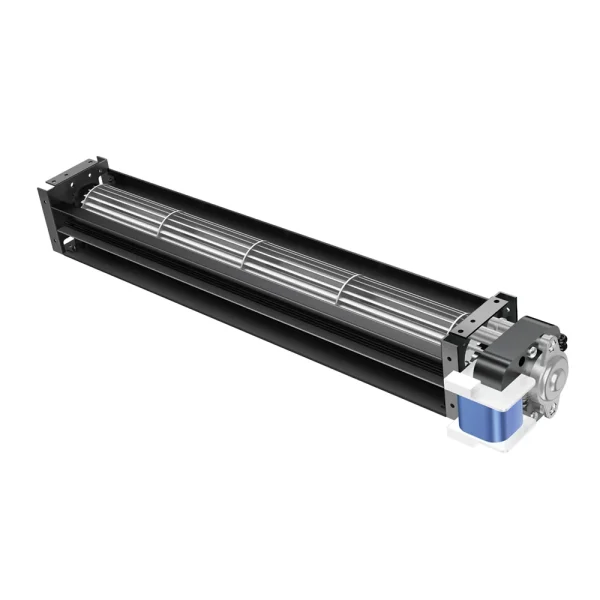

LWCA-30250UN-06 product photo
  • ImpellerØ30 mm
  • Max airflow59 m³/h
  • Max static pressure11 Pa
  • Voltage115 V
  • Speed2,400 rpm
  • Input power11 W
  • Noise26 dB(A)

LWCA-30250UN-06 AC Cross Flow Fan Ø30 mm

Ø30 mm | AC | Max airflow 59 m³/h | Max static pressure 11 Pa | 26 dB(A)

SKU: LWCA-30250UN-06 Categories: , ,
  • Factory direct
  • OEM / ODM
  • Samples in 1–3 days
  • Production 15–30 days
  • 18-month warranty
  • CE · ETL · RoHS
View RFQ →

LWCA-30250UN-06 — construction, airflow path and running condition.

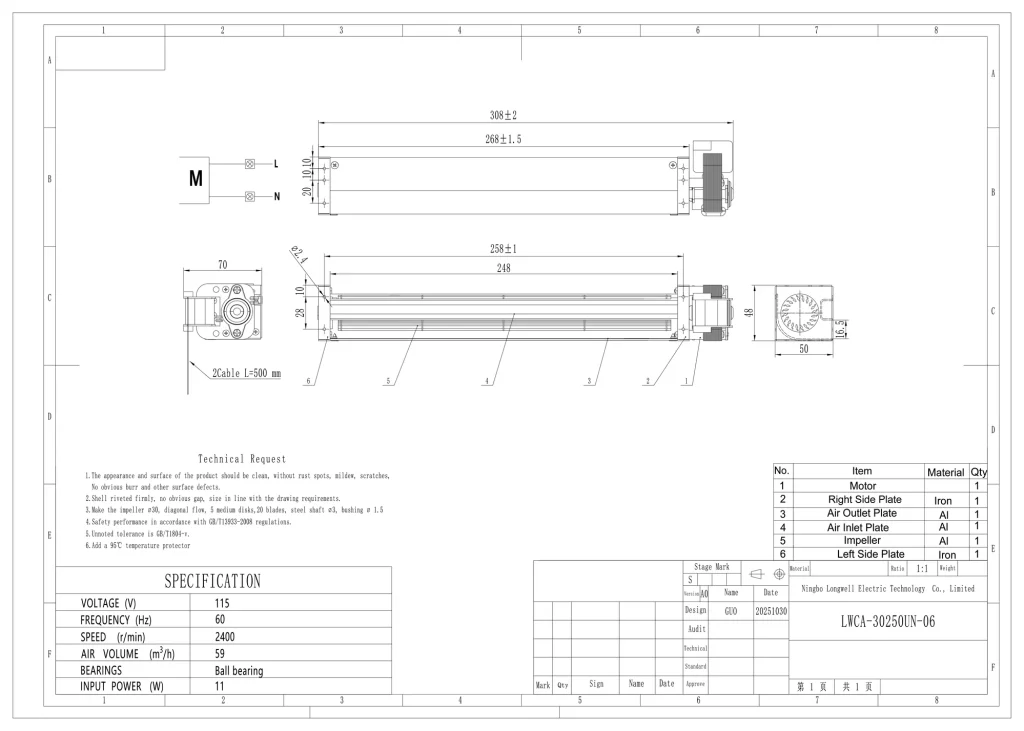

Dimensional drawingDimensions in mm. Confirm against the final approval drawing before machining cut-outs.
LWCA-30250UN-06 Dimensional drawing

Downloads for LWCA-30250UN-06

PDFDatasheetPDFDrawing · 255 KB

Need a non-standard size or another format? Ask an engineer or search the download center.

LWCA-30250UN-06 is a LONGWELL AC Cross Flow Fan from the AC Cross Flow Fans range, impeller Ø30 mm, rated 115 V AC, maximum airflow 59 m³/h, maximum static pressure 11 Pa, noise 26 dB(A), input power 11 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model LWCA-30250UN-06
Series LWCA30250
Motor type AC
Phase 1-phase
Inlet Single inlet
Rated voltage 115 V
Frequency 60 Hz
Input power 11 W
Speed 2,400 rpm
Max. airflow 59 m³/h
Max. static pressure 11 Pa
Noise 26 dB(A)
Ambient temperature -25 ~ 60 °C
Impeller diameter Ø30 mm
Outlet length 248mm
Impeller material Aluminum alloy
Insulation class B/F/H
Bearing Maintenance-free ball bearings
Duty S1

Typical applications

  • Indoor air-conditioning units
  • Air curtains and door air barriers
  • Elevator and cabinet ventilation
  • Linear air supply in appliances

Series LWCA30250: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø30 mm · AC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

ModelMax airflowMax static pressureSpeedPowerNoiseVoltage
LWCA-30250UN-06 this model 59 m³/h11 Pa 2,400 rpm11 W26 dB(A)115 V
LWCA-30290SN-07 71 m³/h12 Pa 2,400 rpm11 W27 dB(A)230 V View
LWCA-30290UN-06 71 m³/h12 Pa 2,400 rpm12 W27 dB(A)115 V View
LWCA-30350SN-07 84 m³/h13 Pa 2,400 rpm11 W27 dB(A)230 V View
LWCA-30350UN-06 84 m³/h13 Pa 2,400 rpm13 W27 dB(A)115 V View
LWCA-30420SN-07 100 m³/h14 Pa 2,400 rpm11 W28 dB(A)230 V View
LWCA-30420UN-06 100 m³/h14 Pa 2,400 rpm13 W28 dB(A)115 V View
LWCA-30530SN-06 137 m³/h13 Pa 2,200 rpm13 W29 dB(A)230 V View
LWCA-30610SN-06 158 m³/h13 Pa 2,200 rpm13 W29 dB(A)230 V View
LWCA-30650SN-06 168 m³/h14 Pa 2,200 rpm14 W29 dB(A)230 V View
LWCA-30718SN-06 185 m³/h14 Pa 2,200 rpm15 W30 dB(A)230 V View
LWCA-30800SN-06 207 m³/h15 Pa 2,200 rpm15 W31 dB(A)230 V View
LWCA-30854SN-06 221 m³/h16 Pa 2,200 rpm15 W31 dB(A)230 V View
LWCA-30920SN-06 238 m³/h16 Pa 2,200 rpm16 W32 dB(A)230 V View
LWCA-30986SN-06 255 m³/h17 Pa 2,200 rpm16 W33 dB(A)230 V View

Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
