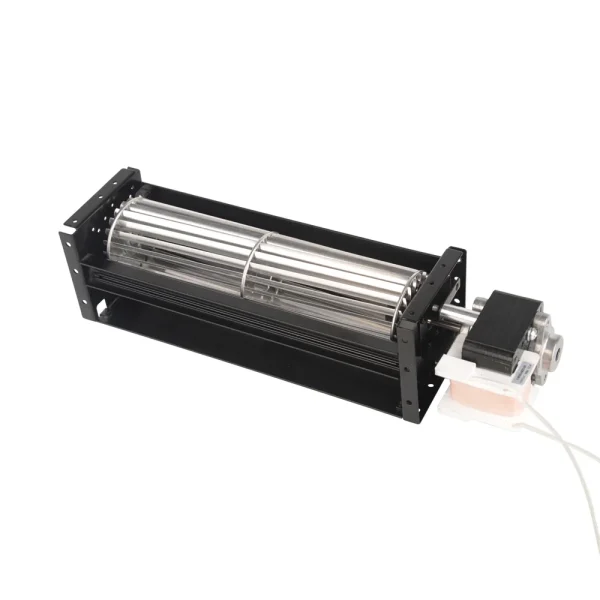

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.

ImpellerØ50 mm2.0 in
Max airflow114 m³/h67 CFM
Max static pressure30 Pa0.12 in. wg
Voltage115 V
Speed2,000 rpm
Input power13 W
Noise38 dB(A)

LWCA-50190UN-06 AC Cross Flow Fan Ø50 mm

Ø50 mm | AC | Max airflow 114 m³/h | Max static pressure 30 Pa | 38 dB(A)

SKU: LWCA-50190UN-06 Categories: AC Cross Flow Fans, Cross Flow Fans, Impeller Ø30–50 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueCross FLow Fan · SKU on PDF p. 31

All files for LWCA-50190UN-063 files · direct download

PDFFull product catalogue · model on PDF p. 31 WEBPDimensional drawing

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Air curtains Air heaters Dry-type transformer cooling Electric heaters All industries →

Proven in projects

Air curtain OEM programme Trench convector & heating terminals Consumer air cooler & fan ODM All case studies →

Engineering files (on request)

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.

EXB2D drawing (CAXA EXB)349 KBRequest →

CAD models contain the blade geometry and are not publicly downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

Get a quote · LWCA-50190UN-06

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWCA-50190UN-06datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Dimensional drawing LWCA-50190UN-06

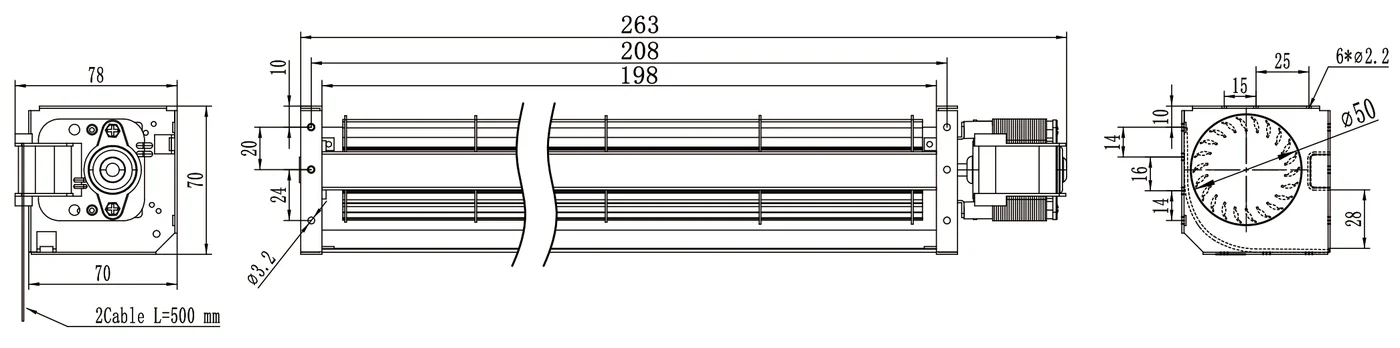

LWCA-50190UN-06 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

Files for LWCA-50190UN-06: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWCA-50190UN-06

LWCA-50190UN-06 is a LONGWELL AC Cross Flow Fan from the AC Cross Flow Fans range, impeller Ø50 mm, rated 115 V AC, maximum airflow 114 m³/h, maximum static pressure 30 Pa, noise 38 dB(A), input power 13 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWCA-50190UN-06
Series	LWCA50190
Motor type	AC
Phase	1-phase
Inlet	Single inlet
Rated voltage	115 V
Frequency	60 Hz
Input power	13 W
Speed	2,000 rpm
Max. airflow	114 m³/h
Max. static pressure	30 Pa
Noise	38 dB(A)
Ambient temperature	-25 ~ 60 °C
Impeller diameter	Ø50 mm
Outlet length	198mm
Impeller material	Aluminum alloy
Insulation class	B/F/H
Bearing	Maintenance-free ball bearings
Duty	S1

Typical applications

Indoor air-conditioning units
Air curtains and door air barriers
Elevator and cabinet ventilation
Linear air supply in appliances

Series LWCA50190: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
