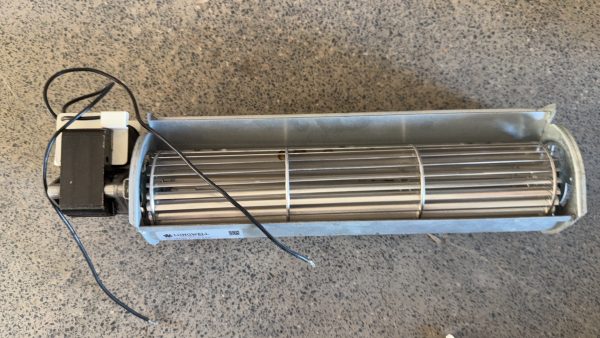

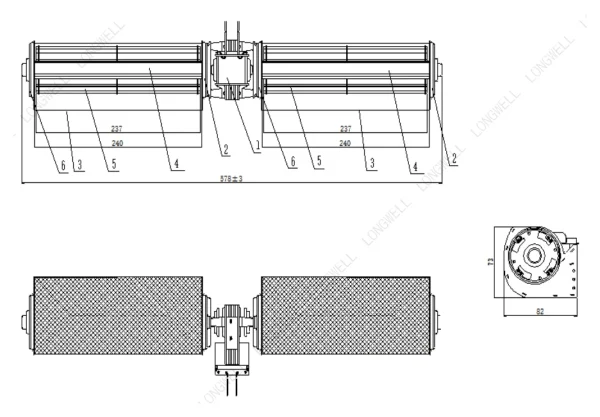

LWCA-45240SN-06 — construction, airflow path and running condition.
LWCA-45240SN-06 AC Cross Flow Fan | Performance Test · open in video library
- ImpellerØ45 mm1.8 in
- Max airflow138 m³/h81 CFM
- Max static pressure24 Pa0.10 in. wg
- Voltage230 V
- Speed1,700 rpm
- Input power21 W
- Noise36 dB(A)

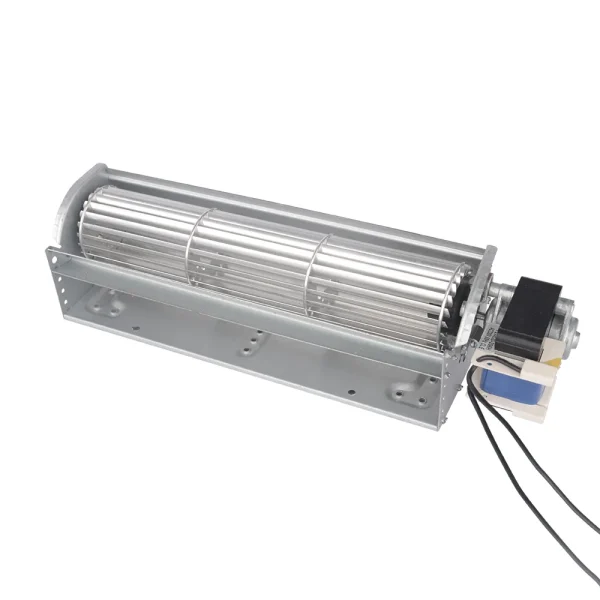

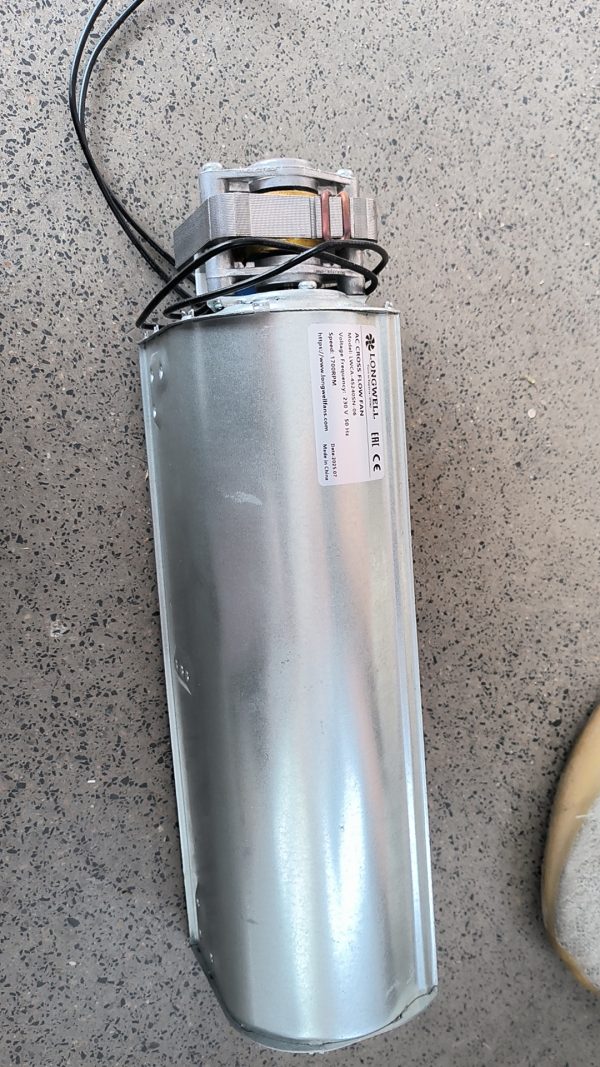

LWCA-45240SN-06 AC Cross Flow Fan Ø45 mm
Ø45 mm | AC | Max airflow 138 m³/h | Max static pressure 24 Pa | 36 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Engineering files (on request)
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.
Downloads for LWCA-45240SN-06
PDFDatasheetNeed a non-standard size or another format? Ask an engineer or search the download center.
LWCA-45240SN-06 is a LONGWELL AC Cross Flow Fan from the AC Cross Flow Fans range, impeller Ø45 mm, rated 230 V AC, maximum airflow 138 m³/h, maximum static pressure 24 Pa, noise 36 dB(A), input power 21 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWCA-45240SN-06 |
|---|---|
| Series | LWCA45240 |
| Motor type | AC |
| Phase | 1-phase |
| Inlet | Single inlet |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Input power | 21 W |
| Speed | 1,700 rpm |
| Max. airflow | 138 m³/h |
| Max. static pressure | 24 Pa |
| Noise | 36 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Storage temperature | -30~60℃ |
| Humidity | 0 ~ 90 % RH |
| Impeller diameter | Ø45 mm |
| Outlet length | 240mm |
| Impeller material | Aluminium ( Impeller ); cold-rolled sheet (frame) Life expectancy: 30,000Hours(L10), At 25 °Croom, humidity 30%~90%RH Service environment : Operating temperature: -30~60 °C; Operating humidity: 0 ~ 90 % RH Storing temperature: -30~ |
| Insulation class | B/F/H |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
Typical applications
- Indoor air-conditioning units
- Air curtains and door air barriers
- Elevator and cabinet ventilation
- Linear air supply in appliances
Series LWCA45240: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

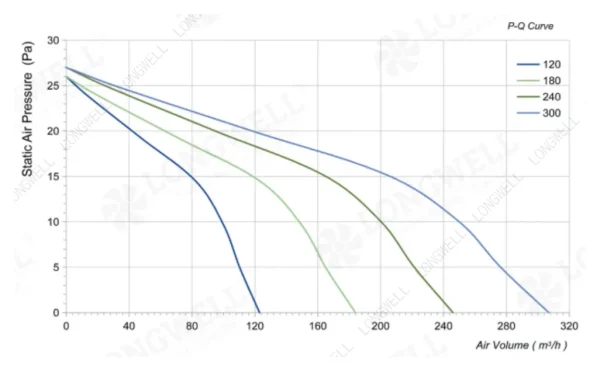

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø45 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWCA-45240SN-06 this model | 138 m³/h | 24 Pa | 1,700 rpm | 21 W | 36 dB(A) | 230 V | |
| LWCA-45120SN-06 | 69 m³/h | 22 Pa | 1,700 rpm | 16 W | 35 dB(A) | 230 V | View |
| LWCA-45180SN-06 | 103 m³/h | 23 Pa | 1,700 rpm | 18 W | 35 dB(A) | 230 V | View |
| LWCA-45120SN-07 | 123 m³/h | 26 Pa | 1,600 rpm | 28 W | 39 dB(A) | 230 V | View |
| LWCA-45300SN-06 | 172 m³/h | 25 Pa | 1,700 rpm | 23 W | 36 dB(A) | 230 V | View |
| LWCA-45180SN-07 | 184 m³/h | 26 Pa | 1,600 rpm | 30 W | 39 dB(A) | 230 V | View |
| LWCA-45360SN-06 | 207 m³/h | 25 Pa | 1,700 rpm | 26 W | 37 dB(A) | 230 V | View |
| LWCA-45240SN-07 | 246 m³/h | 27 Pa | 1,600 rpm | 33 W | 40 dB(A) | 230 V | View |
| LWCA-45300SN-07 | 307 m³/h | 27 Pa | 1,600 rpm | 36 W | 41 dB(A) | 230 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
