ImpellerØ45 mm1.8 in
Max airflow207 m³/h122 CFM
Max static pressure25 Pa0.10 in. wg
Voltage230 V
Speed1,700 rpm
Input power26 W
Noise37 dB(A)

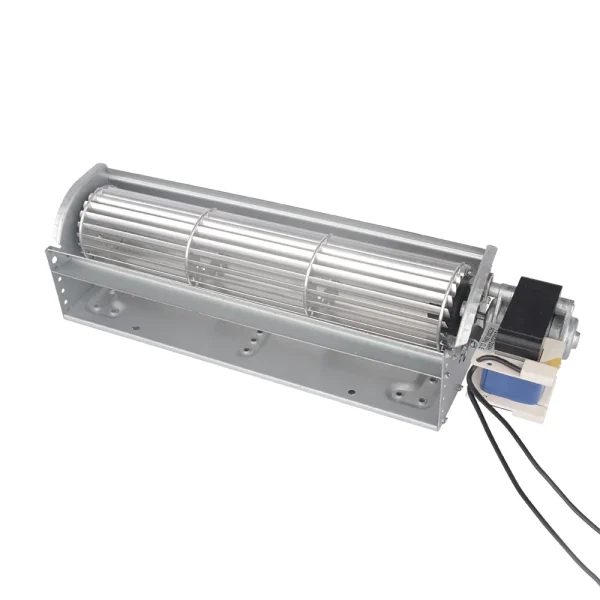

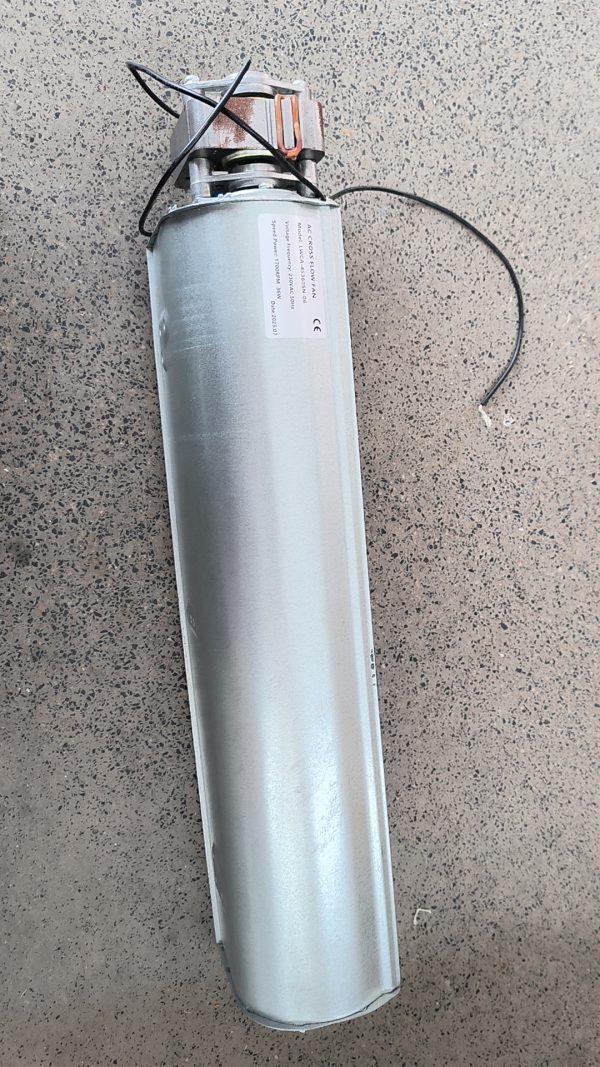

LWCA-45360SN-06 AC Cross Flow Fan Ø45 mm

Ø45 mm | AC | Max airflow 207 m³/h | Max static pressure 25 Pa | 37 dB(A)

SKU: LWCA-45360SN-06 Categories: AC Cross Flow Fans, Cross Flow Fans, Impeller Ø30–50 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueCross FLow Fan · SKU on PDF p. 29

All files for LWCA-45360SN-062 files · direct download

PDFFull product catalogue · model on PDF p. 29

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Air curtains Air heaters Dry-type transformer cooling Electric heaters All industries →

Proven in projects

Air curtain OEM programme Trench convector & heating terminals Consumer air cooler & fan ODM All case studies →

Engineering files (on request)

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.

CAD models contain the blade geometry and are not publicly downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

Get a quote · LWCA-45360SN-06

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWCA-45360SN-06datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Technical description LWCA-45360SN-06

LWCA-45360SN-06 is a LONGWELL AC Cross Flow Fan from the AC Cross Flow Fans range, impeller Ø45 mm, rated 230 V AC, maximum airflow 207 m³/h, maximum static pressure 25 Pa, noise 37 dB(A), input power 26 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWCA-45360SN-06
Series	LWCA45360
Motor type	AC
Phase	1-phase
Inlet	Single inlet
Rated voltage	230 V
Frequency	50 Hz
Input power	26 W
Speed	1,700 rpm
Max. airflow	207 m³/h
Max. static pressure	25 Pa
Noise	37 dB(A)
Ambient temperature	-25 ~ 60 °C
Impeller diameter	Ø45 mm
Outlet length	360mm
Impeller material	Aluminum alloy
Insulation class	B/F/H
Bearing	Maintenance-free ball bearings
Duty	S1

Typical applications

Indoor air-conditioning units
Air curtains and door air barriers
Elevator and cabinet ventilation
Linear air supply in appliances

Series LWCA45360: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Company certificates

Scans of original documents held by Ningbo Longwell Electric Technology Co., Ltd.: the company ISO 9001 / 14001 / 45001 management-system certificate. Click a scan to open the original.

ISO 9001 / 14001 / 45001Management systems of Ningbo Longwell Electric Technology Co., Ltd. (company certificate).

ISO 9001 / 14001 / 45001 management system certificate — LONGWELL certificate

PDFISO 9001 / 14001 / 45001 management system certificate

Need a Declaration of Conformity for this model and your destination market? Ask us — we arrange additional certification on request.

How to order LWCA-45360SN-06

Most first orders follow the same eight steps. Quantities, terms and lead times are confirmed in your quotation.

1SelectFind models by duty point in the selector or by model number, compare on the curve and add them to your RFQ list.
2Engineering checkWithin 1 business day you receive the duty-point check on the curve, price and lead time.
3SamplesStock models ship in 1–3 days.
4Validation supportDatasheets, drawings, wiring diagrams and DoC per model; test reports, CAD and register maps after a short project check or NDA.
5Order & paymentProforma invoice; first orders on T/T 30 / 70.
6Production & release15–30 days at the partner factory that builds your model, then inspected and released to LONGWELL standards with outgoing sampling to AQL 2.5.
7ShippingFOB / CIF / DDP by sea from Ningbo or Shanghai; express and air on EXW / FCA / DAP.
8After-sales12 months standard, extendable to 18–24 months by project agreement; test records retained for 5 years; 8D closed-loop for any issue; annual technical review for framework customers.

See terms, QC and FAQ →

Test & release at LONGWELL

Specified and drawn by LONGWELL; built to LONGWELL drawings by qualified partner factories; inspected and released to LONGWELL standards before shipment.

See test and release photos (8)

LONGWELL Semi-anechoic chamber — Semi-anechoic chamber

LONGWELL Test laboratory — Test laboratory

Test labs and all certificate scans →

Alternatives with the same impeller (Ø45 mm · AC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWCA-45360SN-06 this model	207 m³/h	25 Pa	1,700 rpm	26 W	37 dB(A)	230 V
LWCA-45120SN-06	69 m³/h	22 Pa	1,700 rpm	16 W	35 dB(A)	230 V	View
LWCA-45180SN-06	103 m³/h	23 Pa	1,700 rpm	18 W	35 dB(A)	230 V	View
LWCA-45120SN-07	123 m³/h	26 Pa	1,600 rpm	28 W	39 dB(A)	230 V	View
LWCA-45240SN-06	138 m³/h	24 Pa	1,700 rpm	21 W	36 dB(A)	230 V	View
LWCA-45300SN-06	172 m³/h	25 Pa	1,700 rpm	23 W	36 dB(A)	230 V	View
LWCA-45180SN-07	184 m³/h	26 Pa	1,600 rpm	30 W	39 dB(A)	230 V	View
LWCA-45240SN-07	246 m³/h	27 Pa	1,600 rpm	33 W	40 dB(A)	230 V	View
LWCA-45300SN-07	307 m³/h	27 Pa	1,600 rpm	36 W	41 dB(A)	230 V	View
