ImpellerØ60 mm2.4 in
Max airflow113 m³/h67 CFM
Max static pressure57 Pa0.23 in. wg
Voltage230 V
Speed1,700 rpm
Input power15 W
Noise44 dB(A)

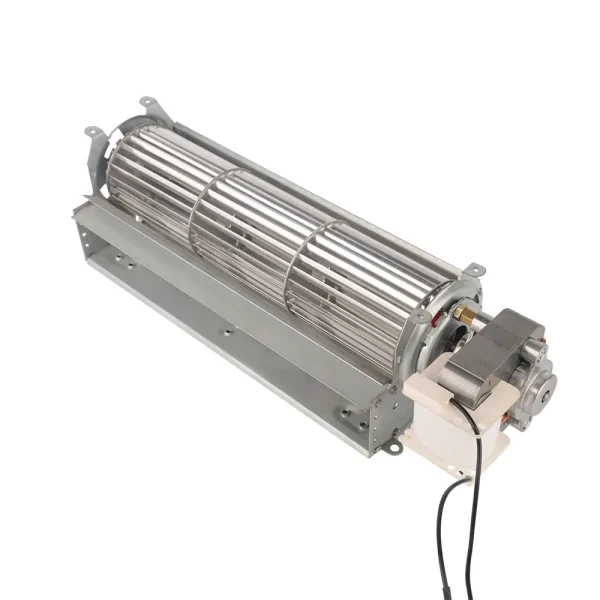

LWCA-60120SN-06 AC Cross Flow Fan Ø60 mm

Ø60 mm | AC | Max airflow 113 m³/h | Max static pressure 57 Pa | 44 dB(A)

SKU: LWCA-60120SN-06 Categories: AC Cross Flow Fans, Cross Flow Fans, Impeller Ø60–150 mm

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · ETL · RoHS

View RFQ →

Engineering files (on request)

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.

CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

Get a quote · LWCA-60120SN-06

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Datasheet (PDF)electrical & performance data All files for LWCA-60120SN-06drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Drawings & downloads
Technical description

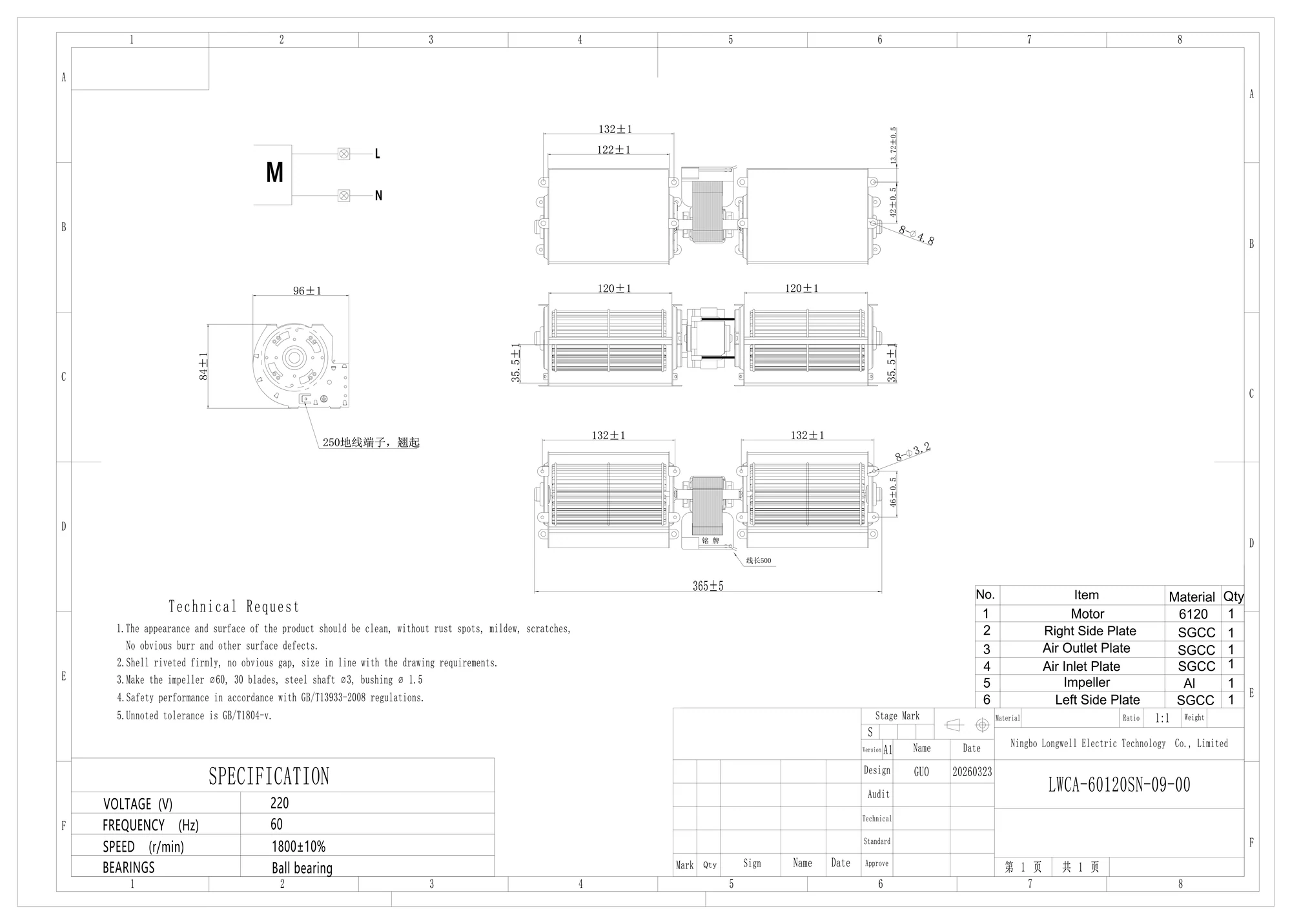

LWCA-60120SN-06 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

Downloads for LWCA-60120SN-06

PDFDatasheet

Need a non-standard size or another format? Ask an engineer or search the download center.

LWCA-60120SN-06 is a LONGWELL AC Cross Flow Fan from the AC Cross Flow Fans range, impeller Ø60 mm, rated 230 V AC, maximum airflow 113 m³/h, maximum static pressure 57 Pa, noise 44 dB(A), input power 15 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWCA-60120SN-06
Series	LWCA60120
Motor type	AC
Phase	1-phase
Inlet	Single inlet
Rated voltage	230 V
Frequency	50 Hz
Input power	15 W
Speed	1,700 rpm
Max. airflow	113 m³/h
Max. static pressure	57 Pa
Noise	44 dB(A)
Ambient temperature	-25 ~ 60 °C
Impeller diameter	Ø60 mm
Outlet length	120mm
Impeller material	Aluminum alloy
Insulation class	B/F/H
Bearing	Maintenance-free ball bearings
Duty	S1

Typical applications

Indoor air-conditioning units
Air curtains and door air barriers
Elevator and cabinet ventilation
Linear air supply in appliances

Series LWCA60120: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø60 mm · AC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWCA-60120SN-06 this model	113 m³/h	57 Pa	1,700 rpm	15 W	44 dB(A)	230 V
LWCA-60180SN-06	170 m³/h	58 Pa	1,700 rpm	20 W	46 dB(A)	230 V	View
LWCA-60120SN-07	212 m³/h	63 Pa	1,700 rpm	28 W	47 dB(A)	230 V	View
LWCA-60240SN-06	227 m³/h	59 Pa	1,700 rpm	25 W	46 dB(A)	230 V	View
LWCA-60300SN-06	284 m³/h	61 Pa	1,700 rpm	30 W	47 dB(A)	230 V	View
LWCA-60180SN-07	318 m³/h	64 Pa	1,700 rpm	31 W	48 dB(A)	230 V	View
LWCA-60360SN-06	340 m³/h	62 Pa	1,700 rpm	33 W	48 dB(A)	230 V	View
LWCA-60420SN-06	397 m³/h	63 Pa	1,700 rpm	36 W	49 dB(A)	230 V	View
LWCA-60240SN-07	423 m³/h	66 Pa	1,700 rpm	37 W	49 dB(A)	230 V	View
LWCA-60480SN-06	454 m³/h	64 Pa	1,700 rpm	40 W	50 dB(A)	230 V	View
LWCA-60300SN-07	539 m³/h	60 Pa	1,700 rpm	43 W	50 dB(A)	230 V	View
