- ImpellerØ65 mm
- Max airflow143 m³/h
- Max static pressure40 Pa
- Voltage12 V
- Speed1,800 rpm
- Input power15.6 W
- Noise47 dB(A)

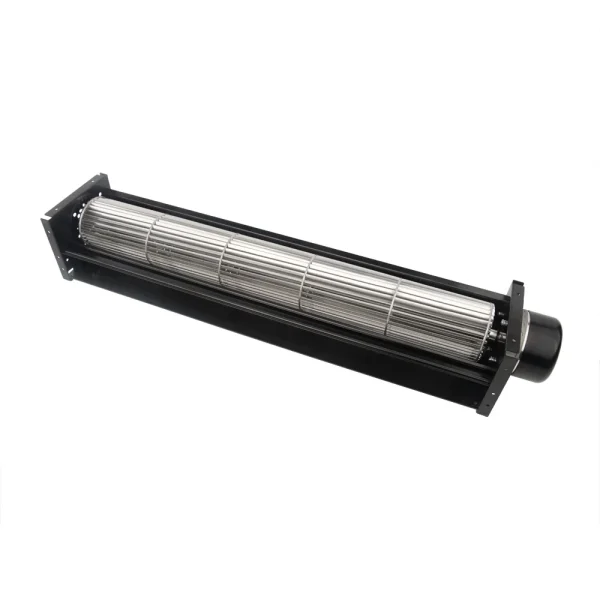

LWCD-65120LN-06 DC Cross Flow Fan Ø65 mm
Ø65 mm | DC | Max airflow 143 m³/h | Max static pressure 40 Pa | 47 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
LWCD-65120LN-06 is a LONGWELL DC Cross Flow Fan from the DC Cross Flow Fans range, impeller Ø65 mm, rated 12 V DC, maximum airflow 143 m³/h, maximum static pressure 40 Pa, noise 47 dB(A), input power 15.6 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.
Technical data
| Model | LWCD-65120LN-06 |
|---|---|
| Series | LWCD65120 |
| Motor type | DC |
| Inlet | Single inlet |
| Rated voltage | 12 V |
| Current | 1.3 A |
| Input power | 15.6 W |
| Speed | 1,800 rpm |
| Max. airflow | 143 m³/h |
| Max. static pressure | 40 Pa |
| Noise | 47 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Impeller diameter | Ø65 mm |
| Outlet length | 123mm |
| Impeller material | Aluminum alloy |
| Insulation class | B |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
Typical applications
- Indoor air-conditioning units
- Air curtains and door air barriers
- Elevator and cabinet ventilation
- Linear air supply in appliances
Series LWCD65120: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø65 mm · DC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWCD-65120LN-06 this model | 143 m³/h | 40 Pa | 1,800 rpm | 15.6 W | 47 dB(A) | 12 V | |
| LWCD-65520LN-06 | 606 m³/h | 52 Pa | 1,800 rpm | 32.4 W | 53 dB(A) | 12 V | View |
| LWCD-65520MN-07 | 606 m³/h | 52 Pa | 1,800 rpm | 28.8 W | 53 dB(A) | 24 V | View |
| LWCD-65620LN-06 | 722 m³/h | 53 Pa | 1,800 rpm | 30 W | 53 dB(A) | 12 V | View |
| LWCD-65620MN-07 | 722 m³/h | 53 Pa | 1,800 rpm | 38.4 W | 53 dB(A) | 24 V | View |
| LWCD-65720LN-06 | 819 m³/h | 55 Pa | 1,800 rpm | 31.2 W | 53 dB(A) | 12 V | View |
| LWCD-65720MN-07 | 819 m³/h | 55 Pa | 1,800 rpm | 31.2 W | 53 dB(A) | 24 V | View |
| LWCD-65750LN-06 | 853 m³/h | 56 Pa | 1,800 rpm | 33.6 W | 54 dB(A) | 12 V | View |
| LWCD-65750MN-07 | 853 m³/h | 56 Pa | 1,800 rpm | 39.6 W | 54 dB(A) | 24 V | View |
| LWCD-65820LN-06 | 933 m³/h | 56 Pa | 1,800 rpm | 36 W | 55 dB(A) | 12 V | View |
| LWCD-65820MN-07 | 933 m³/h | 56 Pa | 1,800 rpm | 36 W | 55 dB(A) | 24 V | View |
| LWCD-65870LN-06 | 990 m³/h | 58 Pa | 1,800 rpm | 38.4 W | 55 dB(A) | 12 V | View |
| LWCD-65870MN-07 | 990 m³/h | 58 Pa | 1,800 rpm | 38.4 W | 55 dB(A) | 24 V | View |
| LWCD-651100MN-06 | 1,178 m³/h | 58 Pa | 1,800 rpm | 100.8 W | 55 dB(A) | 24 V | View |
| LWCD-651300MN-06 | 1,392 m³/h | 58 Pa | 1,800 rpm | 100.8 W | 55 dB(A) | 24 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
