- ImpellerØ60 mm
- Max airflow212 m³/h
- Max static pressure63 Pa
- Voltage230 V
- Speed1,700 rpm
- Input power28 W
- Noise47 dB(A)
LWCA-60120SN-07 AC Cross Flow Fan Ø60 mm
Ø60 mm | AC | Max airflow 212 m³/h | Max static pressure 63 Pa | 47 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS

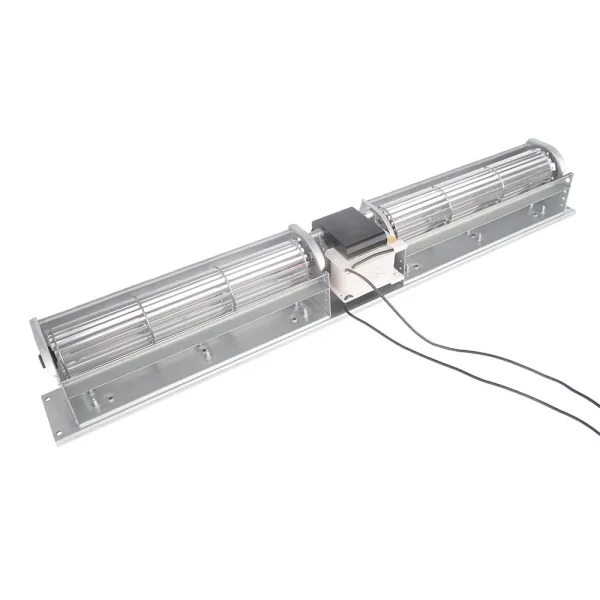

LWCA-60120SN-07 is a LONGWELL AC Cross Flow Fan from the AC Cross Flow Fans range, impeller Ø60 mm, rated 230 V AC, maximum airflow 212 m³/h, maximum static pressure 63 Pa, noise 47 dB(A), input power 28 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

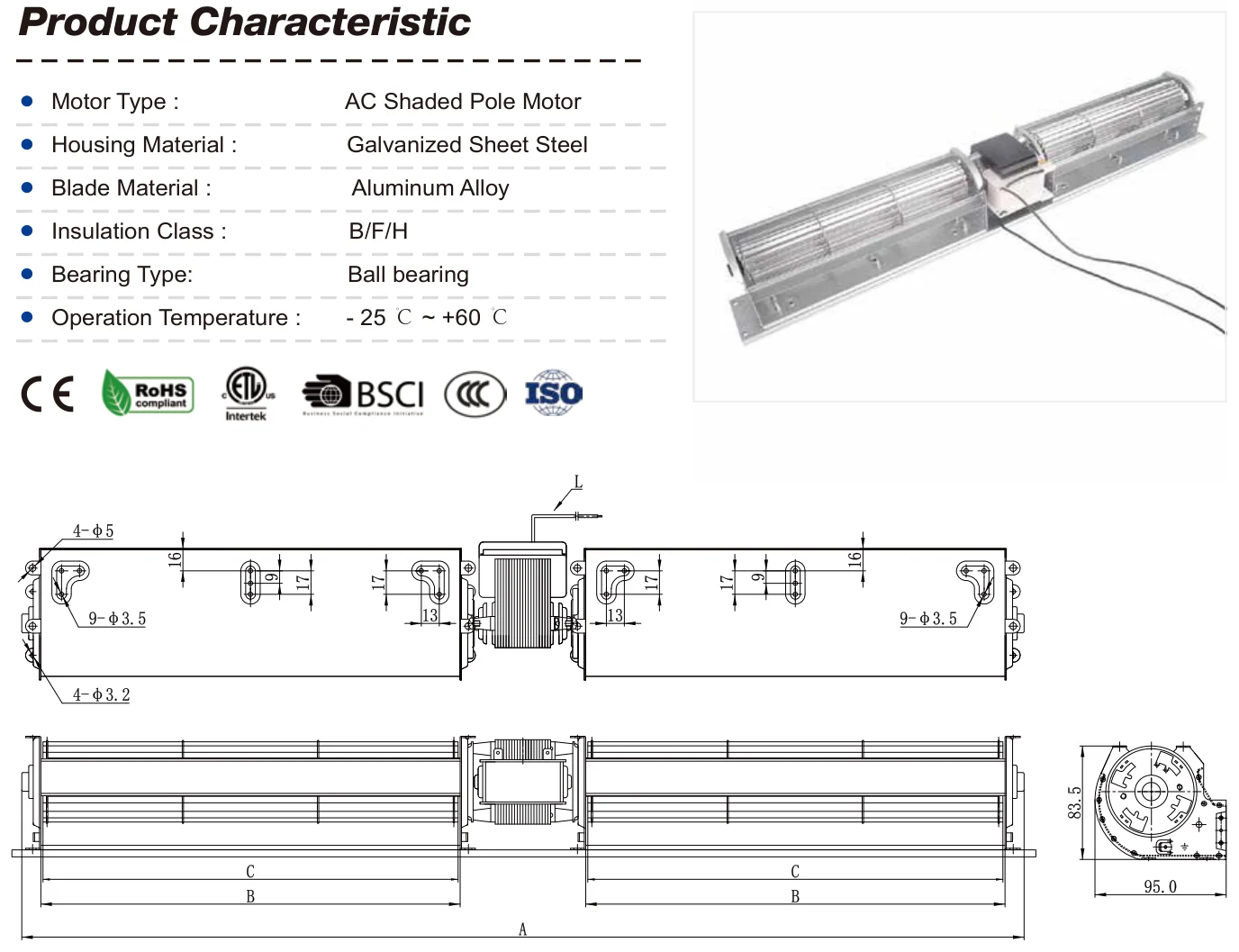

Technical data
| Model | LWCA-60120SN-07 |
|---|---|
| Series | LWCA60120 |
| Motor type | AC |
| Phase | 1-phase |
| Inlet | Dual inlet |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Input power | 28 W |
| Speed | 1,700 rpm |
| Max. airflow | 212 m³/h |
| Max. static pressure | 63 Pa |
| Noise | 47 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Impeller diameter | Ø60 mm |
| Outlet length | 120mm |
| Impeller material | Aluminum alloy |
| Insulation class | B/F/H |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
Typical applications
- Indoor air-conditioning units
- Air curtains and door air barriers
- Elevator and cabinet ventilation
- Linear air supply in appliances
Series LWCA60120: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø60 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWCA-60120SN-07 this model | 212 m³/h | 63 Pa | 1,700 rpm | 28 W | 47 dB(A) | 230 V | |
| LWCA-60120SN-06 | 113 m³/h | 57 Pa | 1,700 rpm | 15 W | 44 dB(A) | 230 V | View |
| LWCA-60180SN-06 | 170 m³/h | 58 Pa | 1,700 rpm | 20 W | 46 dB(A) | 230 V | View |
| LWCA-60240SN-06 | 227 m³/h | 59 Pa | 1,700 rpm | 25 W | 46 dB(A) | 230 V | View |
| LWCA-60300SN-06 | 284 m³/h | 61 Pa | 1,700 rpm | 30 W | 47 dB(A) | 230 V | View |
| LWCA-60180SN-07 | 318 m³/h | 64 Pa | 1,700 rpm | 31 W | 48 dB(A) | 230 V | View |
| LWCA-60360SN-06 | 340 m³/h | 62 Pa | 1,700 rpm | 33 W | 48 dB(A) | 230 V | View |
| LWCA-60420SN-06 | 397 m³/h | 63 Pa | 1,700 rpm | 36 W | 49 dB(A) | 230 V | View |
| LWCA-60240SN-07 | 423 m³/h | 66 Pa | 1,700 rpm | 37 W | 49 dB(A) | 230 V | View |
| LWCA-60480SN-06 | 454 m³/h | 64 Pa | 1,700 rpm | 40 W | 50 dB(A) | 230 V | View |
| LWCA-60300SN-07 | 539 m³/h | 60 Pa | 1,700 rpm | 43 W | 50 dB(A) | 230 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
