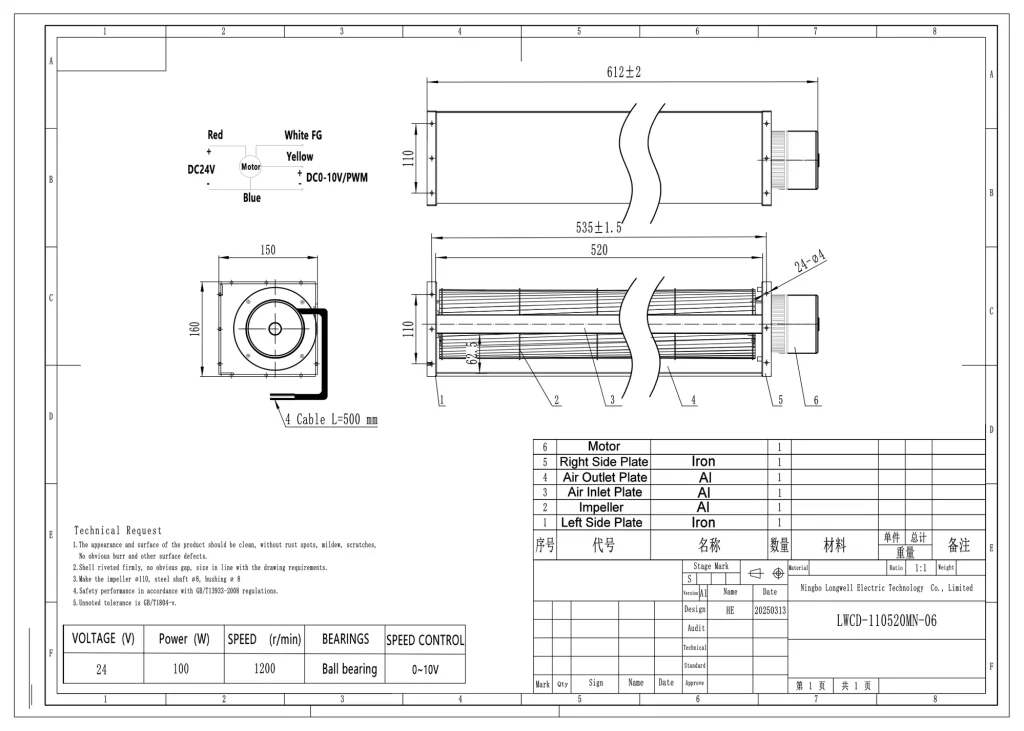

PDFFull product catalogue · Cross FLow Fan · model on PDF p. 21 · 28.2 MBPDFDrawing · 289 KBPDFDatasheet · 289 KBNeed a non-standard size or another format? Ask an engineer or search the download center.
- ImpellerØ110 mm4.3 in
- Max airflow1,205 m³/h709 CFM
- Max static pressure202 Pa0.81 in. wg
- Voltage24 V
- Speed1,200 rpm
- Input power100 W
- Noise57 dB(A)

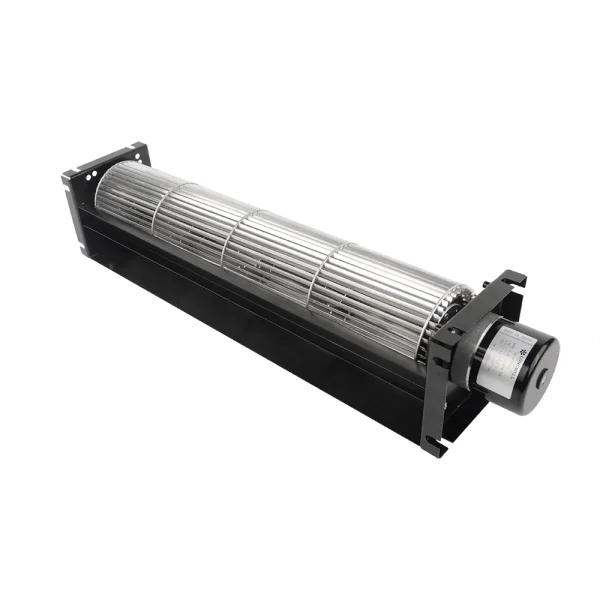

LWCD-110520MN-06 DC Cross Flow Fan Ø110 mm
Ø110 mm | DC | Max airflow 1,205 m³/h | Max static pressure 202 Pa | 57 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · ETL · RoHS
PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueCross FLow Fan · SKU on PDF p. 21
All files for LWCD-110520MN-064 files · direct download
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
Proven in: Air curtain OEM programme · Trench convector & heating terminals · Consumer air cooler & fan ODM — all case studies on longwellfans.com
Typical applications: Electric heaters · Display cases · Air curtains · Air purifiers — all industries
Engineering files (on request)
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.
LWCD-110520MN-06 is a LONGWELL DC Cross Flow Fan from the DC Cross Flow Fans range, impeller Ø110 mm, rated 24 V DC, maximum airflow 1,205 m³/h, maximum static pressure 202 Pa, noise 57 dB(A), input power 100 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.
Technical data
| Model | LWCD-110520MN-06 |
|---|---|
| Series | LWCD110520 |
| Motor type | DC |
| Inlet | Single inlet |
| Rated voltage | 24 V |
| Input power | 100 W |
| Speed | 1,200 rpm |
| Max. airflow | 1,205 m³/h |
| Max. static pressure | 202 Pa |
| Noise | 57 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Impeller diameter | Ø110 mm |
| Outlet length | 520mm |
| Impeller material | Aluminum alloy |
| Insulation class | B |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
Typical applications
- Indoor air-conditioning units
- Air curtains and door air barriers
- Elevator and cabinet ventilation
- Linear air supply in appliances
Series LWCD110520: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø110 mm · DC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWCD-110520MN-06 this model | 1,205 m³/h | 202 Pa | 1,200 rpm | 100 W | 57 dB(A) | 24 V | |
| LWCD-110380MN-06 | 881 m³/h | 141 Pa | 1,200 rpm | 70 W | 55 dB(A) | 24 V | View |
| LWCD-110620MN-06 | 1,437 m³/h | 244 Pa | 1,200 rpm | 120 W | 57 dB(A) | 24 V | View |
| LWCD-110720MN-06 | 1,669 m³/h | 278 Pa | 1,200 rpm | 132 W | 58 dB(A) | 24 V | View |
| LWCD-110820MN-06 | 1,845 m³/h | 320 Pa | 1,200 rpm | 146 W | 59 dB(A) | 24 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
