- ImpellerØ150 mm5.9 in
- Max airflow1,600 m³/h942 CFM
- Max static pressure63 Pa0.25 in. wg
- Voltage24 V
- Speed800 rpm
- Input power84 W
- Noise60 dB(A)
LWCD-150500MN-06 DC Cross Flow Fan Ø150 mm
Ø150 mm | DC | Max airflow 1,600 m³/h | Max static pressure 63 Pa | 60 dB(A)
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · ETL · RoHS
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not publicly downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.
Video LWCD-150500MN-06
LWCD-150500MN-06 — construction, airflow path and running condition.

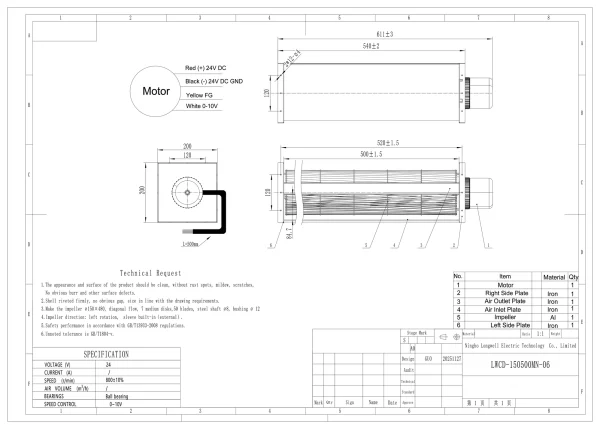

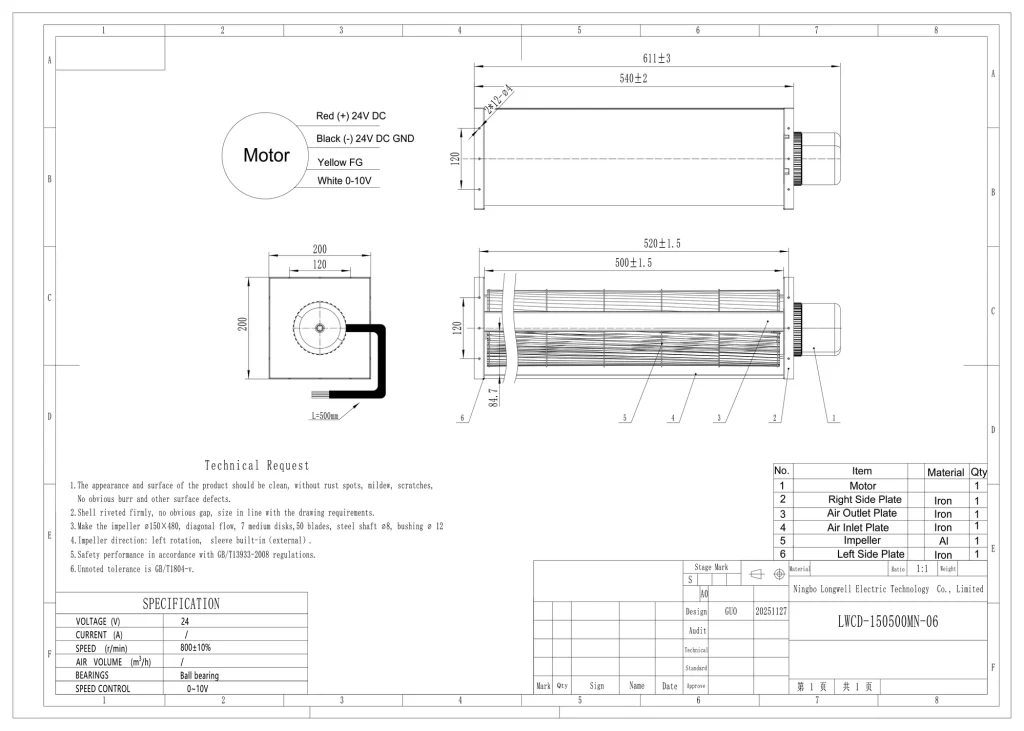

Dimensional drawing LWCD-150500MN-06
Files for LWCD-150500MN-06: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWCD-150500MN-06
LWCD-150500MN-06 is a LONGWELL DC Cross Flow Fan from the DC Cross Flow Fans range, impeller Ø150 mm, rated 24 V DC, maximum airflow 1,600 m³/h, maximum static pressure 63 Pa, noise 60 dB(A), input power 84 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.
Technical data
| Model | LWCD-150500MN-06 |
|---|---|
| Series | LWCD150500 |
| Motor type | DC |
| Inlet | Single inlet |
| Rated voltage | 24 V |
| Input power | 84 W |
| Speed | 800 rpm |
| Max. airflow | 1,600 m³/h |
| Max. static pressure | 63 Pa |
| Noise | 60 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Impeller diameter | Ø150 mm |
| Outlet length | 500mm |
| Impeller material | Aluminum alloy |
| Insulation class | B |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
Typical applications
- Indoor air-conditioning units
- Air curtains and door air barriers
- Elevator and cabinet ventilation
- Linear air supply in appliances
Series LWCD150500: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Product-line certificates
Scans of original documents held by Ningbo Longwell Electric Technology Co., Ltd.: the company ISO management-system certificate and the certificates whose model list covers this model. Click a scan to open the original.
ISO 9001 / 14001 / 45001Management systems of Ningbo Longwell Electric Technology Co., Ltd. (company certificate).
PDFISO 9001 / 14001 / 45001 management system certificateETLIntertek Authorization to Mark, control no. 5022563; the covered model ranges are stated on the document.
PDFETL Authorization to Mark · report 220400509HAN-001 · LWCD DC cross-flow fansNeed a Declaration of Conformity for this model and your destination market? Ask us — we arrange additional certification on request.
How to order LWCD-150500MN-06
Most first orders follow the same eight steps. Quantities, terms and lead times are confirmed in your quotation.
- 1SelectFind models by duty point in the selector or by model number, compare on the curve and add them to your RFQ list.
- 2Engineering checkWithin 1 business day you receive the duty-point check on the curve, price and lead time.
- 3SamplesStock models ship in 1–3 days.
- 4Validation supportDatasheets, drawings, wiring diagrams and DoC per model; test reports, CAD and register maps after a short project check or NDA.
- 5Order & paymentProforma invoice; first orders on T/T 30 / 70.
- 6Production & release15–30 days at the partner factory that builds your model, then inspected and released to LONGWELL standards with outgoing sampling to AQL 2.5.
- 7ShippingFOB / CIF / DDP by sea from Ningbo or Shanghai; express and air on EXW / FCA / DAP.
- 8After-sales12 months standard, extendable to 18–24 months by project agreement; test records retained for 5 years; 8D closed-loop for any issue; annual technical review for framework customers.
Test & release at LONGWELL
Specified and drawn by LONGWELL; built to LONGWELL drawings by qualified partner factories; inspected and released to LONGWELL standards before shipment.
See test and release photos (8)
Alternatives with the same impeller (Ø150 mm · DC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWCD-150500MN-06 this model | 1,600 m³/h | 63 Pa | 800 rpm | 84 W | 60 dB(A) | 24 V | |
| LWCD-150380MN-06 | 1,350 m³/h | 50 Pa | 100 rpm | 80 W | 62 dB(A) | 24 V | View |
| LWCD-150700MN-06 | 2,500 m³/h | 83 Pa | 800 rpm | 105 W | 60 dB(A) | 24 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
Adjacent sizesOne size up when airflow is short, one size down when it is too much
LWCA-120680SN-06Ø120 mm · 1,560 m³/h · 122 Pa · ACadjacent size
LWCA-120380SN-06Ø120 mm · 1,000 m³/h · 68 Pa · ACadjacent size
LWCA-120560SN-06Ø120 mm · 1,380 m³/h · 100 Pa · ACadjacent size
LWCD-120380MN-06Ø120 mm · 900 m³/h · 68 Pa · DCadjacent size
LWCA-120780SN-06Ø120 mm · 1,780 m³/h · 140 Pa · ACadjacent size
LWCA-120900SN-06Ø120 mm · 2,000 m³/h · 161 Pa · ACadjacent sizeAlternatives at a similar dutySimilar airflow, different construction or motor platform
LWCD-120680MN-06Ø120 mm · 1,600 m³/h · 122 Pa · DCsimilar duty
LWCE-110720SN-06Ø110 mm · 1,600 m³/h · 223 Pa · ECsimilar duty
LWCE-120680SN-06Ø120 mm · 1,600 m³/h · 123 Pa · ECsimilar duty
LWCE-150380SN-06Ø150 mm · 1,600 m³/h · 62 Pa · ECsimilar duty
LWDA-250(8'')S-PWN-05Ø250 mm · 1,600 m³/h · 420 Pa · ACsimilar duty
LWBE(RT)280-NW-011,600 m³/hsimilar dutySee all Cross Flow Fans · select by duty point
