- ImpellerØ30 mm
- Max airflow27 m³/h
- Max static pressure12 Pa
- Voltage12 V
- Speed3,300 rpm
- Input power1.08 W
- Noise26 dB(A)

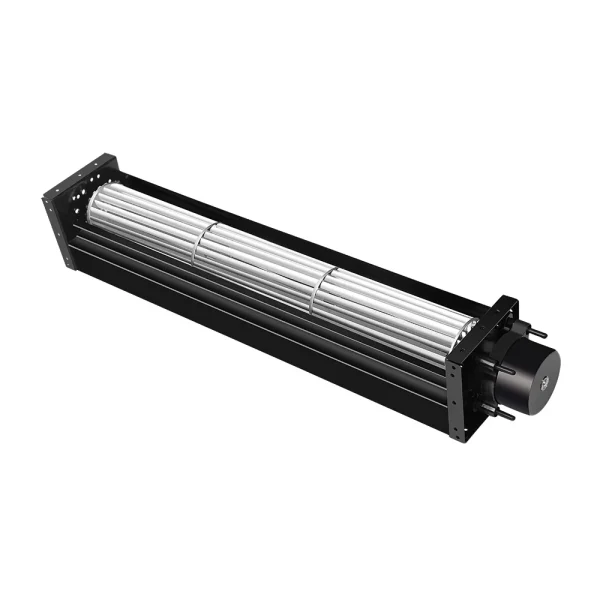

LWCD-3090LN-06 DC Cross Flow Fan Ø30 mm
Ø30 mm | DC | Max airflow 27 m³/h | Max static pressure 12 Pa | 26 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Engineering files (on request)

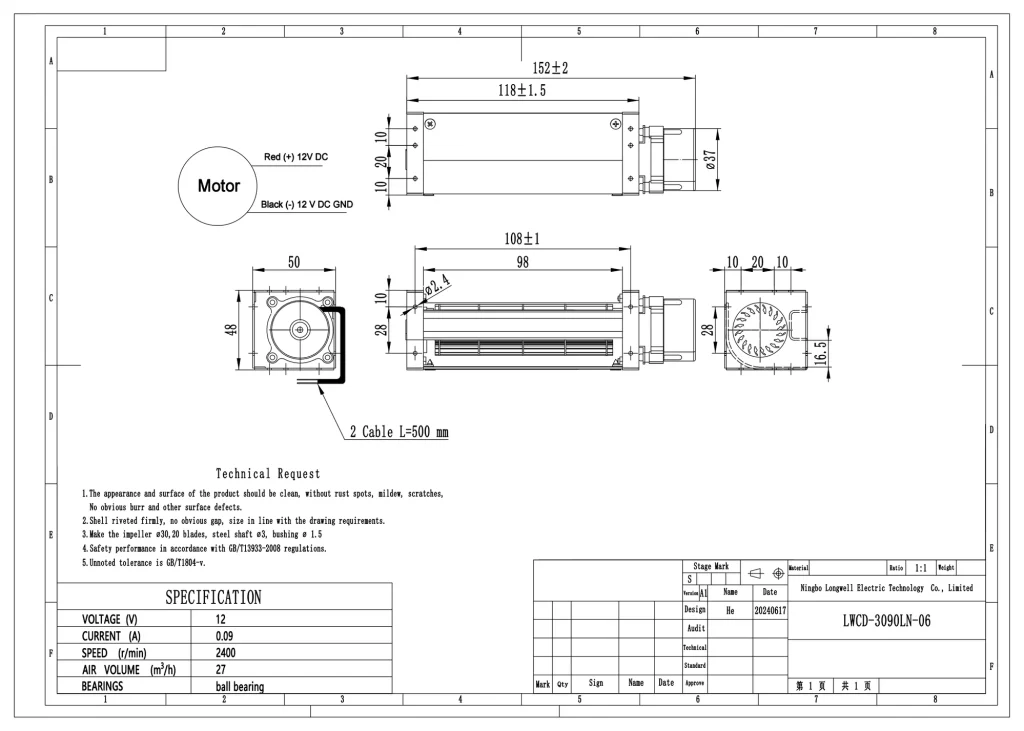

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.
LWCD-3090LN-06 is a LONGWELL DC Cross Flow Fan from the DC Cross Flow Fans range, impeller Ø30 mm, rated 12 V DC, maximum airflow 27 m³/h, maximum static pressure 12 Pa, noise 26 dB(A), input power 1.08 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.
Technical data
| Model | LWCD-3090LN-06 |
|---|---|
| Series | LWCD3090 |
| Motor type | DC |
| Inlet | Single inlet |
| Rated voltage | 12 V |
| Current | 0.09 A |
| Input power | 1.08 W |
| Speed | 3,300 rpm |
| Max. airflow | 27 m³/h |
| Max. static pressure | 12 Pa |
| Noise | 26 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Impeller diameter | Ø30 mm |
| Outlet length | 98mm |
| Impeller material | Aluminum alloy |
| Insulation class | B |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
Typical applications
- Indoor air-conditioning units
- Air curtains and door air barriers
- Elevator and cabinet ventilation
- Linear air supply in appliances
Series LWCD3090: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø30 mm · DC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWCD-3090LN-06 this model | 27 m³/h | 12 Pa | 3,300 rpm | 1.08 W | 26 dB(A) | 12 V | |
| LWCD-30290MN-07 | 85 m³/h | 15 Pa | 2,400 rpm | 1.68 W | 33 dB(A) | 24 V | View |
| LWCD-30350MN-07 | 105 m³/h | 16 Pa | 2,400 rpm | 1.92 W | 34 dB(A) | 24 V | View |
| LWCD-30350LN-06 | 105 m³/h | 16 Pa | 2,400 rpm | 1.56 W | 34 dB(A) | 12 V | View |
| LWCD-30420MN-07 | 125 m³/h | 17 Pa | 2,400 rpm | 2.16 W | 34 dB(A) | 24 V | View |
| LWCD-30420LN-06 | 125 m³/h | 17 Pa | 2,400 rpm | 1.68 W | 34 dB(A) | 12 V | View |
| LWCD-30530MN-06 | 137 m³/h | 17 Pa | 2,400 rpm | 2.88 W | 32 dB(A) | 24 V | View |
| LWCD-30610MN-06 | 158 m³/h | 18 Pa | 2,400 rpm | 3.12 W | 33 dB(A) | 24 V | View |
| LWCD-30650MN-06 | 168 m³/h | 18 Pa | 2,400 rpm | 3.12 W | 34 dB(A) | 24 V | View |
| LWCD-30718MN-06 | 185 m³/h | 19 Pa | 2,400 rpm | 3.36 W | 35 dB(A) | 24 V | View |
| LWCD-30800MN-06 | 207 m³/h | 19 Pa | 2,400 rpm | 1.32 W | 36 dB(A) | 24 V | View |
| LWCD-30854MN-06 | 221 m³/h | 20 Pa | 2,400 rpm | 4.56 W | 36 dB(A) | 24 V | View |
| LWCD-30920MN-06 | 238 m³/h | 20 Pa | 2,400 rpm | 5.04 W | 37 dB(A) | 24 V | View |
| LWCD-30986MN-06 | 255 m³/h | 21 Pa | 2,400 rpm | 5.28 W | 37 dB(A) | 24 V | View |
| LWCD-301082MN-06 | 279 m³/h | 21 Pa | 2,400 rpm | 5.76 W | 38 dB(A) | 24 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
