LWCD-80620MN-06 DC Cross Flow Fan Ø80 mm

Ø80 mm | DC | Max airflow 800 m³/h | Max static pressure 70 Pa | 55 dB(A)

SKU: LWCD-80620MN-06 Categories: , ,
  • Factory direct
  • OEM / ODM
  • Samples in 1–3 days
  • Production 15–30 days
  • 18-month warranty
  • CE · ETL · RoHS
View RFQ →
Engineering files (on request)

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.

CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

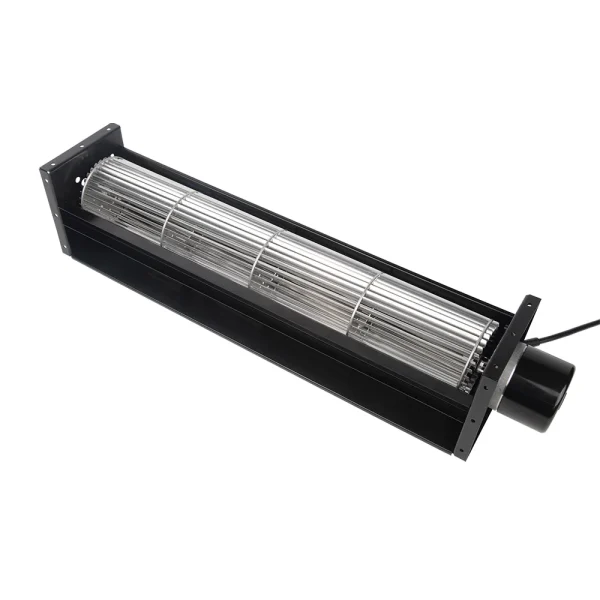

LWCD-80620MN-06 — construction, airflow path and running condition.

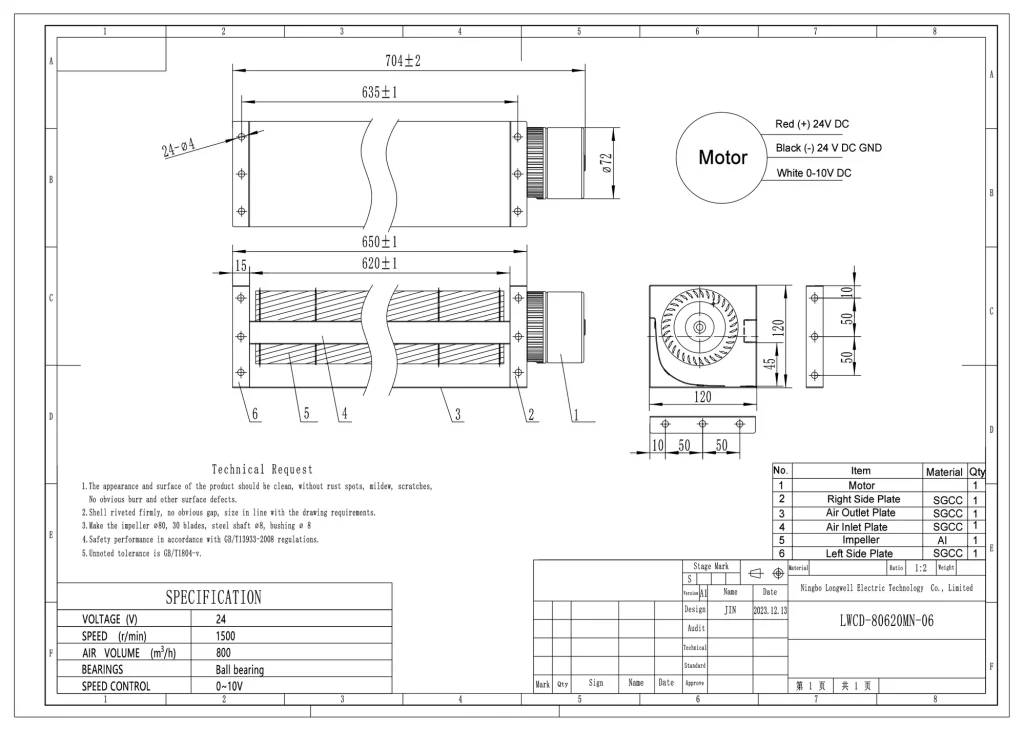

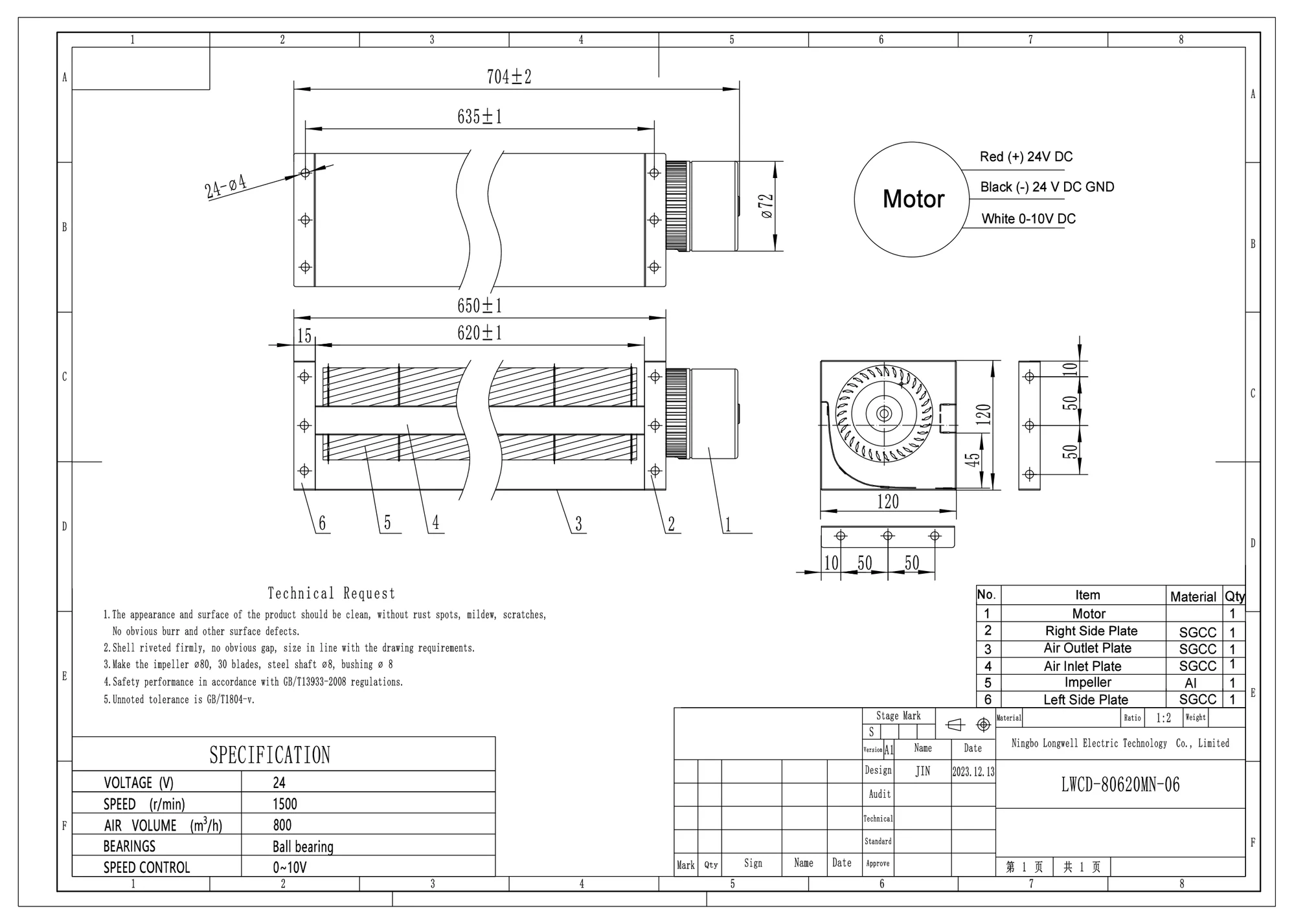

Dimensional drawingDimensions in mm. Confirm against the final approval drawing before machining cut-outs.
LWCD-80620MN-06 Dimensional drawing

Downloads for LWCD-80620MN-06

PDFDrawing · 229 KBPDFDatasheet · 391 KB

Need a non-standard size or another format? Ask an engineer or search the download center.

LWCD-80620MN-06 is a LONGWELL DC Cross Flow Fan from the DC Cross Flow Fans range, impeller Ø80 mm, rated 24 V DC, maximum airflow 800 m³/h, maximum static pressure 70 Pa, noise 55 dB(A), input power 31 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model LWCD-80620MN-06
Series LWCD80620
Motor type DC
Inlet Single inlet
Rated voltage 24 V
Current 31 A
Input power 31 W
Speed 1,500 rpm
Max. airflow 800 m³/h
Max. static pressure 70 Pa
Noise 55 dB(A)
Ambient temperature -25 ~ 60 °C
Impeller diameter Ø80 mm
Outlet length 620mm
Impeller material Aluminum alloy
Insulation class B
Bearing Maintenance-free ball bearings
Duty S1

Typical applications

  • Indoor air-conditioning units
  • Air curtains and door air barriers
  • Elevator and cabinet ventilation
  • Linear air supply in appliances

Series LWCD80620: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø80 mm · DC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

ModelMax airflowMax static pressureSpeedPowerNoiseVoltage
LWCD-80620MN-06 this model 800 m³/h70 Pa 1,500 rpm31 W55 dB(A)24 V
LWAD8038HD-12 97.8 m³/h133 Pa 6,000 rpm9.6 W47.4 dB(A)48 V View
LWAD8038MD-12 97.8 m³/h133 Pa 6,000 rpm7.2 W47.4 dB(A)24 V View
LWAD8038HL-11 114 m³/h181 Pa 7,000 rpm12 W50.7 dB(A)48 V View
LWAD8038ML-11 114 m³/h181 Pa 7,000 rpm9.6 W50.7 dB(A)24 V View
LWAD8038HM-10 130.8 m³/h236 Pa 8,000 rpm14.4 W53.6 dB(A)48 V View
LWAD8038HH-09 147 m³/h299 Pa 9,000 rpm16.8 W56.2 dB(A)48 V View
LWAD8038HX-08 163.2 m³/h369 Pa 10,000 rpm48 W58.5 dB(A)48 V View
LWAD8038HX-07 179.4 m³/h446 Pa 11,000 rpm48 W60.6 dB(A)48 V View
LWAD8038HX-06 195.6 m³/h531 Pa 12,000 rpm48 W62.4 dB(A)48 V View
LWAD8038HX-05 220.2 m³/h672 Pa 13,500 rpm48 W65 dB(A)48 V View
LWCD-80350MN-06 465 m³/h39 Pa 1,500 rpm13 W53 dB(A)24 V View
LWCD-80520MN-06 650 m³/h59 Pa 1,500 rpm23 W54 dB(A)24 V View
LWCD-80720MN-06 1,000 m³/h82 Pa 1,500 rpm33 W55 dB(A)24 V View
LWCD-80820MN-06 1,250 m³/h93 Pa 1,500 rpm45 W56 dB(A)24 V View

Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
