- ImpellerØ90 mm
- Max airflow607 m³/h
- Max static pressure70 Pa
- Voltage24 V
- Speed1,500 rpm
- Input power24.5 W
- Noise54 dB(A)

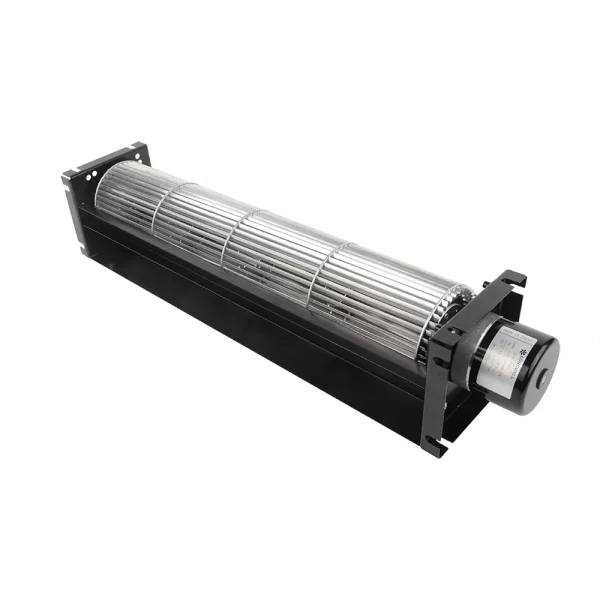

LWCD-90360MN-06 DC Cross Flow Fan Ø90 mm
Ø90 mm | DC | Max airflow 607 m³/h | Max static pressure 70 Pa | 54 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Engineering files (on request)

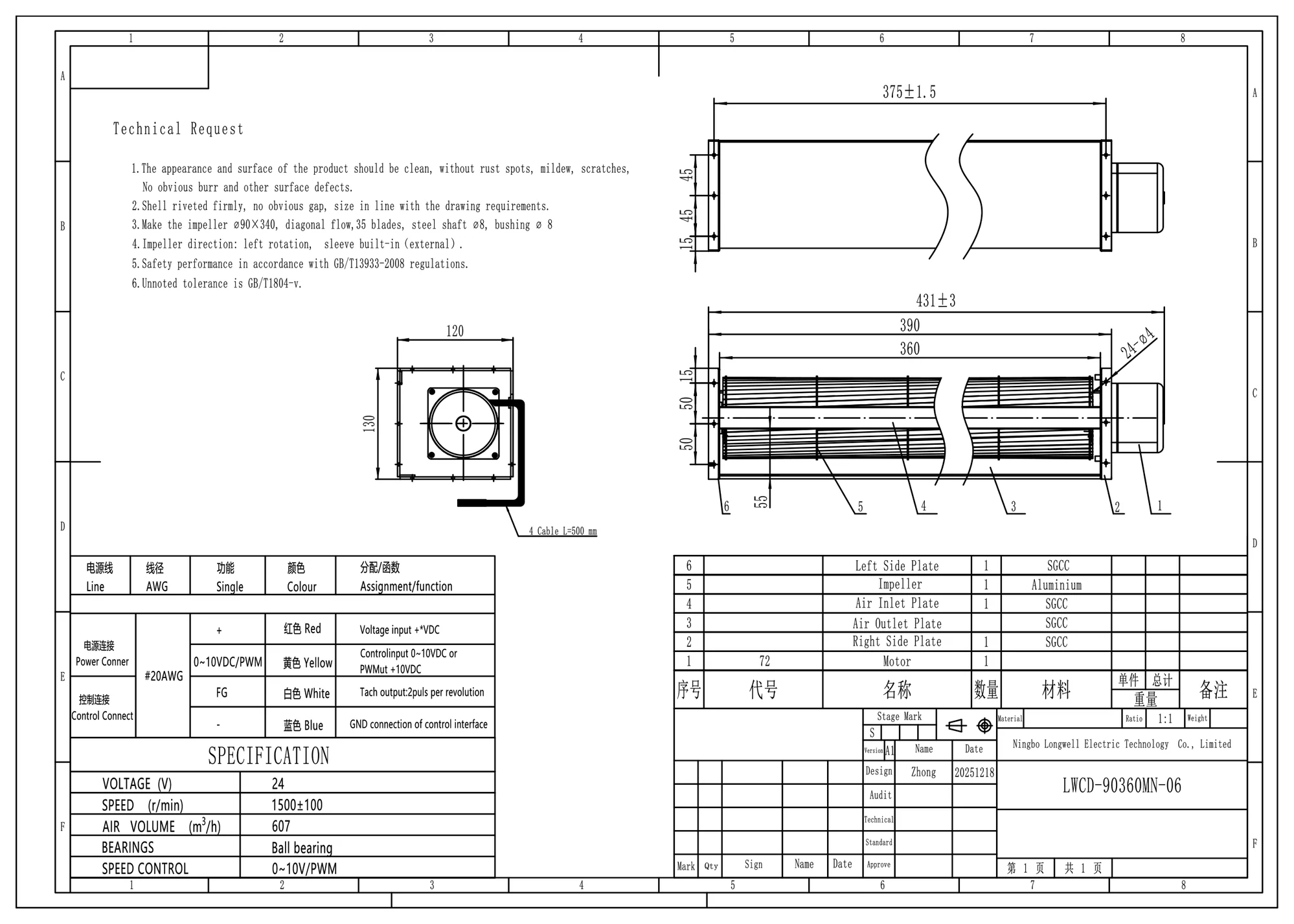

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.
LWCD-90360MN-06 is a LONGWELL DC Cross Flow Fan from the DC Cross Flow Fans range, impeller Ø90 mm, rated 24 V DC, maximum airflow 607 m³/h, maximum static pressure 70 Pa, noise 54 dB(A), input power 24.5 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.
Technical data
| Model | LWCD-90360MN-06 |
|---|---|
| Series | LWCD90360 |
| Motor type | DC |
| Inlet | Single inlet |
| Rated voltage | 24 V |
| Input power | 24.5 W |
| Speed | 1,500 rpm |
| Max. airflow | 607 m³/h |
| Max. static pressure | 70 Pa |
| Noise | 54 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Impeller diameter | Ø90 mm |
| Outlet length | 360mm |
| Impeller material | Aluminum alloy |
| Insulation class | B |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
Typical applications
- Indoor air-conditioning units
- Air curtains and door air barriers
- Elevator and cabinet ventilation
- Linear air supply in appliances
Series LWCD90360: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø90 mm · DC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWCD-90360MN-06 this model | 607 m³/h | 70 Pa | 1,500 rpm | 24.5 W | 54 dB(A) | 24 V | |
| LWCD-90520MN-06 | 876 m³/h | 102 Pa | 1,500 rpm | 40 W | 56 dB(A) | 24 V | View |
| LWCD-90680MN-06 | 1,146 m³/h | 130 Pa | 1,500 rpm | 65 W | 57 dB(A) | 24 V | View |
| LWCD-90800MN-06 | 1,348 m³/h | 157 Pa | 1,500 rpm | 80 W | 58 dB(A) | 24 V | View |
| LWCD-90930MN-06 | 1,567 m³/h | 183 Pa | 1,500 rpm | 96 W | 59 dB(A) | 24 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
