- ImpellerØ90 mm
- Max airflow1,300 m³/h
- Max static pressure140 Pa
- Voltage230 V
- Speed1,350 rpm
- Input power93 W
- Noise59 dB(A)

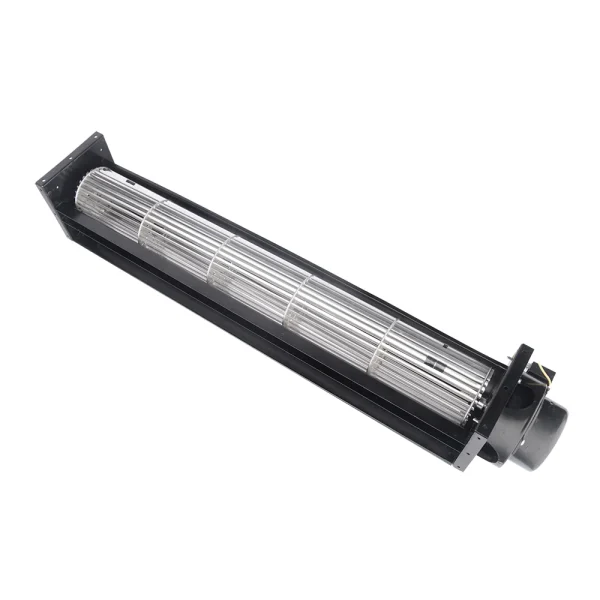

LWCA-90920SN-06 AC Cross Flow Fan Ø90 mm
Ø90 mm | AC | Max airflow 1,300 m³/h | Max static pressure 140 Pa | 59 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
LWCA-90920SN-06 is a LONGWELL AC Cross Flow Fan from the AC Cross Flow Fans range, impeller Ø90 mm, rated 230 V AC, maximum airflow 1,300 m³/h, maximum static pressure 140 Pa, noise 59 dB(A), input power 93 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWCA-90920SN-06 |
|---|---|
| Series | LWCA90920 |
| Motor type | AC |
| Phase | 1-phase |
| Inlet | Single inlet |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Input power | 93 W |
| Speed | 1,350 rpm |
| Max. airflow | 1,300 m³/h |
| Max. static pressure | 140 Pa |
| Noise | 59 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Impeller diameter | Ø90 mm |

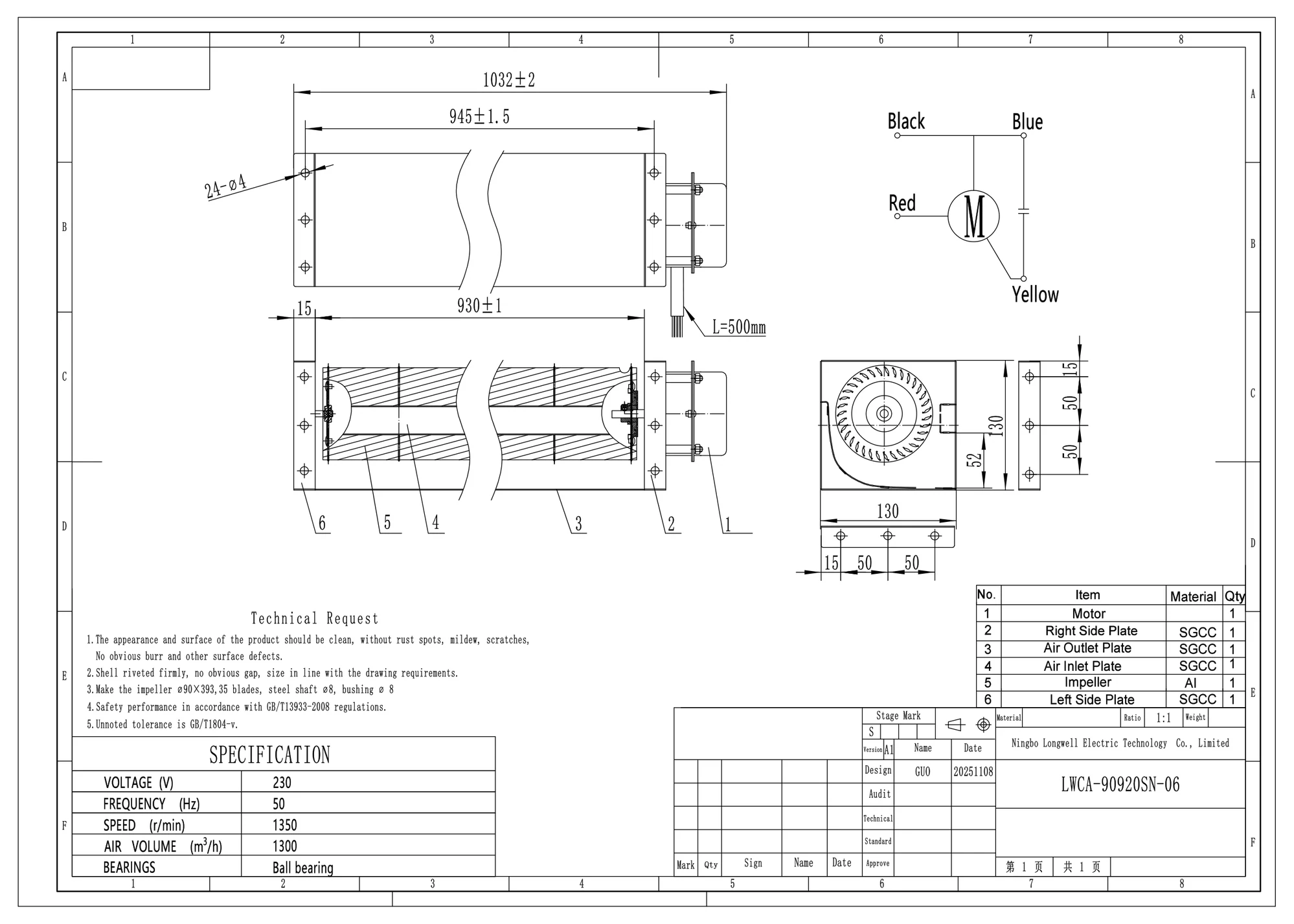

| Outlet length | 930mm |
| Impeller material | Aluminum alloy |
| Insulation class | B/F/H |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
Typical applications
- Indoor air-conditioning units
- Air curtains and door air barriers
- Elevator and cabinet ventilation
- Linear air supply in appliances
Series LWCA90920: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø90 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWCA-90920SN-06 this model | 1,300 m³/h | 140 Pa | 1,350 rpm | 93 W | 59 dB(A) | 230 V | |
| LWCA-90360SN-06 | 550 m³/h | 61 Pa | 1,350 rpm | 33 W | 53 dB(A) | 230 V | View |
| LWCA-90520SN-06 | 770 m³/h | 77 Pa | 1,350 rpm | 55 W | 54 dB(A) | 230 V | View |
| LWCA-90680SN-06 | 1,000 m³/h | 97 Pa | 1,350 rpm | 72 W | 55 dB(A) | 230 V | View |
| LWCA-90800SN-06 | 1,150 m³/h | 120 Pa | 1,350 rpm | 83 W | 58 dB(A) | 230 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
