- ImpellerØ100 mm
- Max airflow1,300 m³/h
- Max static pressure173 Pa
- Voltage230 V
- Speed1,500 rpm
- Input power70 W
- Noise59 dB(A)

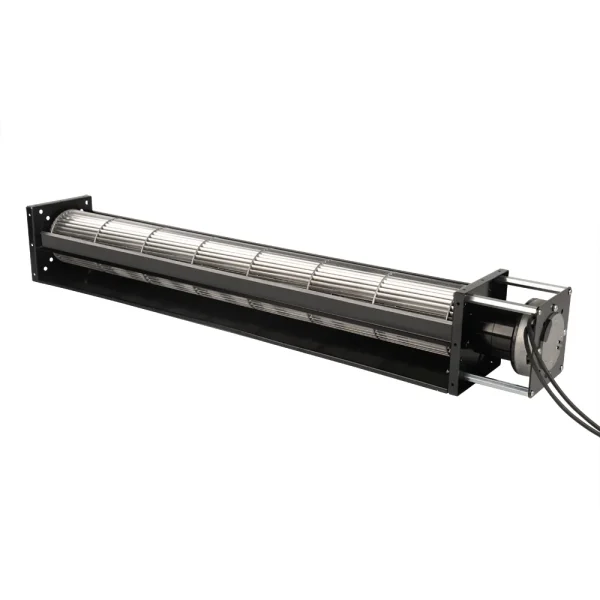

LWCE-100620SN-06 EC Cross Flow Fan Ø100 mm
Ø100 mm | EC | Max airflow 1,300 m³/h | Max static pressure 173 Pa | 59 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS

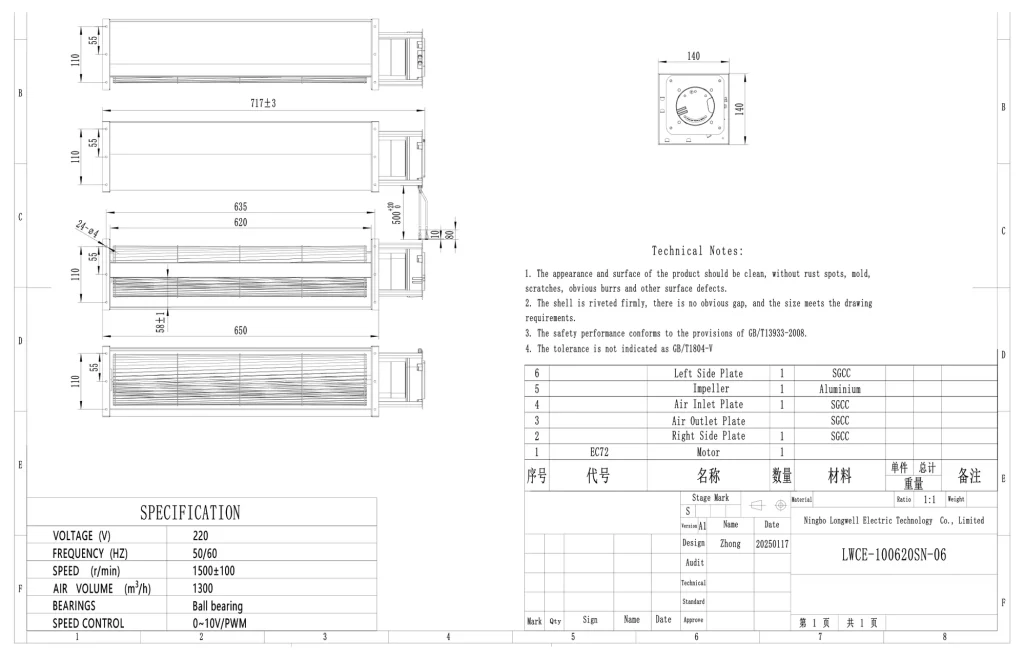

Engineering files (on request)
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.
LWCE-100620SN-06 is a LONGWELL EC Cross Flow Fan from the EC Cross Flow Fans range, impeller Ø100 mm, rated 230 V EC, maximum airflow 1,300 m³/h, maximum static pressure 173 Pa, noise 59 dB(A), input power 70 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWCE-100620SN-06 |
|---|---|
| Series | LWCE10062 |
| Motor type | EC |
| Phase | 1-phase |
| Inlet | Single inlet |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Input power | 70 W |
| Speed | 1,500 rpm |
| Max. airflow | 1,300 m³/h |
| Max. static pressure | 173 Pa |
| Noise | 59 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Impeller diameter | Ø100 mm |
| Outlet length | 620mm |
| Impeller material | Aluminum alloy |
| Insulation class | B |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
Typical applications
- Indoor air-conditioning units
- Air curtains and door air barriers
- Elevator and cabinet ventilation
- Linear air supply in appliances
Series LWCE10062: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø100 mm · EC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWCE-100620SN-06 this model | 1,300 m³/h | 173 Pa | 1,500 rpm | 70 W | 59 dB(A) | 230 V | |
| LWDE-100S-MBN-10 | 324 m³/h | 927 Pa | 3,300 rpm | 85 W | 72 dB(A) | 230 V | View |
| LWDE-100 (4")U-PWN-01 | 410 m³/h | see curve | 3,350 rpm | 35 W | 52 dB(A) | 110-120 V | View |
| LWDE-100 (4")U-MWN-03 | 410 m³/h | see curve | 3,350 rpm | 35 W | 51 dB(A) | 110-120 V | View |
| LWDE-100 (4")S-PWN-02 | 697 m³/h | see curve | 3,350 rpm | 35 W | 52 dB(A) | 220-240 V | View |
| LWDE-100 (4")S-MWN-04 | 697 m³/h | see curve | 3,350 rpm | 35 W | 51 dB(A) | 220-240 V | View |
| LWCE-100380SN-06 | 800 m³/h | 106 Pa | 1,500 rpm | 32 W | 55 dB(A) | 230 V | View |
| LWCE-100520SN-06 | 1,100 m³/h | 145 Pa | 1,500 rpm | 55 W | 58 dB(A) | 230 V | View |
| LWCE-100720SN-06 | 1,530 m³/h | 201 Pa | 1,500 rpm | 75 W | 60 dB(A) | 230 V | View |
| LWCE-100820SN-06 | 1,735 m³/h | 229 Pa | 1,500 rpm | 80 W | 61 dB(A) | 230 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
