- ImpellerØ90 mm
- Max airflow640 m³/h
- Max static pressure74 Pa
- Voltage230 V
- Speed1,500 rpm
- Input power27 W
- Noise53 dB(A)
LWCE-90360SN-06 EC Cross Flow Fan Ø90 mm
Ø90 mm | EC | Max airflow 640 m³/h | Max static pressure 74 Pa | 53 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS

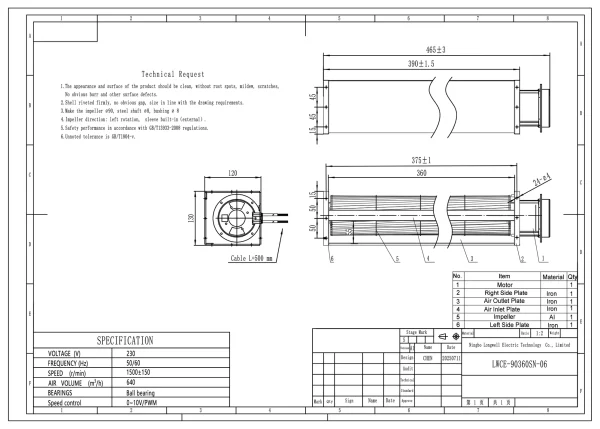

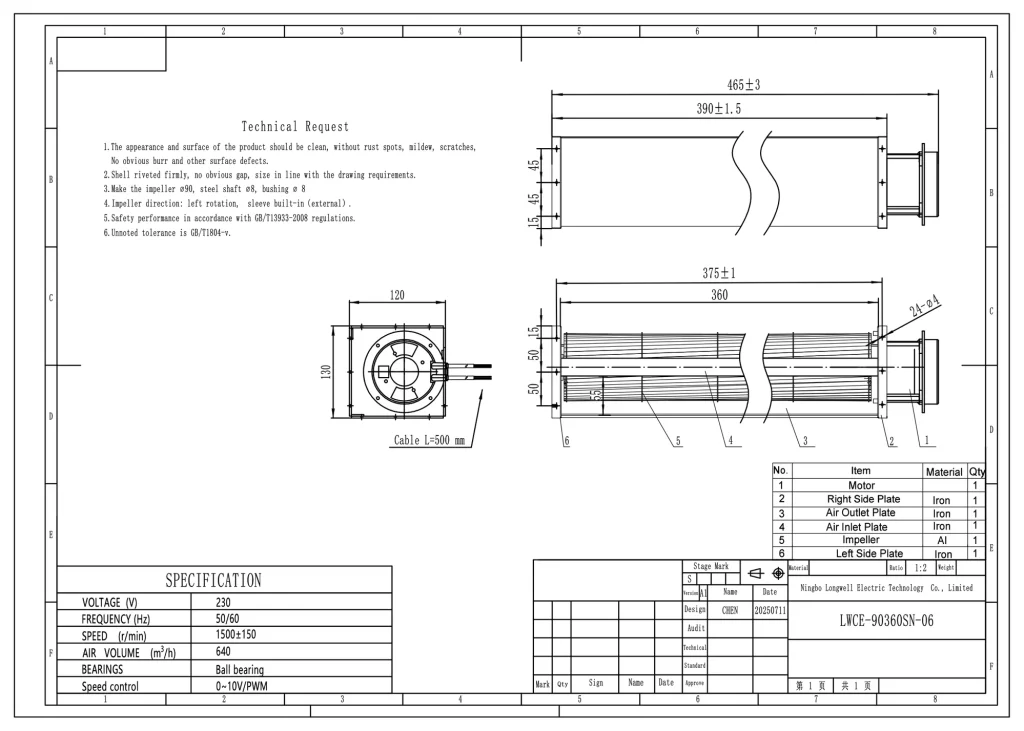

Engineering files (on request)
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

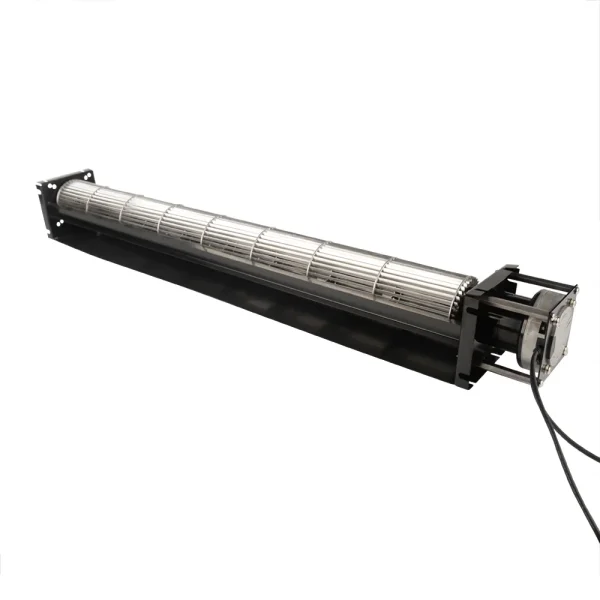

LWCE-90360SN-06 is a LONGWELL EC Cross Flow Fan from the EC Cross Flow Fans range, impeller Ø90 mm, rated 230 V EC, maximum airflow 640 m³/h, maximum static pressure 74 Pa, noise 53 dB(A), input power 27 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWCE-90360SN-06 |
|---|---|
| Series | LWCE90360 |
| Motor type | EC |
| Phase | 1-phase |
| Inlet | Single inlet |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Input power | 27 W |
| Speed | 1,500 rpm |
| Max. airflow | 640 m³/h |
| Max. static pressure | 74 Pa |
| Noise | 53 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Impeller diameter | Ø90 mm |
| Outlet length | 360mm |
| Impeller material | Aluminum alloy |
| Insulation class | B |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
Typical applications
- Indoor air-conditioning units
- Air curtains and door air barriers
- Elevator and cabinet ventilation
- Linear air supply in appliances
Series LWCE90360: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø90 mm · EC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWCE-90360SN-06 this model | 640 m³/h | 74 Pa | 1,500 rpm | 27 W | 53 dB(A) | 230 V | |
| LWCE-90520SN-06 | 850 m³/h | 107 Pa | 1,500 rpm | 40 W | 54 dB(A) | 230 V | View |
| LWCE-90680SN-06 | 1,050 m³/h | 132 Pa | 1,500 rpm | 60 W | 55 dB(A) | 230 V | View |
| LWCE-90800SN-06 | 1,300 m³/h | 164 Pa | 1,500 rpm | 64 W | 58 dB(A) | 230 V | View |
| LWCE-90930SN-06 | 1,584 m³/h | 191 Pa | 1,500 rpm | 68.7 W | 59 dB(A) | 230 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
