- ImpellerØ80 mm
- Max airflow880 m³/h
- Max static pressure82 Pa
- Voltage230 V
- Speed1,350 rpm
- Input power40 W
- Noise56 dB(A)
LWCA-80820SN-06 AC Cross Flow Fan Ø80 mm
Ø80 mm | AC | Max airflow 880 m³/h | Max static pressure 82 Pa | 56 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Engineering files (on request)

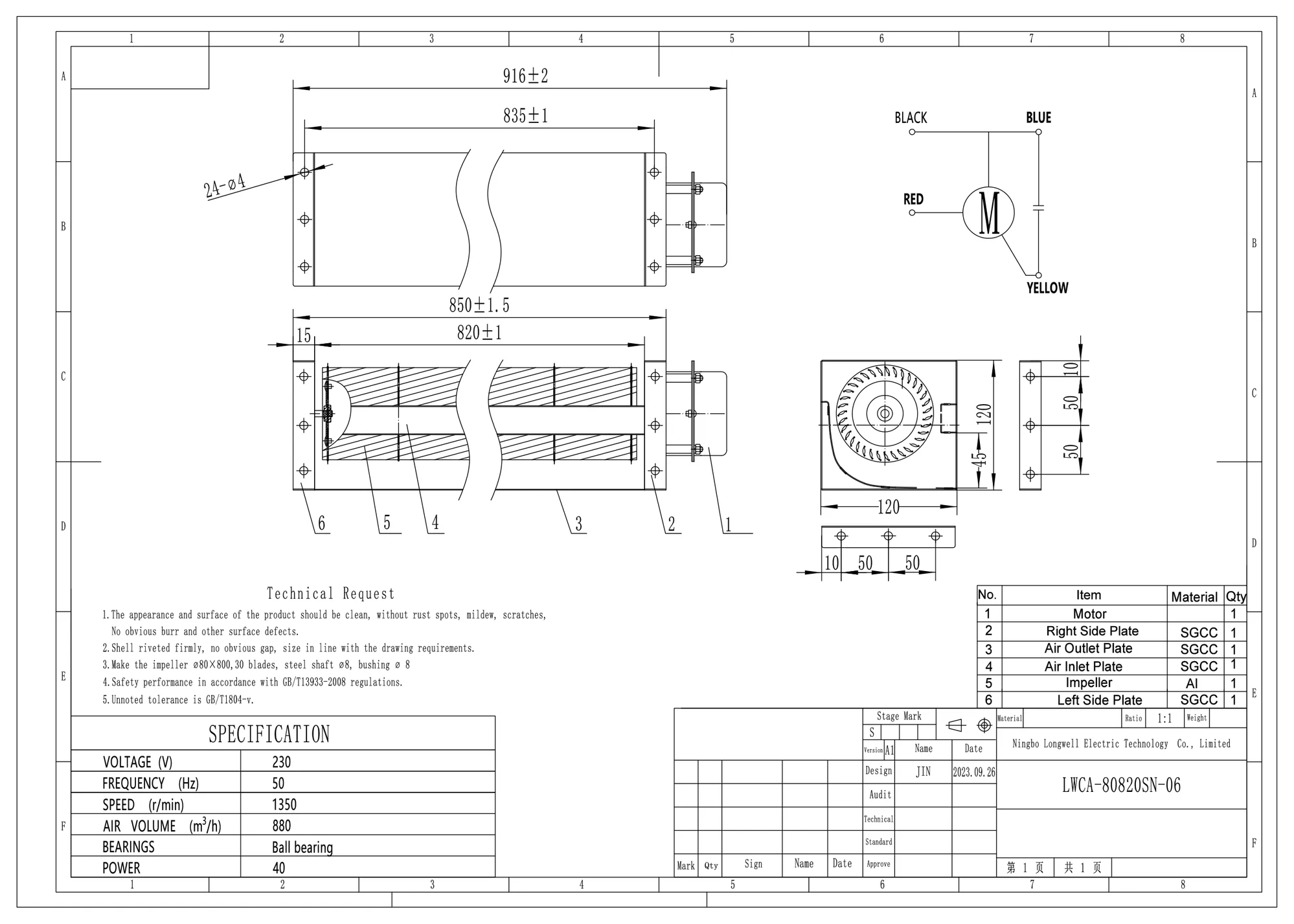

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.
LWCA-80820SN-06 is a LONGWELL AC Cross Flow Fan from the AC Cross Flow Fans range, impeller Ø80 mm, rated 230 V AC, maximum airflow 880 m³/h, maximum static pressure 82 Pa, noise 56 dB(A), input power 40 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWCA-80820SN-06 |
|---|---|
| Series | LWCA80820 |
| Motor type | AC |
| Phase | 1-phase |
| Inlet | Single inlet |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Input power | 40 W |
| Speed | 1,350 rpm |
| Max. airflow | 880 m³/h |
| Max. static pressure | 82 Pa |
| Noise | 56 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Impeller diameter | Ø80 mm |
| Outlet length | 820mm |
| Impeller material | Aluminum alloy |
| Insulation class | B/F/H |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
Typical applications
- Indoor air-conditioning units
- Air curtains and door air barriers
- Elevator and cabinet ventilation
- Linear air supply in appliances
Series LWCA80820: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø80 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWCA-80820SN-06 this model | 880 m³/h | 82 Pa | 1,350 rpm | 40 W | 56 dB(A) | 230 V | |
| LWCA-80350SN-06 | 360 m³/h | 36 Pa | 1,350 rpm | 28 W | 51 dB(A) | 230 V | View |
| LWCA-80520SN-06 | 580 m³/h | 53 Pa | 1,350 rpm | 32 W | 53 dB(A) | 230 V | View |
| LWCA-80620SN-06 | 700 m³/h | 63 Pa | 1,350 rpm | 35 W | 54 dB(A) | 230 V | View |
| LWCA-80720SN-06 | 780 m³/h | 73 Pa | 1,350 rpm | 38 W | 55 dB(A) | 230 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
