ImpellerØ80 mm3.1 in
Max airflow780 m³/h459 CFM
Max static pressure73 Pa0.29 in. wg
Voltage230 V
Speed1,350 rpm
Input power38 W
Noise55 dB(A)

LWCA-80720SN-06 AC Cross Flow Fan Ø80 mm

Ø80 mm | AC | Max airflow 780 m³/h | Max static pressure 73 Pa | 55 dB(A)

SKU: LWCA-80720SN-06 Categories: AC Cross Flow Fans, Cross Flow Fans, Impeller Ø60–150 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueCross FLow Fan · SKU on PDF p. 35

All files for LWCA-80720SN-066 files · direct download

PDFFull product catalogue · model on PDF p. 35 WEBPDimensional drawing WEBPPerformance curve WEBPWiring diagram PDFDrawing

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Air curtains Air heaters Dry-type transformer cooling Electric heaters All industries →

Proven in projects

Air curtain OEM programme Trench convector & heating terminals Consumer air cooler & fan ODM All case studies →

Engineering files (on request)

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.

CAD models contain the blade geometry and are not publicly downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

Get a quote · LWCA-80720SN-06

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWCA-80720SN-06datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Drawing, Curve & Wiring LWCA-80720SN-06

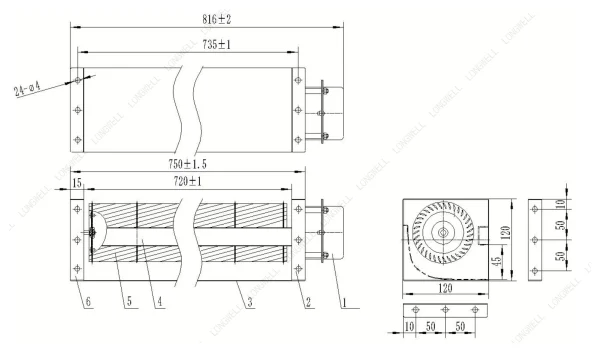

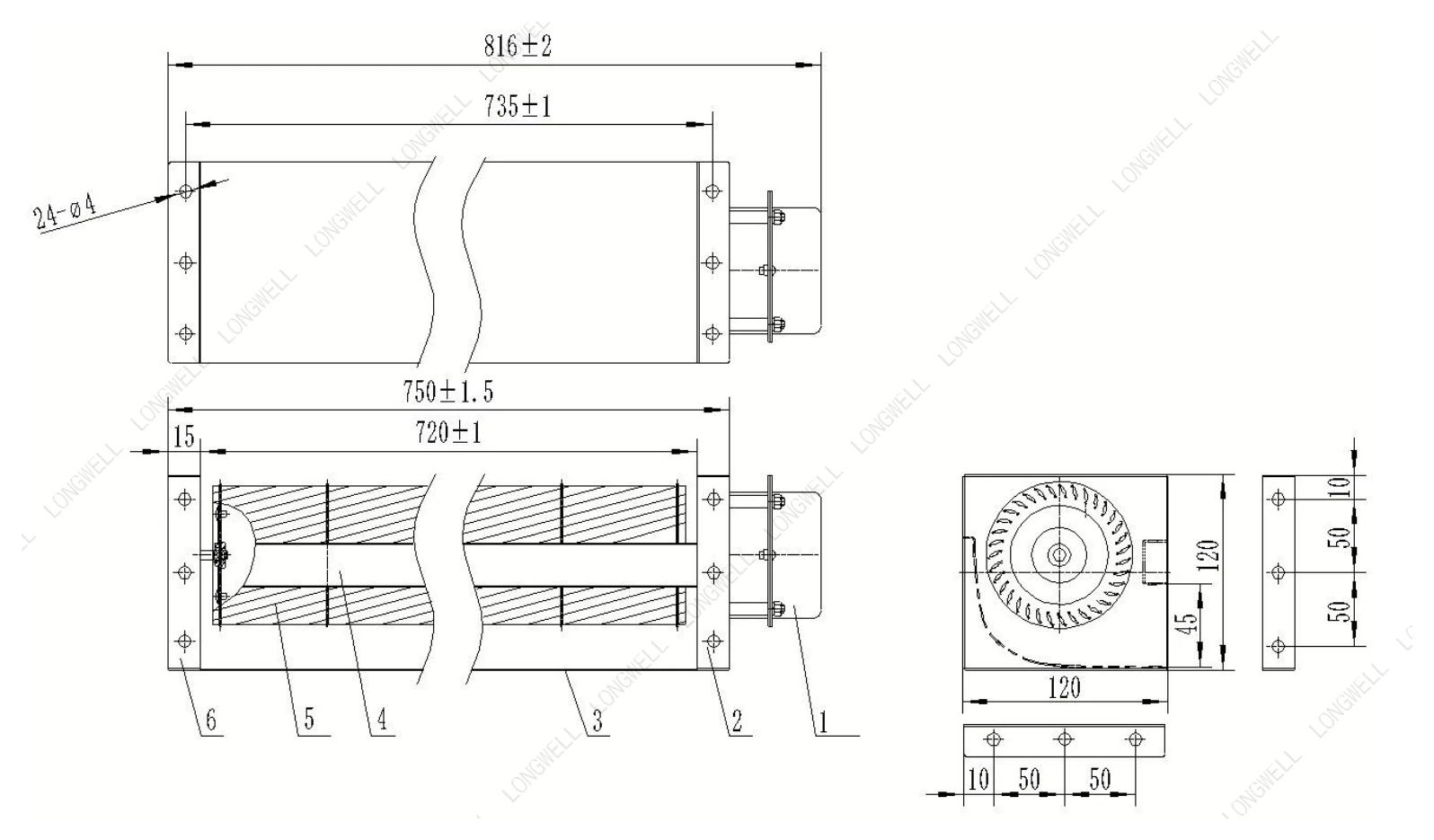

LWCA-80720SN-06 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

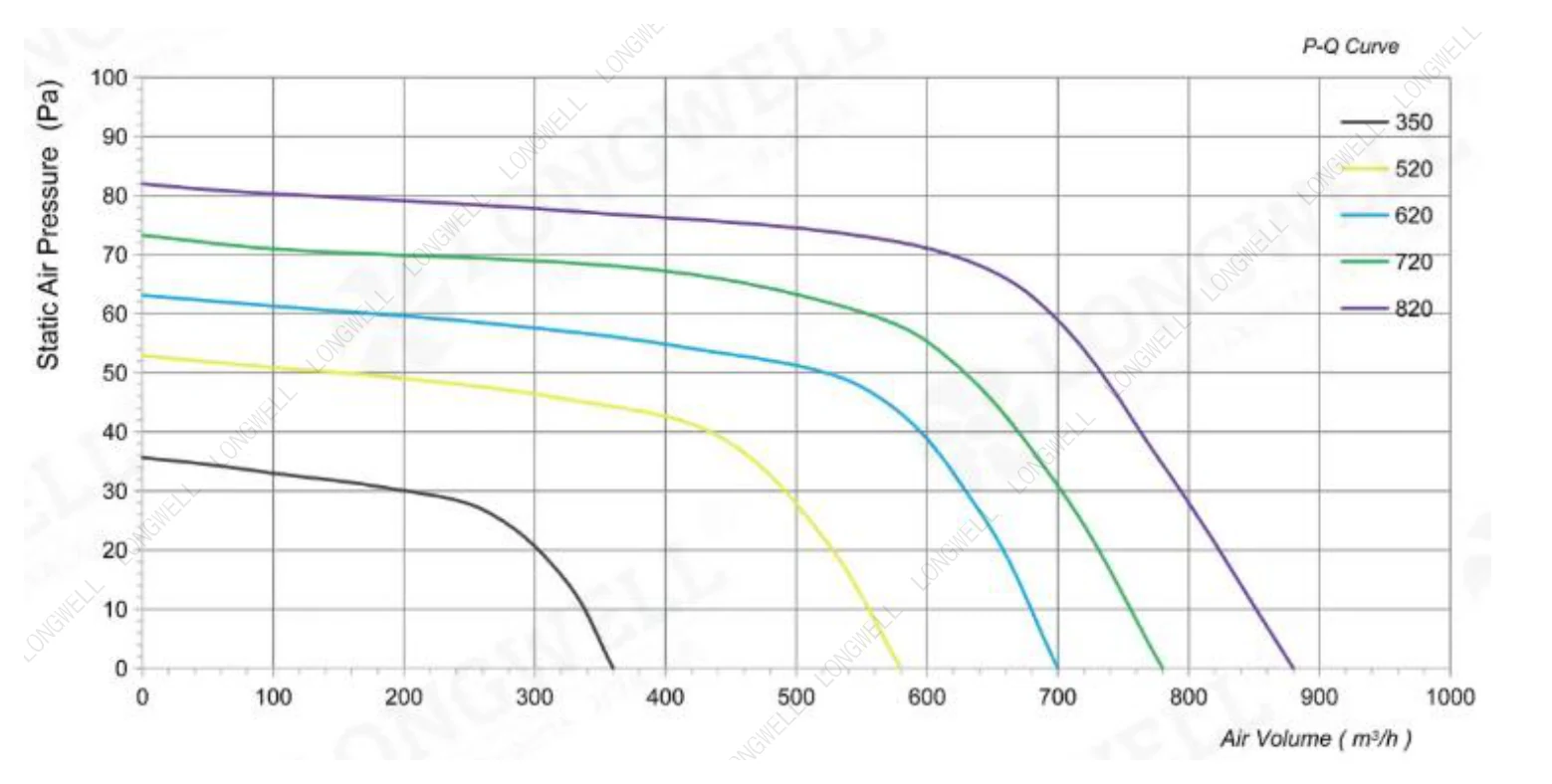

LWCA-80720SN-06 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

LWCA-80720SN-06 Wiring diagram — **Wiring diagram**Lead colours and terminal assignment; TK = motor thermal contact.

Files for LWCA-80720SN-06: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWCA-80720SN-06

LWCA-80720SN-06 is a LONGWELL AC Cross Flow Fan from the AC Cross Flow Fans range, impeller Ø80 mm, rated 230 V AC, maximum airflow 780 m³/h, maximum static pressure 73 Pa, noise 55 dB(A), input power 38 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWCA-80720SN-06
Series	LWCA80720
Motor type	AC
Phase	1-phase
Inlet	Single inlet
Rated voltage	230 V
Frequency	50 Hz
Input power	38 W
Speed	1,350 rpm
Max. airflow	780 m³/h
Max. airflow (CFM)	459 CFM
Max. static pressure	73 Pa
Noise	55 dB(A)
Ambient temperature	-25 ~ 60 °C
Storage temperature	-30~60℃
Humidity	0 ~ 90 % RH
Impeller diameter	Ø80 mm
Outlet length	720mm
Impeller material	Aluminium ( Impeller ); cold-rolled sheet (frame) Life expectancy: 30,000Hours(L10), At 25 °Croom, humidity 30%~90%RH Service environment : Operating temperature: -30~60 °C; Operating humidity: 0 ~ 90 % RH Storing temperature: -30~
Insulation class	B/F/H
Bearing	Maintenance-free ball bearings
Duty	S1

Typical applications

Indoor air-conditioning units
Air curtains and door air barriers
Elevator and cabinet ventilation
Linear air supply in appliances

Series LWCA80720: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
