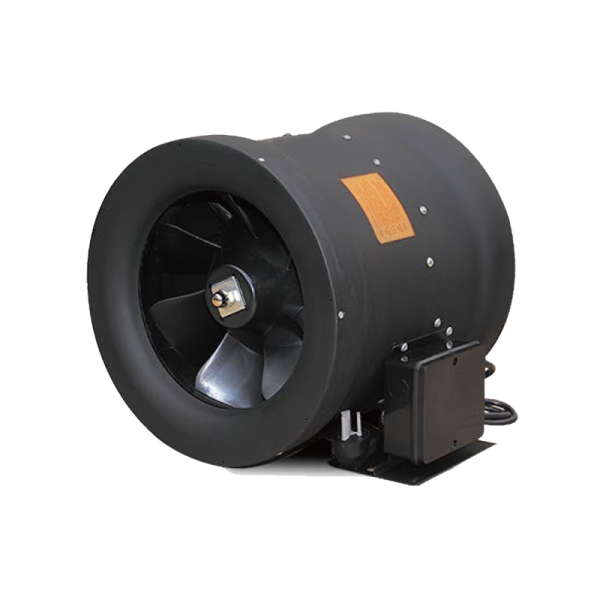

LWDA-250 (10")S-MWN-02 product photo
  • ImpellerØ250 mm
  • Max airflow1,900 m³/h
  • Voltage220-240 V
  • Speed2,750 rpm
  • Input power162 W
  • Noise68 dB(A)

LWDA-250 (10″)S-MWN-02 AC Mixed Flow Fan Ø250 mm

Ø250 mm | AC | Max airflow 1,900 m³/h | 68 dB(A)

SKU: LWDA-250 (10")S-MWN-02 Categories: , ,
  • Factory direct
  • OEM / ODM
  • Samples in 1–3 days
  • Production 15–30 days
  • 18-month warranty
  • CE · ETL · RoHS
View RFQ →

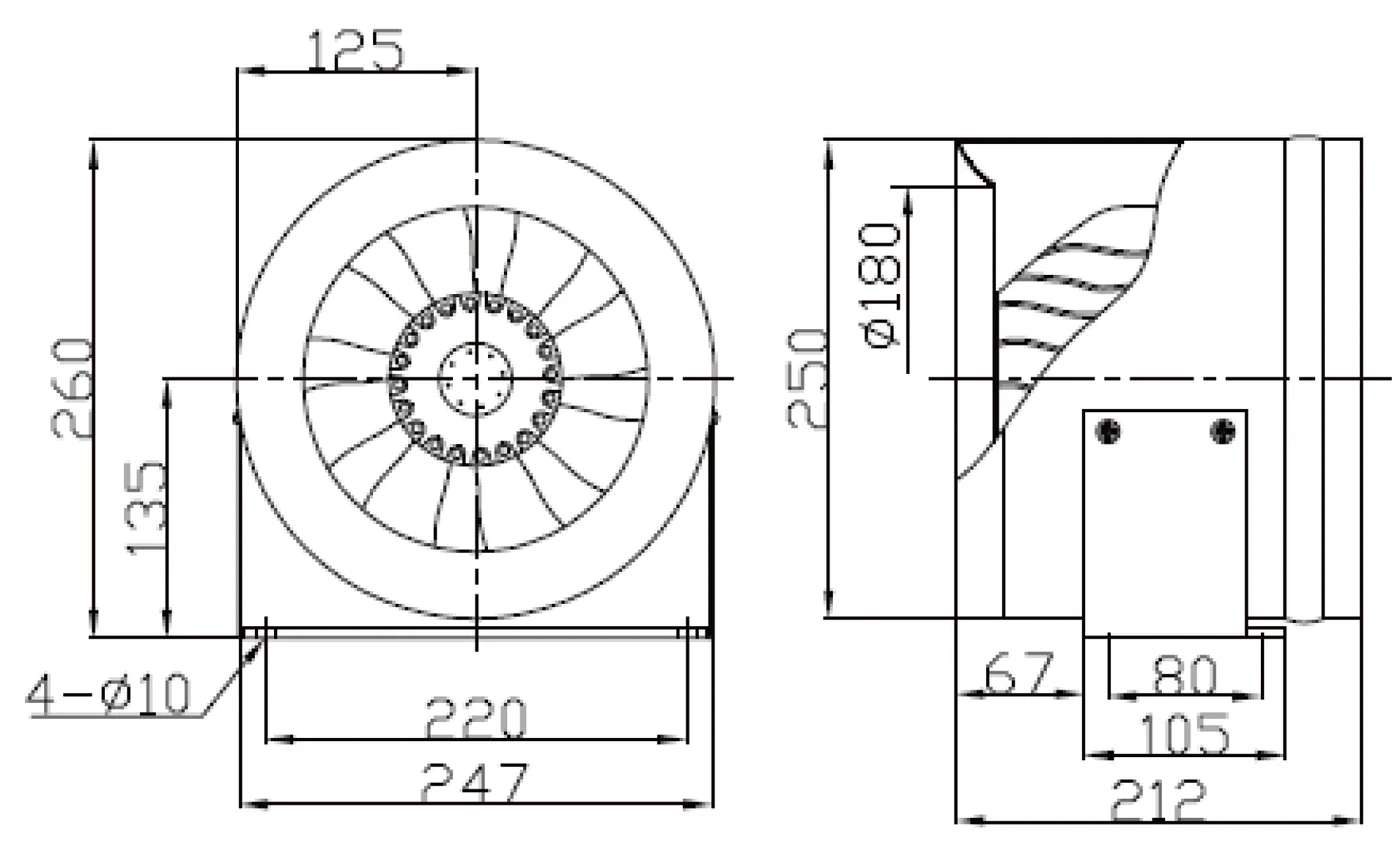

Dimensional drawingDimensions in mm. Confirm against the final approval drawing before machining cut-outs.
LWDA-250 (10")S-MWN-02 Dimensional drawing

Need a non-standard size or another format? Ask an engineer or search the download center.

LWDA-250 (10")S-MWN-02 is a LONGWELL AC Mixed Flow Fan from the Mixed Flow Fans range, impeller Ø250 mm, rated 220-240 V AC, maximum airflow 1,900 m³/h, noise 68 dB(A), input power 162 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model LWDA-250 (10")S-MWN-02
Series LWDA250
Motor type AC
Phase 1-phase
Rated voltage 220-240 V
Frequency 50 Hz
Input power 162 W
Speed 2,750 rpm
Max. airflow 1,900 m³/h
Noise 68 dB(A)
Impeller diameter Ø250 mm
Inlet diameter 250mm

Typical applications

  • Residential and commercial fresh-air systems
  • Kitchen and bathroom exhaust
  • Local pressurisation and booster duty
  • Hotel and office ventilation

Series LWDA250: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø250 mm · AC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

ModelMax airflowMax static pressureSpeedPowerNoiseVoltage
LWDA-250 (10")S-MWN-02 this model 1,900 m³/hsee curve 2,750 rpm162 W68 dB(A)220-240 V
LWA-250(10")U(S)M-01 28 m³/hsee curve 1,350 rpm80 W—110-120 V View
LWA-250(10")U(S)M-02 48 m³/hsee curve 2,800 rpm230 W—110-120 V View
LWDA-250S-MBN-10 1,034 m³/h515 Pa 2,615 rpm165 W71 dB(A)230 V View
LWDA-250 (10")U-MWN-01 1,219 m³/hsee curve 3,000 rpm228 W69 dB(A)110-120 V View
LWDA-250 (10")U-MWN-03 1,219 m³/hsee curve 3,000 rpm228 W62 dB(A)110-120 V View

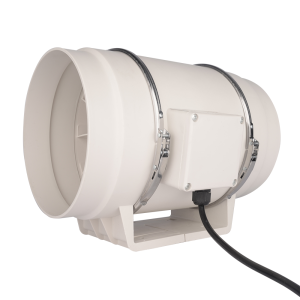

LWDA-250(8'')S-PWN-05 1,600 m³/h420 Pa 2,500 rpm175 W50 dB(A)230 V View
LWFA6E250-102NS-04 1,751 m³/h164.8 Pa 900 rpm320 W62 dB(A)220 V View
LWFA6D250-102NT-03 1,751 m³/h164.8 Pa 910 rpm320 W62 dB(A)380 V View
LWDA-250 (10")S-MWN-04 1,900 m³/hsee curve 2,750 rpm162 W60 dB(A)220-240 V View
LWFA-E-250-02 2,100 m³/h215 Pa ——64 dB(A)— View
LWA-250(10")U(S)M-03 2,100 m³/h215 Pa 2,800 rpm250 W—110-120 V View
LWDA-250(10")S-MWN-06 2,100 m³/h215 Pa 2,800 rpm100 W65 dB(A)220 V View
LWFA-E-250-01 2,500 m³/h380 Pa ——70 dB(A)— View
LWFA4E250-138NS-02 2,575 m³/h401.7 Pa 1,330 rpm900 W72 dB(A)220 V View

Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.

Related products

Other models in the LWDA250 seriesSame impeller, different speed grade or wiring

LWDA-250S-MBN-10 product photoLWDA-250S-MBN-10Ø250 mm · 1,034 m³/h · 515 Pa · ACsame seriesLWDA-250 (10")U-MWN-03 product photoLWDA-250 (10")U-MWN-03Ø250 mm · 1,219 m³/h · ACsame seriesLWDA-250 (10")S-MWN-04 product photoLWDA-250 (10")S-MWN-04Ø250 mm · 1,900 m³/h · ACsame seriesLWDA-250 (10")U-MWN-01 product photoLWDA-250 (10")U-MWN-01Ø250 mm · 1,219 m³/h · ACsame seriesLWDA-250(8'')S-PWN-05 product photoLWDA-250(8'')S-PWN-05Ø250 mm · 1,600 m³/h · 420 Pa · ACsame seriesLONGWELL product videoLWDA-250(10")S-MWN-06Ø250 mm · 2,100 m³/h · 215 Pa · ACsame series

Adjacent sizesOne size up when airflow is short, one size down when it is too much

LWDE-400 (16")S-MWN-04 product photoLWDE-200 (8")S-MWN-04Ø200 mm · 1,310 m³/h · ECadjacent sizeImpeller Ø100–200 mmLWDE-200 (8")S-MWN-02Ø200 mm · 1,310 m³/h · ECadjacent sizeLWDE-300 (12")S-MWN-02 product photoLWDE-300 (12")U-MWN-01Ø300 mm · 1,763 m³/h · ECadjacent sizeLWDE-300 (12")S-MWN-02 product photoLWDE-300 (12")S-MWN-02Ø300 mm · 3,500 m³/h · ECadjacent sizeLWDA-200(8")S-PWN-09 product photoLWDA-200(8")S-PWN-09Ø200 mm · 910 m³/h · 384 Pa · ACadjacent sizeLWDA-300 (12")S-MWN-04 product photoLWDA-300 (12")S-MWN-04Ø300 mm · 3,150 m³/h · ACadjacent size

Alternatives at a similar dutySimilar airflow, different construction or motor platform

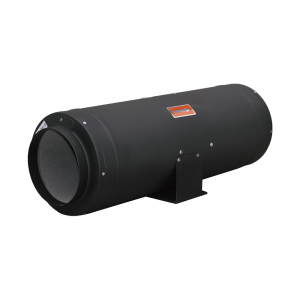

LWCD-120780MN-06 product photoLWCD-120780MN-06Ø120 mm · 1,900 m³/h · 140 Pa · DCsimilar dutyLWCE-120780SN-06 product photoLWCE-120780SN-06Ø120 mm · 1,900 m³/h · 141 Pa · ECsimilar dutyLWDA-300 (12")U-MWN-03 product photoLWDA-300 (12")U-MWN-03Ø300 mm · 1,900 m³/h · ACsimilar dutyLWDA-300 (12")U-MWN-01 product photoLWDA-300 (12")U-MWN-01Ø300 mm · 1,900 m³/h · ACsimilar dutyLWAE3G300SS-5PEW-12 product photoLWAE3G300SS-5PEW-12Ø300 mm · 1,906 m³/h · 118 Pa · ECsimilar duty
