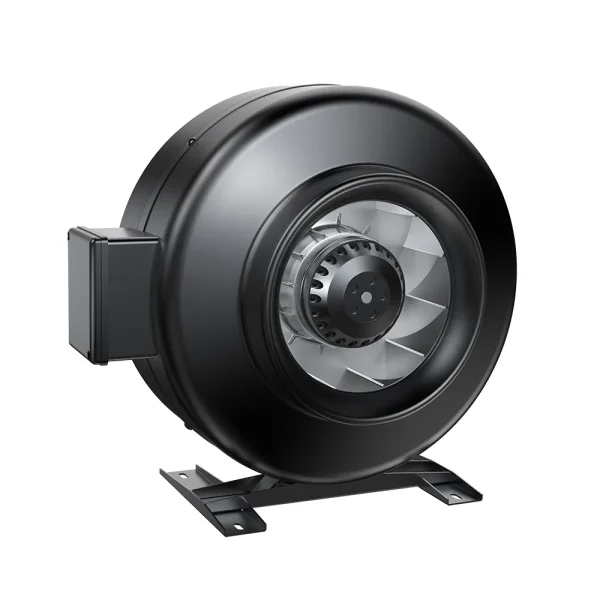

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.
- ImpellerØ250 mm9.8 in
- Max airflow1,034 m³/h615 CFM
- Max static pressure515 Pa2.07 in. wg
- Voltage230 V
- Speed2,615 rpm
- Input power165 W
- Noise71 dB(A)
LWDA-250S-MBN-10 AC Metal Inline Duct Fan Ø250 mm
Ø250 mm | AC | Max airflow 1,034 m³/h | Max static pressure 515 Pa | 71 dB(A)
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

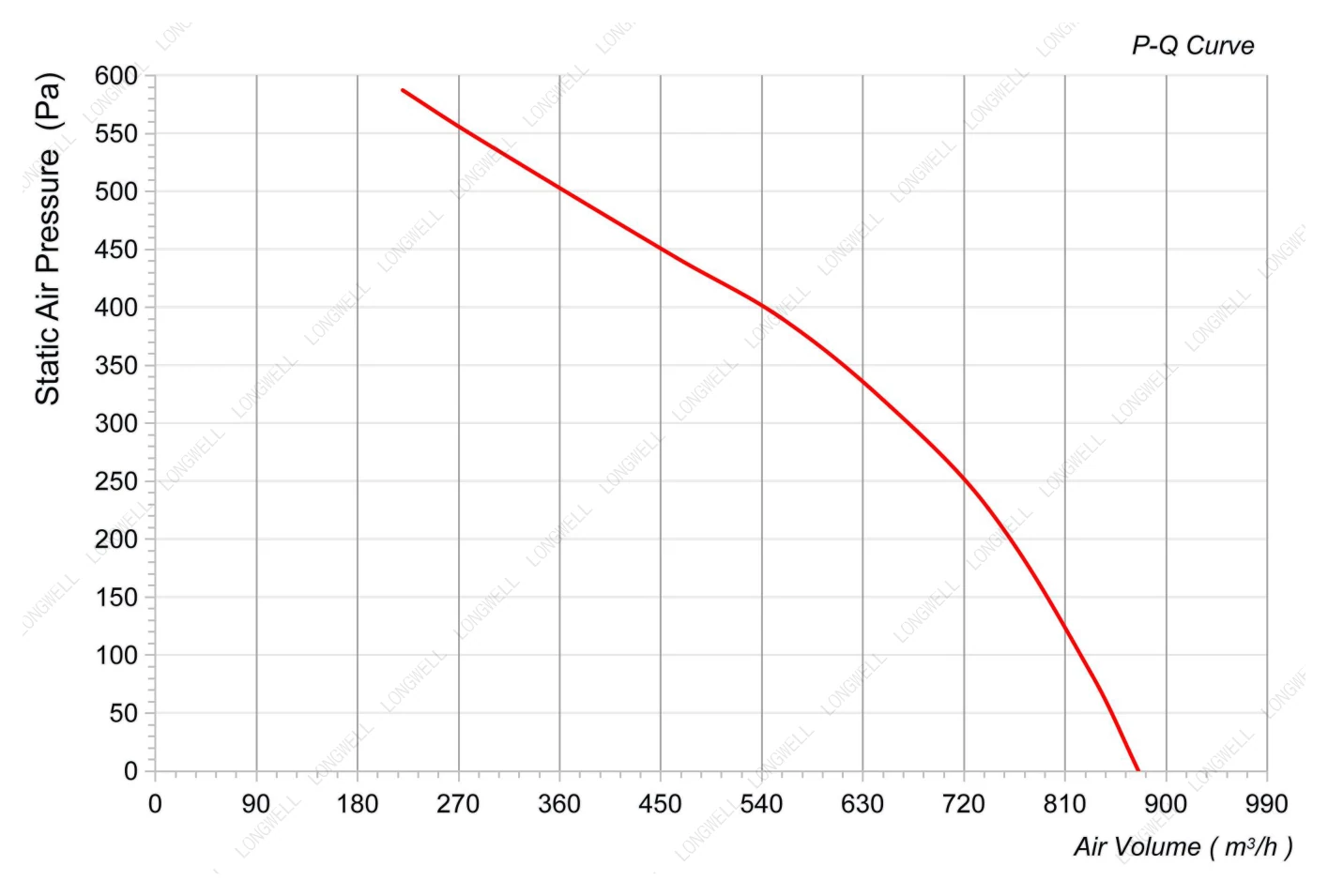

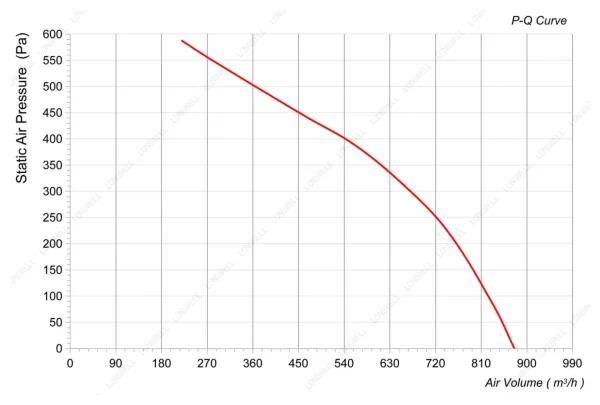

Performance curve (P-Q) LWDA-250S-MBN-10
Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 230 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
Video LWDA-250S-MBN-10
LWDA-250S-MBN-10 — construction, airflow path and running condition.
LWDA-250 Fan Test | LWDA-250(10″)S-MWN-06 · open in video library

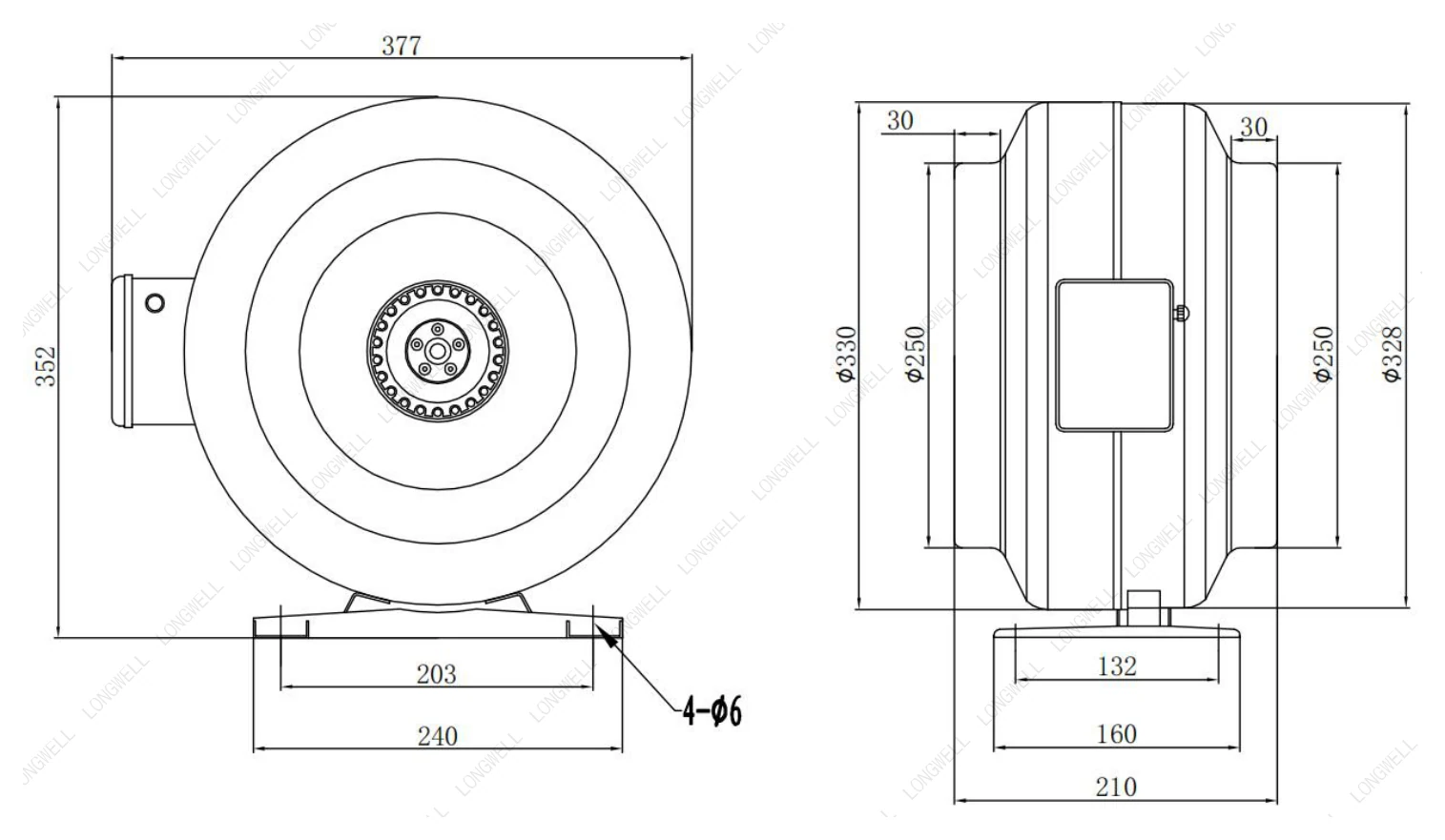

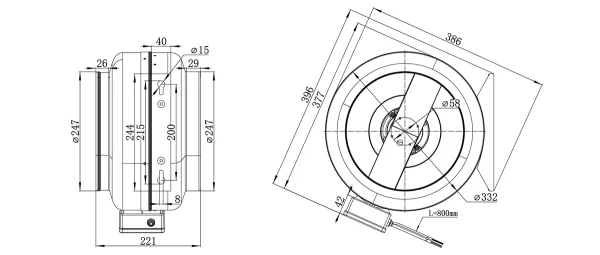

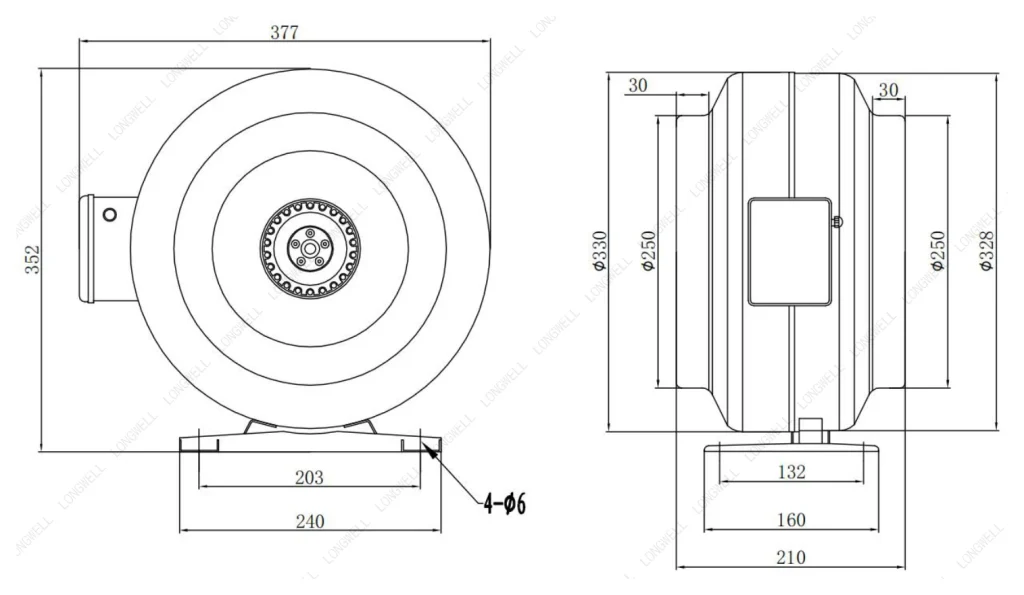

Drawing & Curve LWDA-250S-MBN-10
Files for LWDA-250S-MBN-10: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWDA-250S-MBN-10
LWDA-250S-MBN-10 is a LONGWELL AC Metal Inline Duct Fan from the Metal Inline Duct Fans range, impeller Ø250 mm, rated 230 V AC, maximum airflow 1,034 m³/h, maximum static pressure 515 Pa, noise 71 dB(A), input power 165 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWDA-250S-MBN-10 |
|---|---|
| Series | LWDA250 |
| Motor type | AC |
| Phase | 1-phase |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Input power | 165 W |
| Speed | 2,615 rpm |
| Max. airflow | 1,034 m³/h |
| Max. airflow (CFM) | 615 CFM |
| Max. static pressure | 515 Pa |
| Noise | 71 dB(A) |
| Ambient temperature | -25 ~ + 60 °C |
| Storage temperature | -25 ~ 60℃ |
| Humidity | 15 ~ 85% RH |
| Altitude | < 1000m |
| Impeller diameter | Ø250 mm |
| Inlet diameter | 250mm |
| Impeller material | PA6+GF ( Impeller ) NGWELL NGWELL NGWELL LONGWE LONGWE LONGWE Version number : A0 NINGBO LONGWELL ELECTRIC TECHNOLOGY CO.,LTD . Phone: 0086 574 6218 9863 FAX : 0086 574 6218 9863 www.longwellfans.com sales@zjlongwell.com |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 40,000Hours(L10), At 25 °Croom, humidity 15%~65%RH |
Typical applications
- Residential and commercial fresh-air systems
- Kitchen and bathroom exhaust
- Local pressurisation and booster duty
- Hotel and office ventilation
Series LWDA250: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
