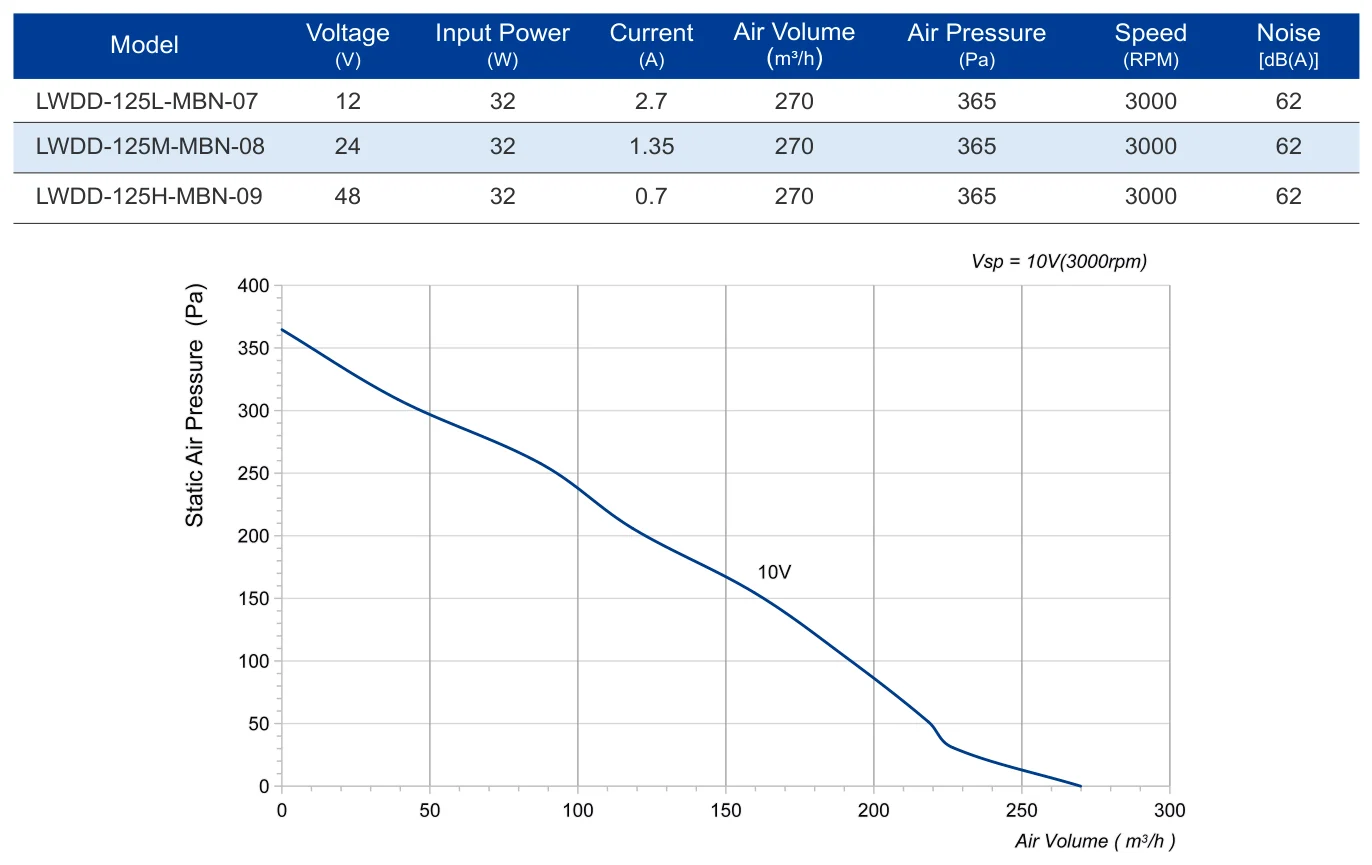

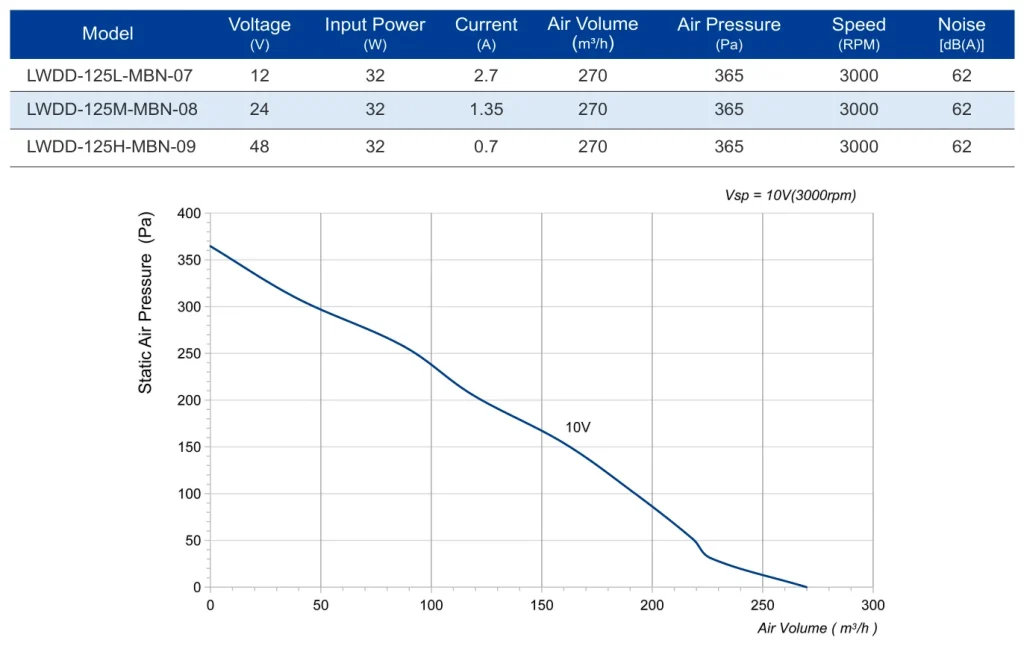

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ125 mm
- Max airflow270 m³/h
- Max static pressure365 Pa
- Voltage12 V
- Speed3,000 rpm
- Input power32 W
- Noise62 dB(A)

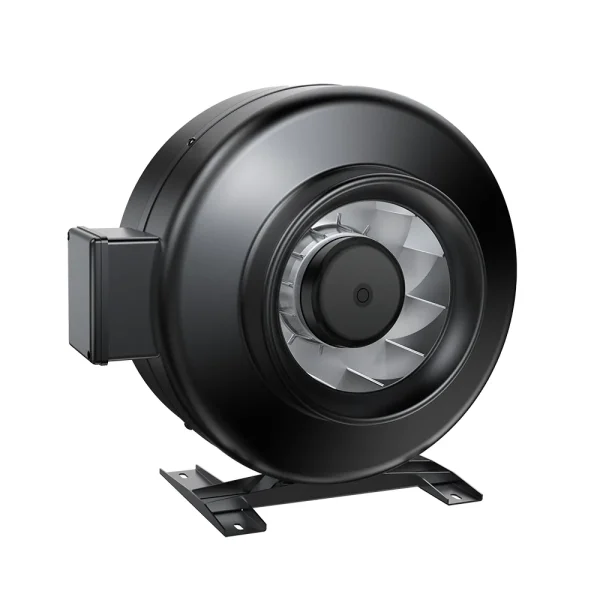

LWDD-125L-MBN-07 DC Metal Inline Duct Fan Ø125 mm
Ø125 mm | DC | Max airflow 270 m³/h | Max static pressure 365 Pa | 62 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Downloads for LWDD-125L-MBN-07
PDFDatasheet · 563 KBNeed a non-standard size or another format? Ask an engineer or search the download center.
LWDD-125L-MBN-07 is a LONGWELL DC Metal Inline Duct Fan from the Metal Inline Duct Fans range, impeller Ø125 mm, rated 12 V DC, maximum airflow 270 m³/h, maximum static pressure 365 Pa, noise 62 dB(A), input power 32 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.
Technical data
| Model | LWDD-125L-MBN-07 |
|---|---|
| Series | LWDD125 |
| Motor type | DC |
| Rated voltage | 12 V |
| Current | 2.7 A |
| Input power | 32 W |
| Speed | 3,000 rpm |
| Max. airflow | 270 m³/h |
| Max. static pressure | 365 Pa |
| Noise | 62 dB(A) |
| Impeller diameter | Ø125 mm |
| Inlet diameter | 125mm |
| Impeller material | Plastic |
Typical applications
- Residential and commercial fresh-air systems
- Kitchen and bathroom exhaust
- Local pressurisation and booster duty
- Hotel and office ventilation
Series LWDD125: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø125 mm · DC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWDD-125L-MBN-07 this model | 270 m³/h | 365 Pa | 3,000 rpm | 32 W | 62 dB(A) | 12 V | |
| LWDD-125H-MBN-09 | 270 m³/h | 365 Pa | 3,000 rpm | 32 W | 62 dB(A) | 48 V | View |
| LWDD-125M-MBN-08 | 270 m³/h | 365 Pa | 3,000 rpm | 32 W | 62 dB(A) | 24 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
