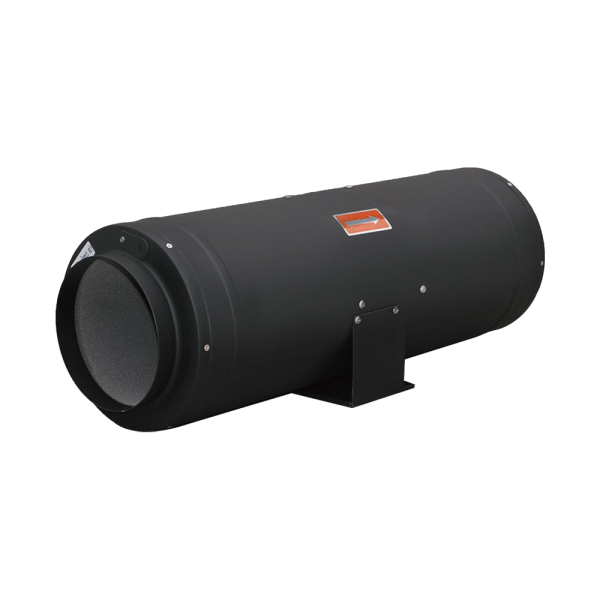

LWDA-100 (4")U-MWN-03 product photo
  • ImpellerØ100 mm3.9 in
  • Max airflow410 m³/h241 CFM
  • Voltage110-120 V
  • Speed3,350 rpm
  • Input power41 W
  • Noise51 dB(A)

LWDA-100 (4″)U-MWN-03 AC Ultra Silent Metal Duct Fan Ø100 mm

Ø100 mm | AC | Max airflow 410 m³/h | 51 dB(A)

SKU: LWDA-100 (4")U-MWN-03 Categories: , ,
  • Direct from LONGWELL
  • OEM / ODM
  • Samples in 1–3 days
  • Production 15–30 days
  • 12-month warranty
  • CE · RoHS · ETL on request
PDFRequest datasheetsent by an engineer within 1 business day
All files for LWDA-100 (4")U-MWN-031 files · direct download
WEBPDimensional drawing

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in
Central ventilation unitsBuilding & agricultural ventilationVertical farmingAll industries →
Proven in projects
Smart home ERVRange hoods, ovens & fan coilsDrying, heat treatment & ovensAll case studies →
View RFQ →

Video LWDA-100 (4")U-MWN-03

Powerful & Quiet: The Reliable Choice – Longwell Duct Fan | LWDA-100(4″)S-PWN-14 · open in video library

Longwell AC Plastic Duct Fan, Breathe Fresh Vitality into Your Space | LWDA-100(4)S-PWN-18 · open in video library

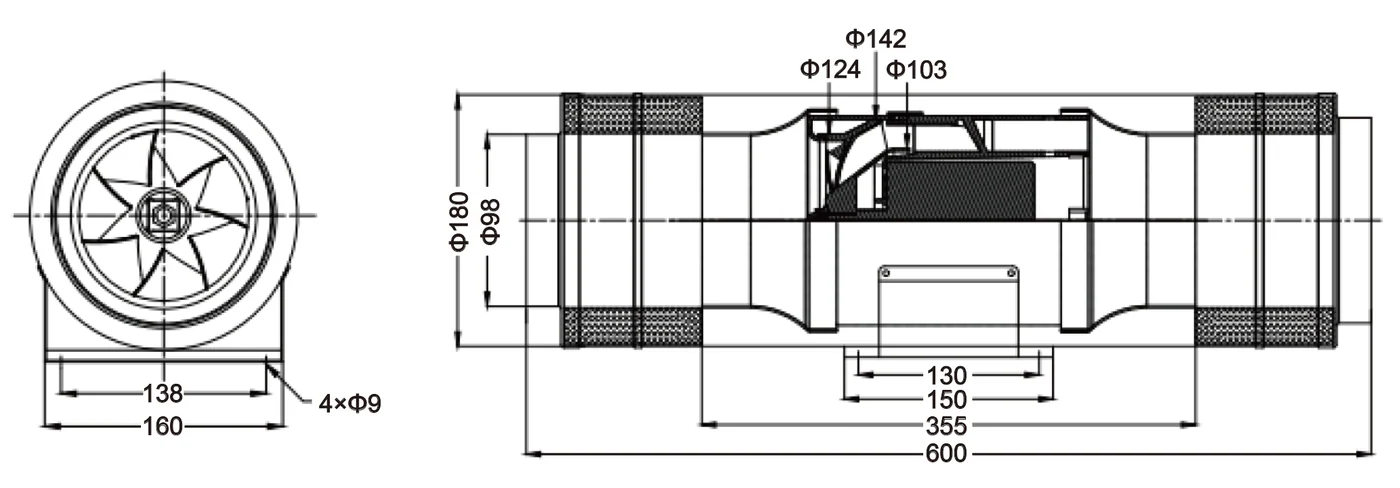

Dimensional drawing LWDA-100 (4")U-MWN-03

Dimensional drawingDimensions in mm. Confirm against the final approval drawing before machining cut-outs.
LWDA-100 (4")U-MWN-03 Dimensional drawing

Files for LWDA-100 (4")U-MWN-03: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWDA-100 (4")U-MWN-03

LWDA-100 (4")U-MWN-03 is a LONGWELL AC Ultra Silent Metal Duct Fan from the Ultra Silent Duct Fans range, impeller Ø100 mm, rated 110-120 V AC, maximum airflow 410 m³/h, noise 51 dB(A), input power 41 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model LWDA-100 (4")U-MWN-03
Series LWDA100
Motor type AC
Phase 1-phase
Rated voltage 110-120 V
Frequency 60 Hz
Input power 41 W
Speed 3,350 rpm
Max. airflow 410 m³/h
Noise 51 dB(A)
Impeller diameter Ø100 mm
Inlet diameter 100mm

Typical applications

  • Residential and commercial fresh-air systems
  • Kitchen and bathroom exhaust
  • Local pressurisation and booster duty
  • Hotel and office ventilation

Series LWDA100: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Company certificates

Scans of original documents held by Ningbo Longwell Electric Technology Co., Ltd.: the company ISO 9001 / 14001 / 45001 management-system certificate. Click a scan to open the original.

ISO 9001 / 14001 / 45001Management systems of Ningbo Longwell Electric Technology Co., Ltd. (company certificate).

ISO 9001 / 14001 / 45001 management system certificate — LONGWELL certificatePDFISO 9001 / 14001 / 45001 management system certificate

Need a Declaration of Conformity for this model and your destination market? Ask us — we arrange additional certification on request.
