LWDD series performance curve (shared by several models)

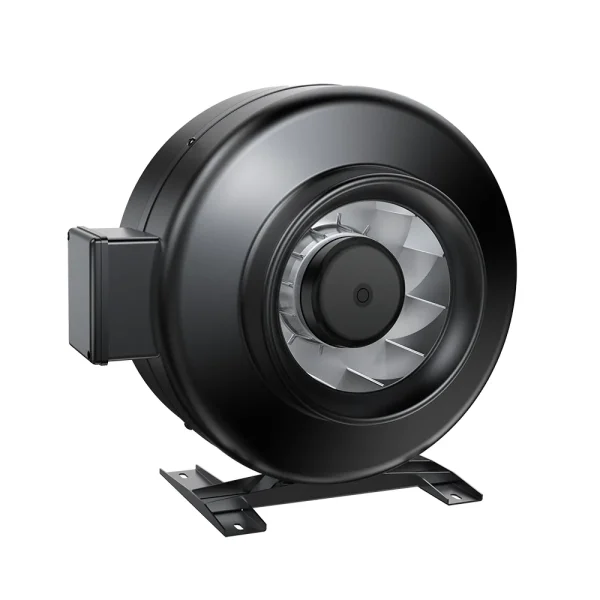

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.

ImpellerØ125 mm4.9 in
Max airflow270 m³/h159 CFM
Max static pressure365 Pa1.47 in. wg
Voltage24 V
Speed3,000 rpm
Input power32 W
Noise62 dB(A)

LWDD-125M-MBN-08 DC Metal Inline Duct Fan Ø125 mm

Ø125 mm | DC | Max airflow 270 m³/h | Max static pressure 365 Pa | 62 dB(A)

SKU: LWDD-125M-MBN-08 Categories: Impeller Ø100–150 mm, Inline Duct Fans, Metal Inline Duct Fans

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueAC&DC&EC AC&DC&EC Metal duct fans · SKU on PDF p. 20

All files for LWDD-125M-MBN-085 files · direct download

PDFFull product catalogue · model on PDF p. 20 WEBPDimensional drawing WEBPPerformance curve WEBPWiring diagram

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Building & agricultural ventilation Vertical farming All industries →

Proven in projects

Smart home ERV Range hoods, ovens & fan coils Drying, heat treatment & ovens All case studies →

Get a quote · LWDD-125M-MBN-08

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWDD-125M-MBN-08datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Performance curve (P-Q) LWDD-125M-MBN-08

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 24 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

Drawing, Curve & Wiring LWDD-125M-MBN-08

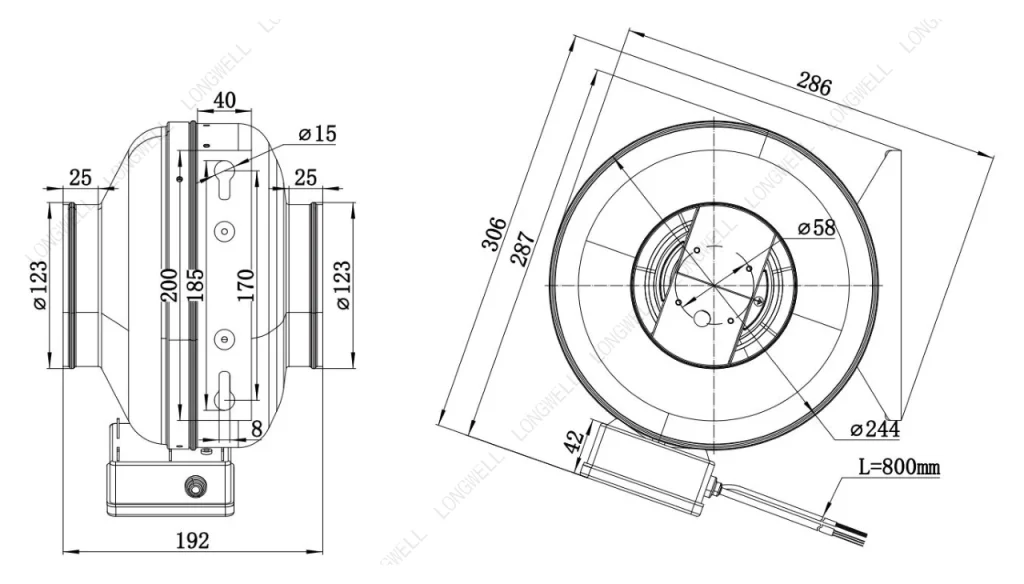

LWDD-125M-MBN-08 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

LWDD-125M-MBN-08 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

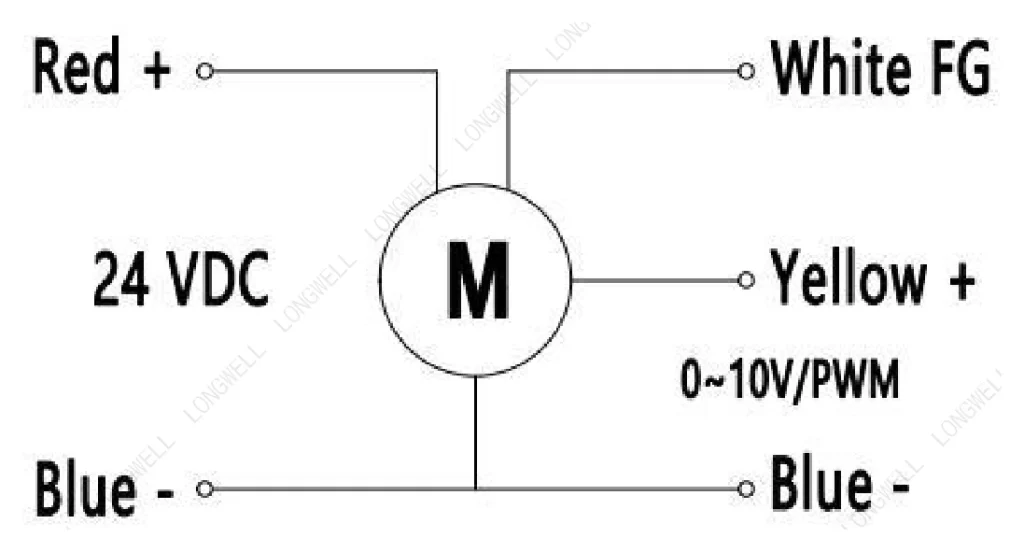

LWDD-125M-MBN-08 Wiring diagram — **Wiring diagram**Lead colours and terminal assignment; TK = motor thermal contact.

Files for LWDD-125M-MBN-08: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWDD-125M-MBN-08

LWDD-125M-MBN-08 is a LONGWELL DC Metal Inline Duct Fan from the Metal Inline Duct Fans range, impeller Ø125 mm, rated 24 V DC, maximum airflow 270 m³/h, maximum static pressure 365 Pa, noise 62 dB(A), input power 32 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model	LWDD-125M-MBN-08
Series	LWDD125
Motor type	DC
Rated voltage	24 V
Current	1.35 A
Input power	32 W
Speed	3,000 rpm
Max. airflow	270 m³/h
Max. static pressure	365 Pa
Noise	62 dB(A)
Storage temperature	-25 ~ 70℃
Humidity	0 ~ 85% RH
Altitude	< 1000m
Impeller diameter	Ø125 mm
Inlet diameter	125mm
Impeller material	PA6+GF ( Impeller )
Bearing	Maintenance-free deep groove ball bearings
Balance grade	G6.3
Vibration standard	JB/T 8689
Service life	25,000Hours(L10), At 40 °Croom, humidity 15%~65%RH

Typical applications

Residential and commercial fresh-air systems
Kitchen and bathroom exhaust
Local pressurisation and booster duty
Hotel and office ventilation

Series LWDD125: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
