LWDD series dimensional drawing (shared by several models)

LWDD series performance curve (shared by several models)

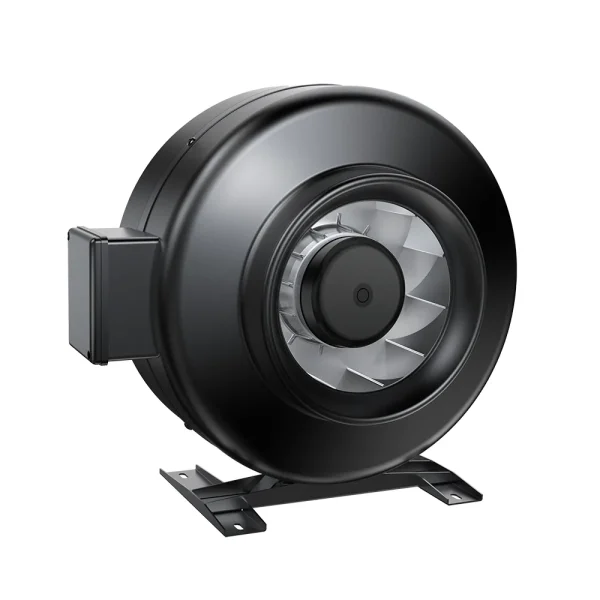

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.

ImpellerØ250 mm9.8 in
Max airflow1,236 m³/h727 CFM
Max static pressure577 Pa2.32 in. wg
Voltage24 V
Speed2,638 rpm
Input power130 W
Noise72 dB(A)

LWDD-250M-MBN-08 DC Metal Inline Duct Fan Ø250 mm

Ø250 mm | DC | Max airflow 1,236 m³/h | Max static pressure 577 Pa | 72 dB(A)

SKU: LWDD-250M-MBN-08 Categories: Impeller Ø160–315 mm, Inline Duct Fans, Metal Inline Duct Fans

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueAC&DC&EC AC&DC&EC Metal duct fans · SKU on PDF p. 21

All files for LWDD-250M-MBN-084 files · direct download

PDFFull product catalogue · model on PDF p. 21 WEBPDimensional drawing WEBPPerformance curve

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Building & agricultural ventilation Vertical farming All industries →

Proven in projects

Smart home ERV Range hoods, ovens & fan coils Drying, heat treatment & ovens All case studies →

Get a quote · LWDD-250M-MBN-08

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWDD-250M-MBN-08datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Performance curve (P-Q) LWDD-250M-MBN-08

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 24 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

Drawing & Curve LWDD-250M-MBN-08

LWDD-250M-MBN-08 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

LWDD-250M-MBN-08 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

Files for LWDD-250M-MBN-08: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWDD-250M-MBN-08

LWDD-250M-MBN-08 is a LONGWELL DC Metal Inline Duct Fan from the Metal Inline Duct Fans range, impeller Ø250 mm, rated 24 V DC, maximum airflow 1,236 m³/h, maximum static pressure 577 Pa, noise 72 dB(A), input power 130 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model	LWDD-250M-MBN-08
Series	LWDD250
Motor type	DC
Rated voltage	24 V
Current	5 A
Input power	130 W
Speed	2,638 rpm
Max. airflow	1,236 m³/h
Max. static pressure	577 Pa
Noise	72 dB(A)
Impeller diameter	Ø250 mm
Inlet diameter	250mm
Impeller material	Plastic

Typical applications

Residential and commercial fresh-air systems
Kitchen and bathroom exhaust
Local pressurisation and booster duty
Hotel and office ventilation

Series LWDD250: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
