LWFA4E200-102NS-02 — construction, airflow path and running condition.
LWFA4E200-102NS-02 AC Forward Curved Centrifugal Fan | Product Overview · open in video library
- ImpellerØ200 mm7.9 in
- Max airflow1,236 m³/h727 CFM
- Max static pressure226.6 Pa0.91 in. wg
- Voltage230 V
- Speed1,280 rpm
- Input power330 W
- Noise59 dB(A)

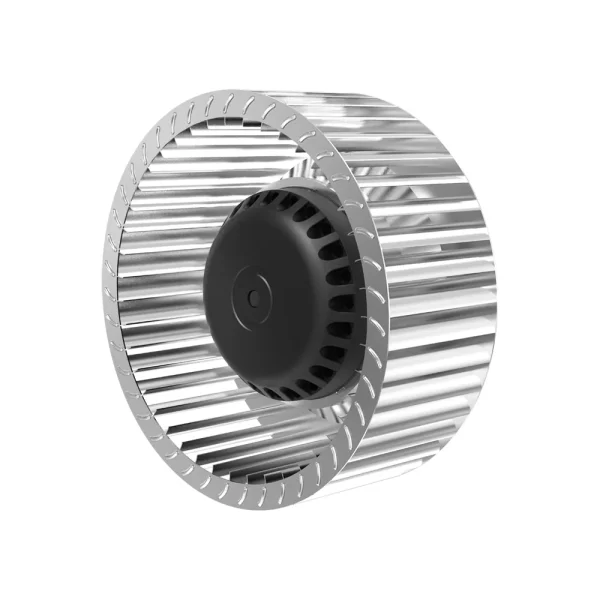

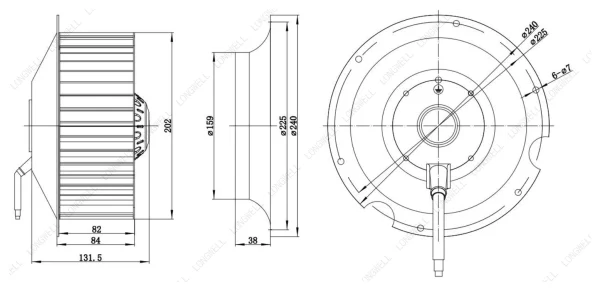

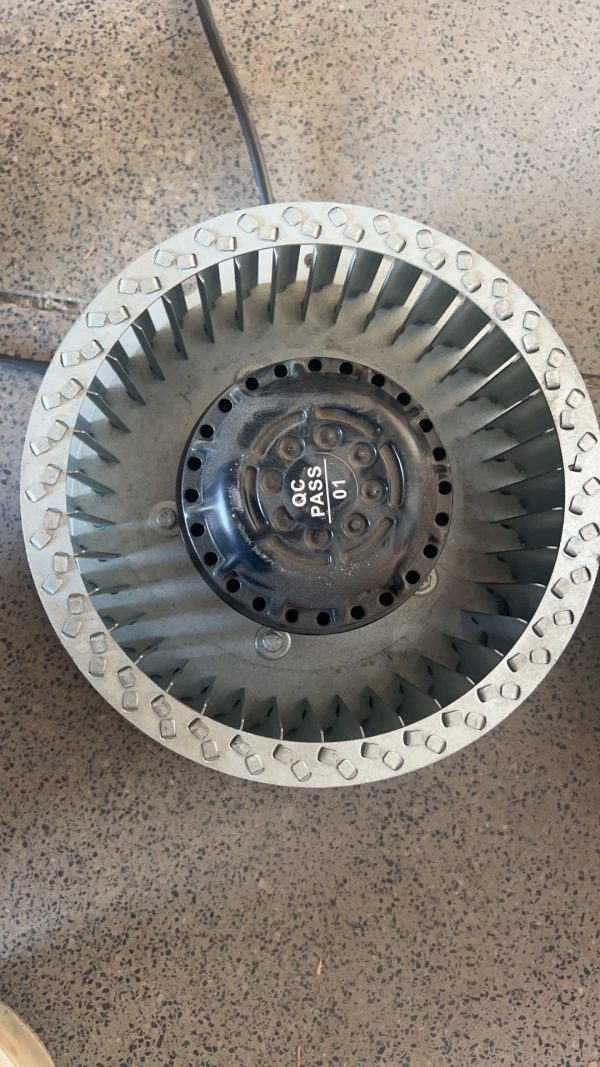

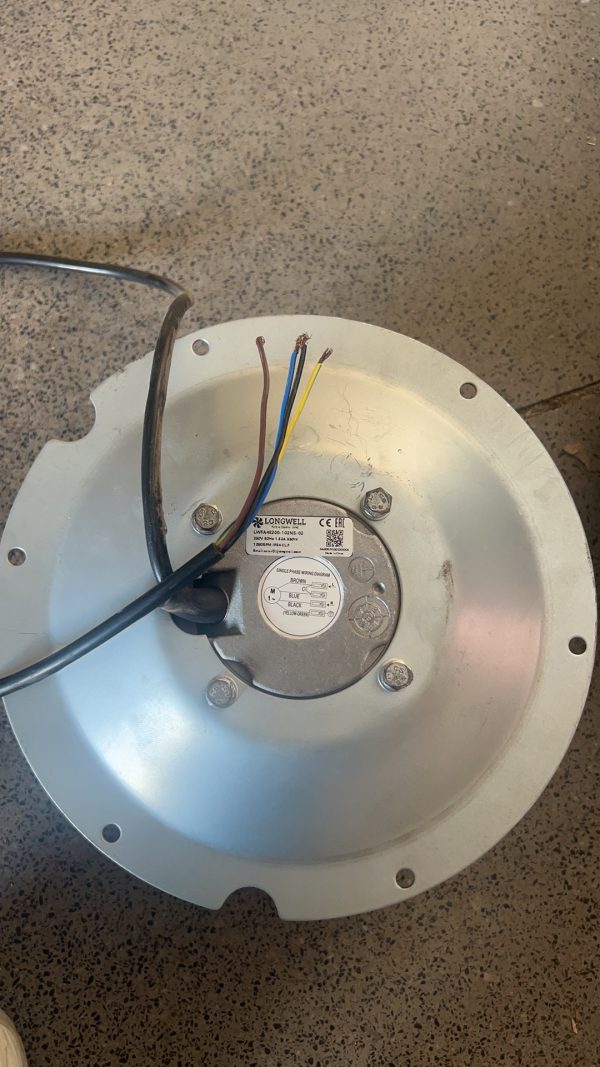

LWFA4E200-102NS-02 AC Forward Curved Centrifugal Fan Ø200 mm
Ø200 mm | AC | Max airflow 1,236 m³/h | Max static pressure 226.6 Pa | 59 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Downloads for LWFA4E200-102NS-02
PDFDatasheet · 566 KBNeed a non-standard size or another format? Ask an engineer or search the download center.
LWFA4E200-102NS-02 is a LONGWELL AC Forward Curved Centrifugal Fan from the Forward Curved Centrifugal Fans range, impeller Ø200 mm, rated 230 V AC, maximum airflow 1,236 m³/h, maximum static pressure 226.6 Pa, noise 59 dB(A), input power 330 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

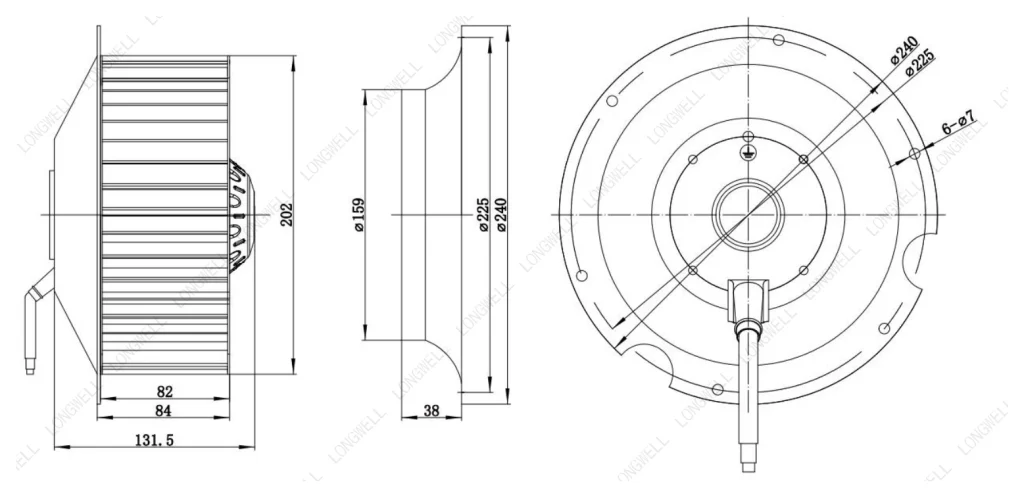

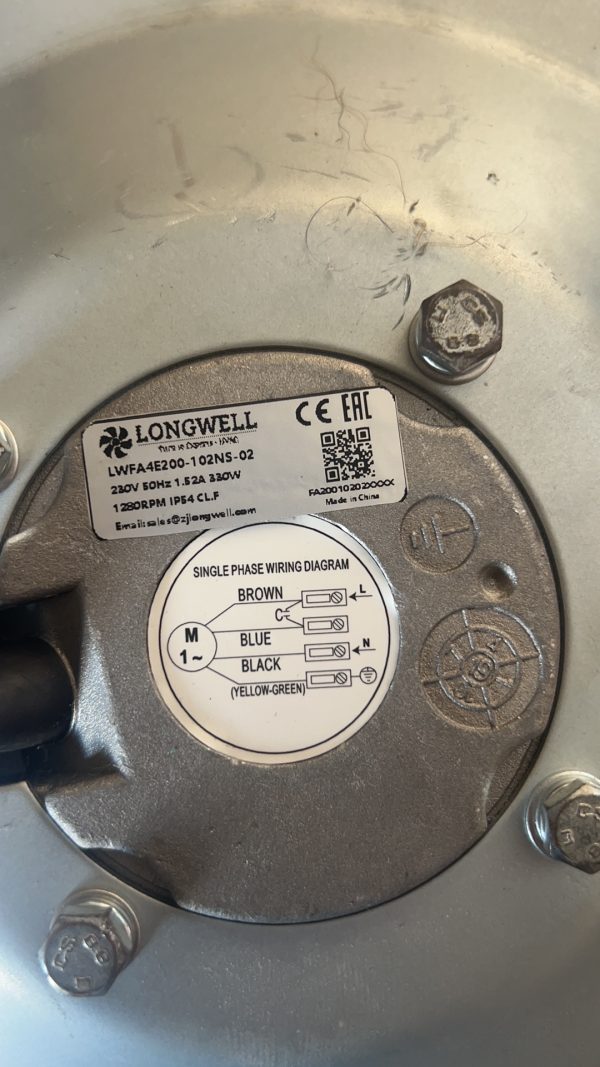

Technical data
| Model | LWFA4E200-102NS-02 |
|---|---|
| Series | LWFA4E200 |
| Motor type | AC |
| Phase | 1-phase |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Current | 1.52 A |
| Input power | 330 W |
| Speed | 1,280 rpm |
| Max. airflow | 1,236 m³/h |
| Max. airflow (CFM) | 736 CFM |
| Max. static pressure | 226.6 Pa |
| Noise | 59 dB(A) |
| Ambient temperature | -40 ~ 60 °C |
| Storage temperature | -40 ~ 80℃ |
| Humidity | 0 ~ 85 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø200 mm |
| Rotor diameter | 102 |
| Impeller material | Galvanised sheet steel ( Impeller ) |
| Protection class | IP54 |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 25,000Hours(L10), At 40 °Croom, humidity 15%~65%RH |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWFA4E200: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

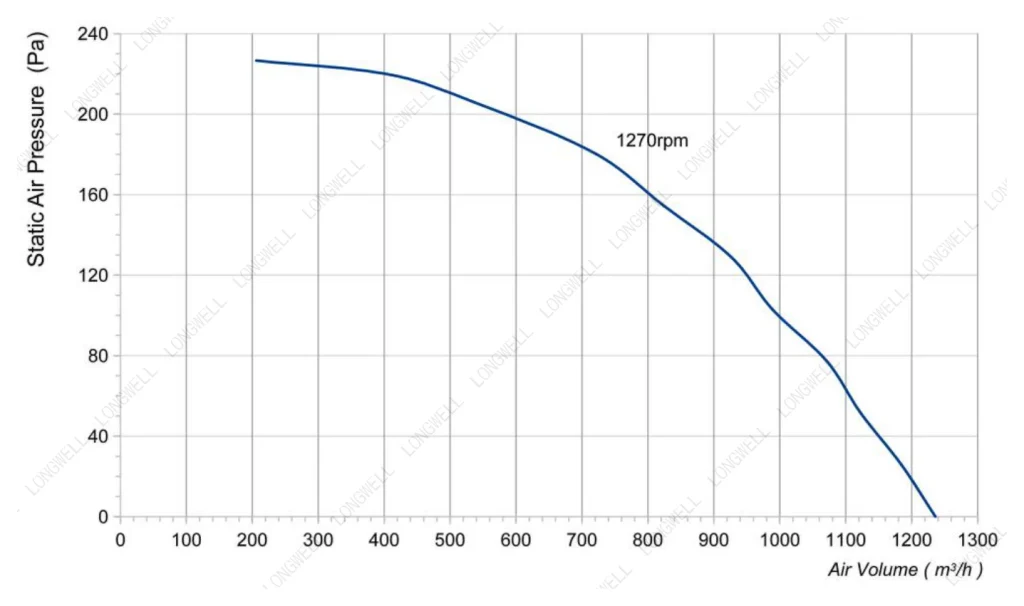

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø200 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWFA4E200-102NS-02 this model | 1,236 m³/h | 226.6 Pa | 1,280 rpm | 330 W | 59 dB(A) | 230 V | |
| LWA-200(8")U(S)M-01 | 23 m³/h | see curve | 2,800 rpm | 135 W | — | 110-120 V | View |
| LWDA-200 (8")U-MWN-01 | 720 m³/h | see curve | 3,400 rpm | 179 W | 65 dB(A) | 110-120 V | View |
| LWDA-200 (8")U-MWN-03 | 720 m³/h | see curve | 3,400 rpm | 179 W | 61 dB(A) | 110-120 V | View |
| LWDA-200(8")S-PWN-10 | 735 m³/h | 303 Pa | 1,650 rpm | 113 W | 38 dB(A) | 230 V | View |
| LWDA-200(8")U-PWN-12 | 750 m³/h | 302 Pa | 1,950 rpm | 128 W | 38 dB(A) | 115 V | View |
| LWDA-200(8")S-PWN-09 | 910 m³/h | 384 Pa | 2,300 rpm | 130 W | 40 dB(A) | 230 V | View |
| LWDA-200S-MBN-13 | 987 m³/h | 515 Pa | 2,540 rpm | 176 W | 70 dB(A) | 230 V | View |
| LWFA-E-200-01 | 1,000 m³/h | 305 Pa | — | — | 58 dB(A) | — | View |
| LWDA-200 (8")S-MWN-02 | 1,150 m³/h | see curve | 2,900 rpm | 143 W | 59 dB(A) | 220-240 V | View |
| LWDA-200 (8")S-MWN-04 | 1,150 m³/h | see curve | 2,900 rpm | 143 W | 57 dB(A) | 220-240 V | View |
| LWDA-200S-PWN-14 | 1,236 m³/h | 391 Pa | 2,500 rpm | 130 W | 29 dB(A) | 230 V | View |
| LWDA-200(8")U-PWN-11 | 1,250 m³/h | 435 Pa | 2,480 rpm | 182 W | 41 dB(A) | 115 V | View |
| LWA-200(8")U(S)M-02 | 1,300 m³/h | 140 Pa | 2,800 rpm | 120 W | — | 110-120 V | View |
| LWDA-200(8")S-MWN-08 | 1,300 m³/h | 140 Pa | 2,800 rpm | 80 W | 62 dB(A) | 220 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
