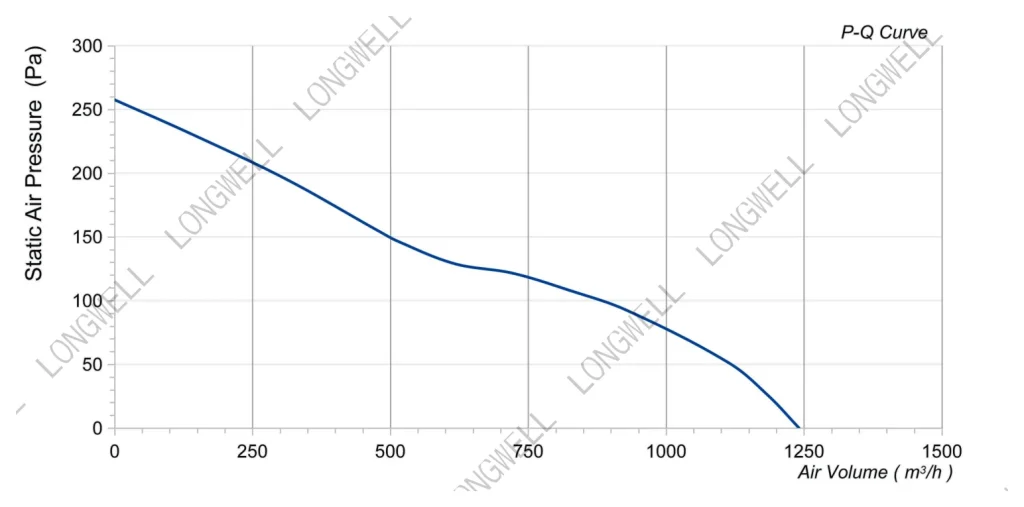

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ200 mm7.9 in
- Max airflow1,236 m³/h727 CFM
- Max static pressure278 Pa1.12 in. wg
- Voltage48 V
- Speed3,000 rpm
- Input power60 W
- Noise62 dB(A)

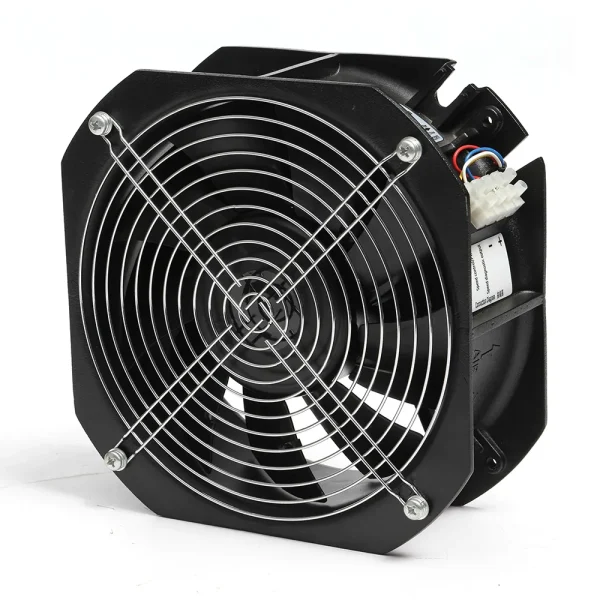

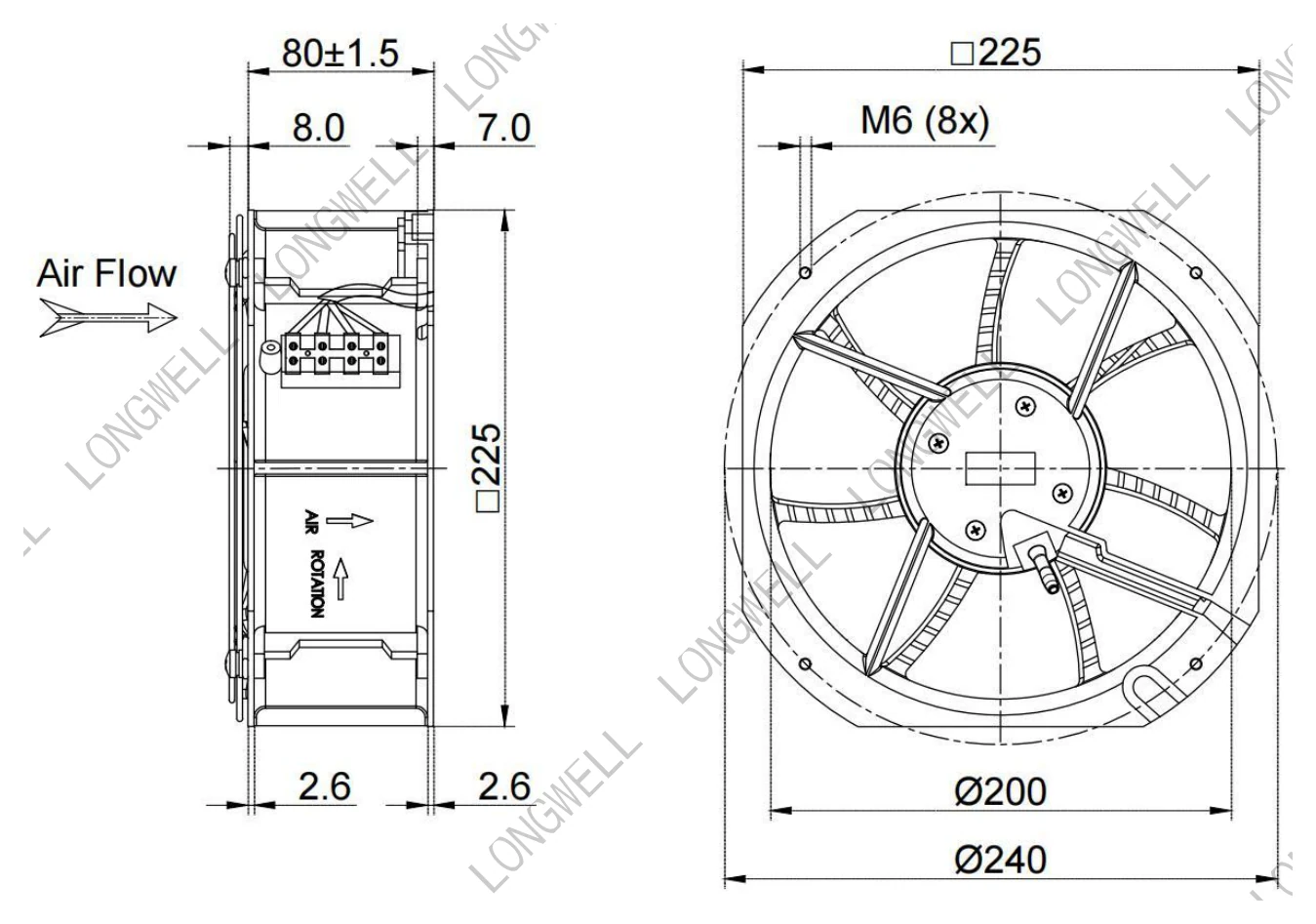

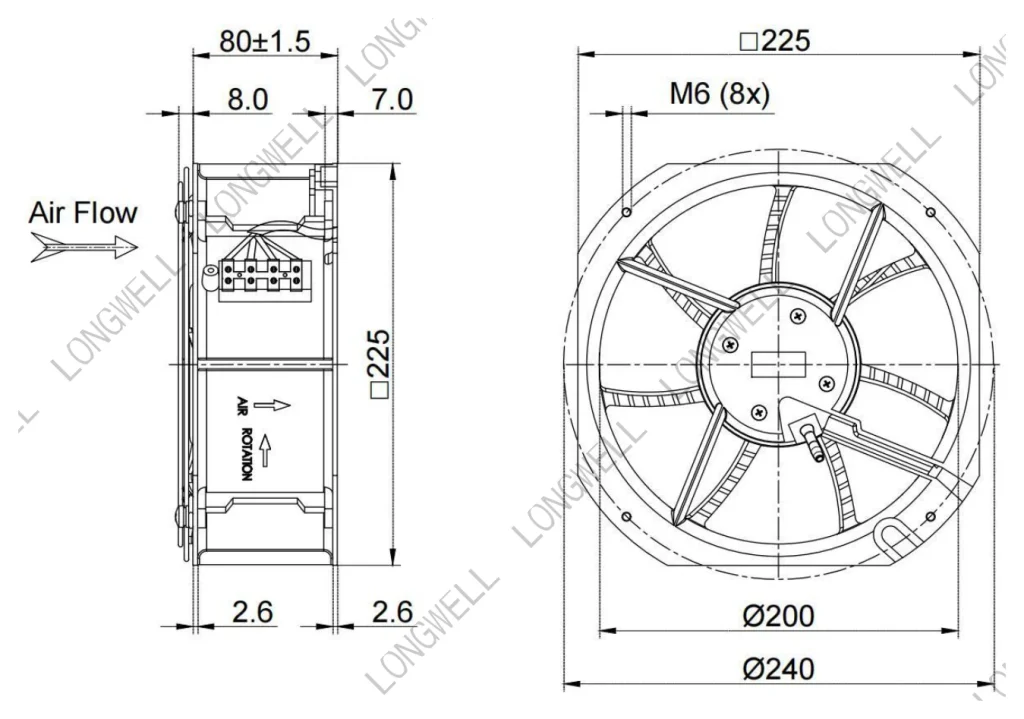

LWAD3G200HS-7MKB-02 DC Axial Fan Ø200 mm
Ø200 mm | DC | Max airflow 1,236 m³/h | Max static pressure 278 Pa | 62 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Engineering files (on request)
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.
Downloads for LWAD3G200HS-7MKB-02
PDFDatasheet · 743 KBNeed a non-standard size or another format? Ask an engineer or search the download center.
LWAD3G200HS-7MKB-02 is a LONGWELL DC Axial Fan from the DC Axial Fans range, impeller Ø200 mm, rated 48 V DC, maximum airflow 1,236 m³/h, maximum static pressure 278 Pa, noise 62 dB(A), input power 60 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

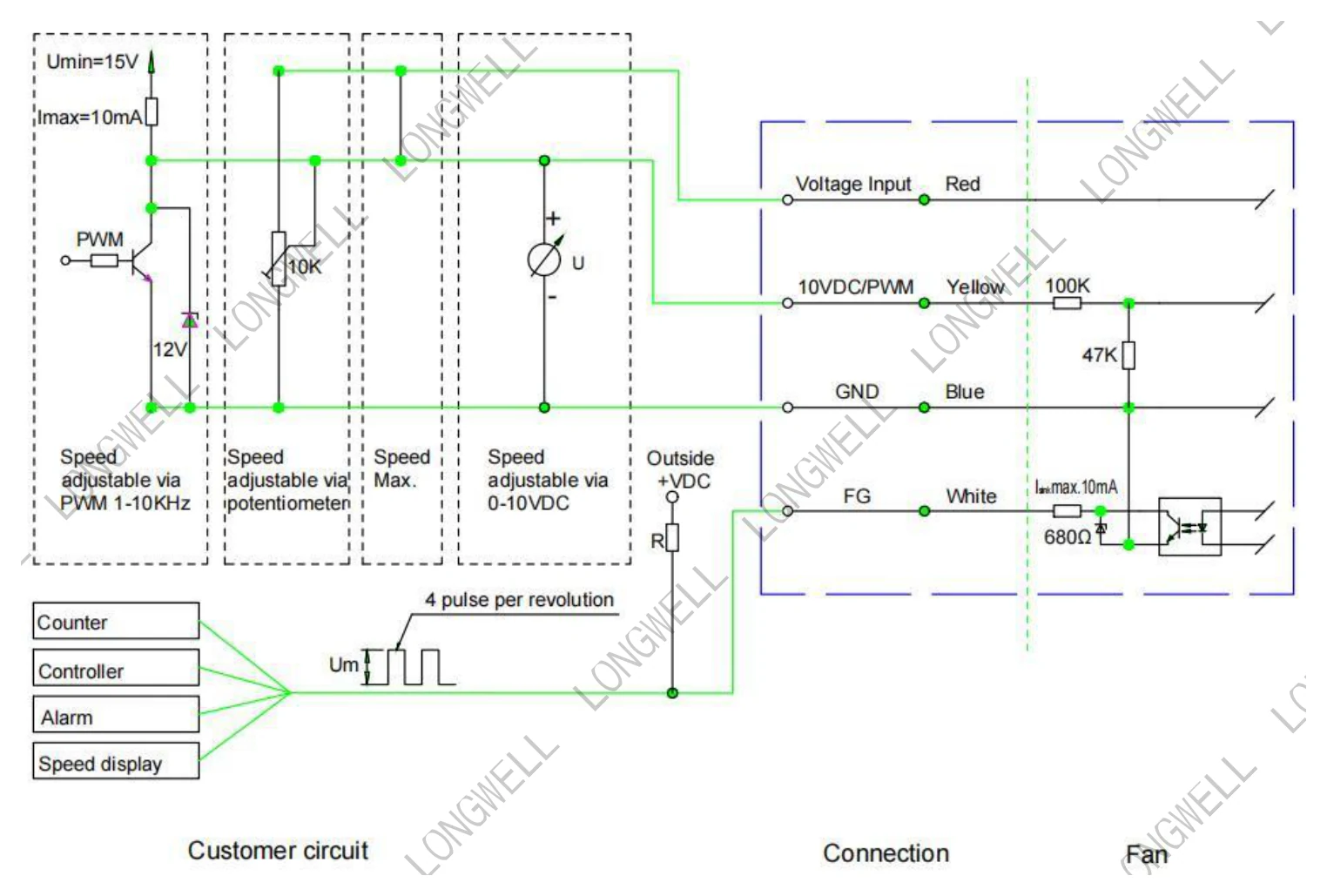

Technical data
| Model | LWAD3G200HS-7MKB-02 |
|---|---|
| Series | LWAD3G200 |
| Motor type | DC |
| Rated voltage | 48 V |
| Frequency | 50 Hz |
| Current | 1.25 A |
| Input power | 60 W |
| Speed | 3,000 rpm |
| Max. airflow | 1,236 m³/h |
| Max. airflow (CFM) | 730 CFM |
| Max. static pressure | 278 Pa |
| Noise | 62 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Storage temperature | -40 ~ 75℃ |
| Humidity | 5 ~ 90 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø200 mm |
| Impeller material | galvanized steel sheet ( Impeller ) |
| Protection class | IP44 |
| Insulation class | B |
| Bearing | Ball bearing |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 50,000Hours(L10), At 40 °Croom, humidity 15%~65%RH |
Typical applications
- Condensers, evaporators and dry coolers
- Heat-pump and chiller outdoor units
- Building and workshop ventilation
- Cooling towers and transformer cooling
Series LWAD3G200: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø200 mm · DC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWAD3G200HS-7MKB-02 this model | 1,236 m³/h | 278 Pa | 3,000 rpm | 60 W | 62 dB(A) | 48 V | |
| LWDD-200H-MBN-12 | 662 m³/h | 505 Pa | 2,600 rpm | 60 W | 67 dB(A) | 48 V | View |
| LWDD-200M-MBN-11 | 662 m³/h | 505 Pa | 2,600 rpm | 60 W | 67 dB(A) | 24 V | View |
| LWDD-200L-MBN-10 | 662 m³/h | 505 Pa | 2,600 rpm | 60 W | 67 dB(A) | 12 V | View |
| LWAD20060HL-02 | 761.4 m³/h | 107 Pa | 2,000 rpm | 28.8 W | 57.2 dB(A) | 48 V | View |
| LWAD20060ML-03 | 761.4 m³/h | 107 Pa | 2,000 rpm | 36 W | 57.2 dB(A) | 24 V | View |
| LWAD20060HM-01 | 951.6 m³/h | 168 Pa | 2,500 rpm | 72 W | 62 dB(A) | 48 V | View |
| LWAD20060MM-02 | 951.6 m³/h | 168 Pa | 2,500 rpm | 48 W | 62 dB(A) | 24 V | View |
| LWAD3G200ZB-7MGW-08 | 979 m³/h | 319 Pa | 3,000 rpm | 55 W | 60 dB(A) | 310 V | View |
| LWAD3G200ZS-7MGW-07 | 979 m³/h | 319 Pa | 3,000 rpm | 55 W | 60 dB(A) | 310 V | View |
| LWAD3G200ZB-7MEW-06 | 979 m³/h | 319 Pa | 3,000 rpm | 55 W | 60 dB(A) | 310 V | View |
| LWAD3G200ZS-7MEW-05 | 979 m³/h | 319 Pa | 3,000 rpm | 55 W | 60 dB(A) | 310 V | View |
| LWAD3G200ZB-7MNW-04 | 979 m³/h | 319 Pa | 3,000 rpm | 55 W | 60 dB(A) | 310 V | View |
| LWAD3G200ZS-7MNW-03 | 979 m³/h | 319 Pa | 3,000 rpm | 55 W | 60 dB(A) | 310 V | View |
| LWAD3G200MS-7MKB-01 | 1,236 m³/h | 278 Pa | 3,000 rpm | 60 W | 62 dB(A) | 24 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
