  • ImpellerØ355 mm
  • Max airflow3,265 m³/h
  • Max static pressure93 Pa
  • Voltage220 V
  • Speed1,450 rpm
  • Input power370 W

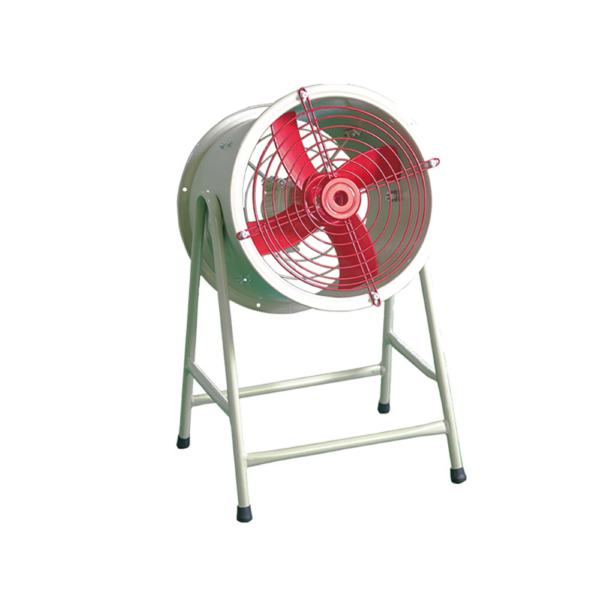

LWEA355S(T)M-159E Industrial Axial Fan Ø355 mm

Ø355 mm | AC | Max airflow 3,265 m³/h | Max static pressure 93 Pa

SKU: LWEA355S(T)M-159E Categories: , ,
  • Factory direct
  • OEM / ODM
  • Samples in 1–3 days
  • Production 15–30 days
  • 18-month warranty
  • CE · ETL · RoHS
View RFQ →
Dimensional drawingDimensions in mm. Confirm against the final approval drawing before machining cut-outs.
LWEA355S(T)M-159E Dimensional drawing

Need a non-standard size or another format? Ask an engineer or search the download center.

LWEA355S(T)M-159E is a LONGWELL Industrial Axial Fan from the Industrial Axial Fans range, impeller Ø355 mm, rated 220 V AC, maximum airflow 3,265 m³/h, maximum static pressure 93 Pa, input power 370 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model LWEA355S(T)M-159E
Series LWEA355
Motor type AC
Phase 1-phase
Rated voltage 220 V
Input power 370 W
Speed 1,450 rpm
Max. airflow 3,265 m³/h
Max. static pressure 93 Pa
Impeller diameter Ø355 mm
Blade diameter 355mm

Typical applications

  • Condensers, evaporators and dry coolers
  • Heat-pump and chiller outdoor units
  • Building and workshop ventilation
  • Cooling towers and transformer cooling

Series LWEA355: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø355 mm · AC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

ModelMax airflowMax static pressureSpeedPowerNoiseVoltage
LWEA355S(T)M-159E this model 3,265 m³/h93 Pa 1,450 rpm370 W—220 V
LWDA-355 (14")U-MWN-03 2,130 m³/hsee curve 1,720 rpm260 W63 dB(A)110-120 V View
LWBA4E355-102NS-16 2,636 m³/h410 Pa 1,425 rpm203 W69.9 dB(A)230 V View
LWBA4E355-102NS-15 3,035 m³/h546 Pa 1,635 rpm268 W73.8 dB(A)230 V View
LWBA4D355-102NT-10 3,245 m³/h515 Pa 1,600 rpm270 W67 dB(A)380 V View
LWBA4E355-138NS-13 3,399 m³/h464 Pa 1,400 rpm400 W72 dB(A)230 V View
LWBA4D355-138NT-11 3,399 m³/h464 Pa 1,450 rpm360 W72 dB(A)380 V View
LWBA4E355-138NS-14 4,017 m³/h618 Pa 1,700 rpm600 W77 dB(A)230 V View
LWBA4D355-138NT-12 4,017 m³/h618 Pa 1,700 rpm550 W77 dB(A)380 V View
LWFA6D355-188NT-02 4,172 m³/h412 Pa 900 rpm1,150 W70 dB(A)380 V View
LWBA2D355-188NT-17 4,635 m³/h1,339 Pa 2,700 rpm1,600 W90 dB(A)380 V View
LWFA4D355-188NT-01 5,665 m³/h906.4 Pa 1,340 rpm3,500 W80 dB(A)380 V View
LWBA2D355-188NT-18 5,974 m³/h1,339 Pa 2,700 rpm2,500 W90 dB(A)380 V View
LWDA-355 (14")S-MWN-04 6,450 m³/hsee curve 2,900 rpm903 W68 dB(A)220-240 V View
LWEA355S(T)M-160E 6,542 m³/h373 Pa 2,900 rpm750 W—220 V View

Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.

Related products

Other models in the LWEA355 seriesSame impeller, different speed grade or wiring

LONGWELL product videoLWEA355S(T)M-160EØ355 mm · 6,542 m³/h · 373 Pa · ACsame series

Adjacent sizesOne size up when airflow is short, one size down when it is too much

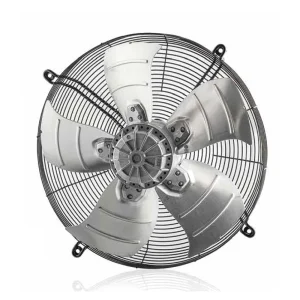

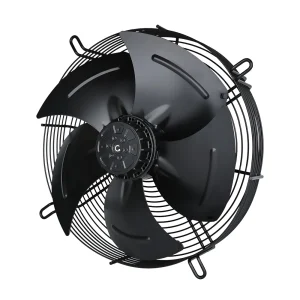

LWAA4E350S-5MEB-17 product photoLWAA4E350S-5MEB-17Ø350 mm · 2,493 m³/h · ACadjacent sizeLWAA4E350S-5MKB-13 product photoLWAA4E350S-5MKB-13Ø350 mm · 3,348 m³/h · ACadjacent sizeLWAA4E350S-5MEB-10 product photoLWAA4E350S-5MEB-10Ø350 mm · 3,760 m³/h · ACadjacent sizeLWAA4E350S-5MEB-09 product photoLWAA4E350S-5MEB-09Ø350 mm · 3,348 m³/h · ACadjacent sizeLWAA4D350S-5MEW-18 product photoLWAA4D350S-5MEW-18Ø350 mm · 2,575 m³/h · ACadjacent sizeLWAA4E350S-5MKB-14 product photoLWAA4E350S-5MKB-14Ø350 mm · 3,760 m³/h · ACadjacent size
