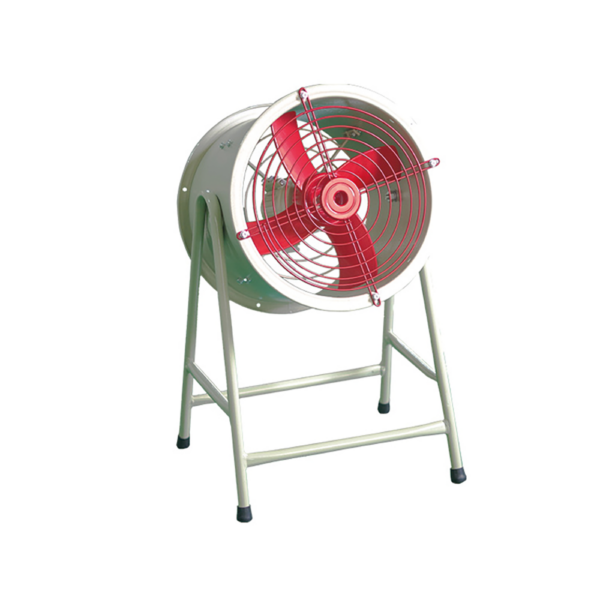

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.
- ImpellerØ355 mm14.0 in
- Max airflow6,542 m³/h3,851 CFM
- Max static pressure373 Pa1.50 in. wg
- Voltage220 V
- Speed2,900 rpm
- Input power750 W1.01 hp
LWEA355S(T)M-160E Industrial Axial Fan Ø355 mm
Ø355 mm | AC | Max airflow 6,542 m³/h | Max static pressure 373 Pa
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
Catalogue table LWEA355S(T)M-160E
Files for LWEA355S(T)M-160E: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWEA355S(T)M-160E
LWEA355S(T)M-160E is a LONGWELL Industrial Axial Fan from the Industrial Axial Fans range, impeller Ø355 mm, rated 220 V AC, maximum airflow 6,542 m³/h, maximum static pressure 373 Pa, input power 750 W.
Technical data
| Model | LWEA355S(T)M-160E |
|---|---|
| Series | LWEA355 |
| Motor type | AC |
| Phase | 1-phase |
| Rated voltage | 220 V |
| Input power | 750 W |
| Speed | 2,900 rpm |
| Max. airflow | 6,542 m³/h |
| Max. static pressure | 373 Pa |
| Impeller diameter | Ø355 mm |
| Blade diameter | 355mm |
Typical applications
- Condensers, evaporators and dry coolers
- Heat-pump and chiller outdoor units
- Building and workshop ventilation
- Cooling towers and transformer cooling
Series LWEA355: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Company certificates
Scans of original documents held by Ningbo Longwell Electric Technology Co., Ltd.: the company ISO 9001 / 14001 / 45001 management-system certificate. Click a scan to open the original.
ISO 9001 / 14001 / 45001Management systems of Ningbo Longwell Electric Technology Co., Ltd. (company certificate).
PDFISO 9001 / 14001 / 45001 management system certificateNeed a Declaration of Conformity for this model and your destination market? Ask us — we arrange additional certification on request.
How to order LWEA355S(T)M-160E
Most first orders follow the same eight steps. Quantities, terms and lead times are confirmed in your quotation.
- 1SelectFind models by duty point in the selector or by model number, compare on the curve and add them to your RFQ list.
- 2Engineering checkWithin 1 business day you receive the duty-point check on the curve, price and lead time.
- 3SamplesStock models ship in 1–3 days.
- 4Validation supportDatasheets, drawings, wiring diagrams and DoC per model; test reports, CAD and register maps after a short project check or NDA.
- 5Order & paymentProforma invoice; first orders on T/T 30 / 70.
- 6Production & release15–30 days at the partner factory that builds your model, then inspected and released to LONGWELL standards with outgoing sampling to AQL 2.5.
- 7ShippingFOB / CIF / DDP by sea from Ningbo or Shanghai; express and air on EXW / FCA / DAP.
- 8After-sales12 months standard, extendable to 18–24 months by project agreement; test records retained for 5 years; 8D closed-loop for any issue; annual technical review for framework customers.
Test & release at LONGWELL
Specified and drawn by LONGWELL; built to LONGWELL drawings by qualified partner factories; inspected and released to LONGWELL standards before shipment.
See test and release photos (8)
Alternatives with the same impeller (Ø355 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWEA355S(T)M-160E this model | 6,542 m³/h | 373 Pa | 2,900 rpm | 750 W | — | 220 V | |
| LWEA355S(T)M-159E | 3,265 m³/h | 93 Pa | 1,450 rpm | 370 W | — | 220 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
Other models in the LWEA355 seriesSame impeller, different speed grade or wiring
Adjacent sizesOne size up when airflow is short, one size down when it is too much
LWAA4E350S-5MEB-17Ø350 mm · 2,493 m³/h · ACadjacent size
LWAA4E350S-5MKB-13Ø350 mm · 3,348 m³/h · ACadjacent size
LWAA4E350S-5MEB-10Ø350 mm · 3,760 m³/h · ACadjacent size
LWAA4E350S-5MEB-09Ø350 mm · 3,348 m³/h · ACadjacent size
LWAA4D350S-5MEW-18Ø350 mm · 2,575 m³/h · ACadjacent size
LWAA4E350S-5MKB-14Ø350 mm · 3,760 m³/h · ACadjacent sizeAlternatives at a similar dutySimilar airflow, different construction or motor platform
