Downloads for LWAA4D350S-5MEB-03
PDFDatasheetNeed a non-standard size or another format? Ask an engineer or search the download center.
- ImpellerØ350 mm13.8 in
- Max airflow2,781 m³/h1,636 CFM
- Voltage380 V
- Speed1,360 rpm
- Input power135 W
- Noise58 dB(A)

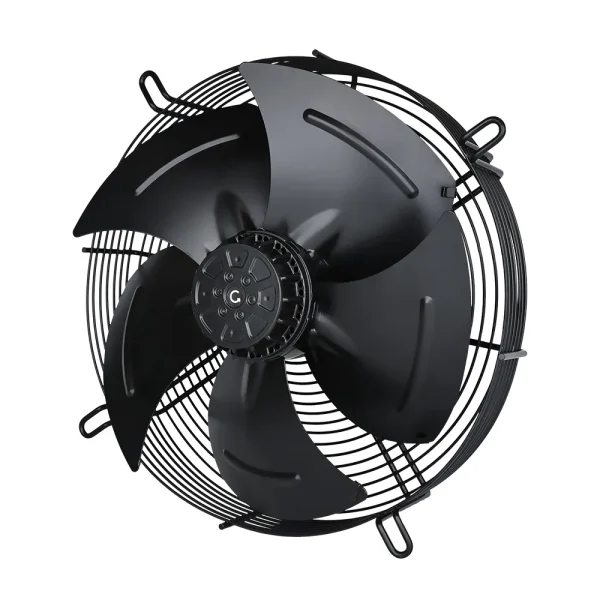

LWAA4D350S-5MEB-03 AC Axial Fan Ø350 mm
Ø350 mm | AC | Max airflow 2,781 m³/h | 58 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · RoHS · ETL on request
LWAA4D350S-5MEB-03 is a LONGWELL AC Axial Fan from the AC Axial Fans range, impeller Ø350 mm, rated 380 V AC, maximum airflow 2,781 m³/h, noise 58 dB(A), input power 135 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWAA4D350S-5MEB-03 |
|---|---|
| Series | LWAA4D350 |
| Motor type | AC |
| Phase | 3-phase |
| Rated voltage | 380 V |
| Voltage range | 342 ~ 418 V |
| Frequency | 50 Hz |
| Current | 0.3 A |
| Input power | 135 W |
| Speed | 1,360 rpm |
| Max. airflow | 2,781 m³/h |
| Max. airflow (CFM) | 1,636 CFM |
| Noise | 58 dB(A) |
| Ambient temperature | -30 ~ +60 ℃ |
| Storage temperature | -40 ~ 80℃ |
| Humidity | 0 ~ 85 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø350 mm |
| Impeller material | Cold-rolled sheet ( Impeller ) |
| Protection class | IP54 |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 30,000Hours(L10), At 40 °Croom, humidity 15%~65%RH |
Typical applications
- Condensers, evaporators and dry coolers
- Heat-pump and chiller outdoor units
- Building and workshop ventilation
- Cooling towers and transformer cooling
Series LWAA4D350: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

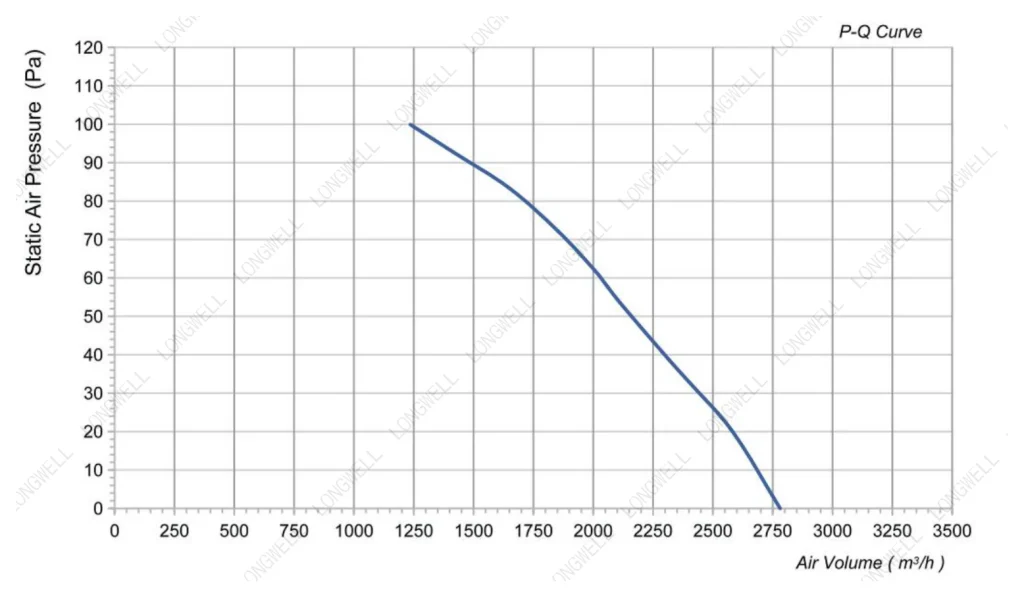

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø350 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWAA4D350S-5MEB-03 this model | 2,781 m³/h | see curve | 1,360 rpm | 135 W | 58 dB(A) | 380 V | |
| LWA-350(14")U(S)M-01 | 60 m³/h | see curve | 1,350 rpm | 140 W | — | 110-120 V | View |
| LWA-350(14")U(S)M-02 | 65 m³/h | see curve | 1,350 rpm | 160 W | — | 110-120 V | View |
| LWA-350(14")U(S)M-03 | 98 m³/h | see curve | 2,800 rpm | 550 W | — | 110-120 V | View |
| LWAA6E350S-5MEB-05 | 1,607 m³/h | see curve | 950 rpm | 75 W | 53 dB(A) | 220/230 V | View |
| LWAA6D350S-5MEB-07 | 1,607 m³/h | see curve | 920 rpm | 70 W | 53 dB(A) | 380 V | View |
| LWAA6E350S-5MEB-06 | 1,854 m³/h | see curve | 1,100 rpm | 83 W | 54 dB(A) | 220/230 V | View |
| LWAA6D350S-5MEB-08 | 1,854 m³/h | see curve | 1,050 rpm | 80 W | 54 dB(A) | 380 V | View |
| LWAA4E350S-5MEB-17 | 2,493 m³/h | see curve | 1,380 rpm | 150 W | — | 220 V | View |
| LWAA4D350S-5MEW-18 | 2,575 m³/h | see curve | 1,400 rpm | 150 W | — | 380 V | View |
| LWAA4E350S-5MKB-13 | 3,348 m³/h | see curve | 1,350 rpm | 155 W | 55 dB(A) | 220/230 V | View |
| LWAA4E350S-5MKB-16 | 3,760 m³/h | see curve | 1,500 rpm | 200 W | 58 dB(A) | 380 V | View |
| LWAA4E350S-5MKB-14 | 3,760 m³/h | see curve | 1,500 rpm | 200 W | 58 dB(A) | 220/230 V | View |
| LWAA4E350S-5MEB-10 | 3,760 m³/h | see curve | 1,500 rpm | 200 W | 58 dB(A) | 220/230 V | View |
| LWA-350(14")U(S)M-04 | 5,500 m³/h | 250 Pa | 2,800 rpm | 750 W | — | 110-120 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
