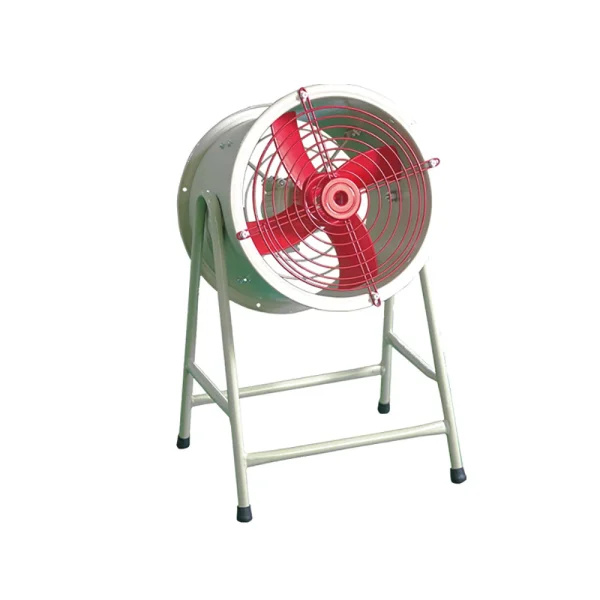

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.
- ImpellerØ630 mm24.8 in
- Max airflow18,250 m³/h10,742 CFM
- Max static pressure294 Pa1.18 in. wg
- Voltage380 V
- Speed1,450 rpm
- Input power1,500 W2.01 hp
LWEA630TM-167E Industrial Axial Fan Ø630 mm
Ø630 mm | AC | Max airflow 18,250 m³/h | Max static pressure 294 Pa
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
Catalogue table LWEA630TM-167E
Files for LWEA630TM-167E: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWEA630TM-167E
LWEA630TM-167E is a LONGWELL Industrial Axial Fan from the Industrial Axial Fans range, impeller Ø630 mm, rated 380 V AC, maximum airflow 18,250 m³/h, maximum static pressure 294 Pa, input power 1,500 W.
Technical data
| Model | LWEA630TM-167E |
|---|---|
| Series | LWEA630 |
| Motor type | AC |
| Phase | 3-phase |
| Rated voltage | 380 V |
| Input power | 1,500 W |
| Speed | 1,450 rpm |
| Max. airflow | 18,250 m³/h |
| Max. static pressure | 294 Pa |
| Impeller diameter | Ø630 mm |
| Blade diameter | 630mm |
Typical applications
- Condensers, evaporators and dry coolers
- Heat-pump and chiller outdoor units
- Building and workshop ventilation
- Cooling towers and transformer cooling
Series LWEA630: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Company certificates
Scans of original documents held by Ningbo Longwell Electric Technology Co., Ltd.: the company ISO 9001 / 14001 / 45001 management-system certificate. Click a scan to open the original.
ISO 9001 / 14001 / 45001Management systems of Ningbo Longwell Electric Technology Co., Ltd. (company certificate).
PDFISO 9001 / 14001 / 45001 management system certificateNeed a Declaration of Conformity for this model and your destination market? Ask us — we arrange additional certification on request.
How to order LWEA630TM-167E
Most first orders follow the same eight steps. Quantities, terms and lead times are confirmed in your quotation.
- 1SelectFind models by duty point in the selector or by model number, compare on the curve and add them to your RFQ list.
- 2Engineering checkWithin 1 business day you receive the duty-point check on the curve, price and lead time.
- 3SamplesStock models ship in 1–3 days.
- 4Validation supportDatasheets, drawings, wiring diagrams and DoC per model; test reports, CAD and register maps after a short project check or NDA.
- 5Order & paymentProforma invoice; first orders on T/T 30 / 70.
- 6Production & release15–30 days at the partner factory that builds your model, then inspected and released to LONGWELL standards with outgoing sampling to AQL 2.5.
- 7ShippingFOB / CIF / DDP by sea from Ningbo or Shanghai; express and air on EXW / FCA / DAP.
- 8After-sales12 months standard, extendable to 18–24 months by project agreement; test records retained for 5 years; 8D closed-loop for any issue; annual technical review for framework customers.
Test & release at LONGWELL
Specified and drawn by LONGWELL; built to LONGWELL drawings by qualified partner factories; inspected and released to LONGWELL standards before shipment.
See test and release photos (8)
Alternatives with the same impeller (Ø630 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWEA630TM-167E this model | 18,250 m³/h | 294 Pa | 1,450 rpm | 1,500 W | — | 380 V | |
| LWAA8E630S-5MEB-06 | 7,210 m³/h | see curve | 680 rpm | 250 W | 60 dB(A) | 220/230 V | View |
| LWAA8D630S-5MEB-07 | 7,210 m³/h | see curve | 680 rpm | 250 W | 60 dB(A) | 380 V | View |
| LWAA6E630S-4MKB-09 | 10,815 m³/h | see curve | 925 rpm | 450 W | 68 dB(A) | 230 V | View |
| LWAA6D630S-5MEB-05 | 10,815 m³/h | see curve | 1,060 rpm | 740 W | 69 dB(A) | 380 V | View |
| LWAA6D630S-4MKB-10 | 10,815 m³/h | see curve | 925 rpm | 450 W | 68 dB(A) | 380 V | View |
| LWAA6D630B-5MKB-12 | 11,021 m³/h | see curve | 900 rpm | 520 W | 67 dB(A) | 380/400 V | View |
| LWAA6E630S-5MEB-02 | 11,021 m³/h | see curve | 900 rpm | 520 W | 67 dB(A) | 220/230 V | View |
| LWAA6D630S-5MEB-04 | 11,021 m³/h | see curve | 900 rpm | 520 W | 67 dB(A) | 380 V | View |
| LWAA6E630S-5MEB-03 | 11,536 m³/h | see curve | 1,050 rpm | 705 W | 69 dB(A) | 220/230 V | View |
| LWAA6D630B-5MKB-13 | 12,154 m³/h | see curve | 1,050 rpm | 740 W | 69 dB(A) | 380/400 V | View |
| LWAA4D630S-5MEW-14 | 12,669 m³/h | see curve | 1,380 rpm | 950 W | — | 380 V | View |
| LWMFAF630-01 | 15,000 m³/h | 3,690 Pa | — | — | 95 dB(A) | 380 V | View |
| LWAA4D630S-7MKB-08 | 15,450 m³/h | see curve | 1,400 rpm | 1,550 W | 76 dB(A) | 380/400 V | View |
| LWAA4D630S-7MGB-08 | 15,450 m³/h | see curve | 1,400 rpm | 1,550 W | 76 dB(A) | 380 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
Adjacent sizesOne size up when airflow is short, one size down when it is too much
LWAA6D600S-5MEB-05Ø600 mm · 10,197 m³/h · ACadjacent size
LWAA6E600S-5MEB-02Ø600 mm · 9,785 m³/h · ACadjacent size
LWA-600(24")TM-02Ø600 mm · 310 m³/h · ACadjacent size
LWA-600(24")U(S)M-03Ø600 mm · 210 m³/h · ACadjacent size
LWAA6D600S-5MEB-04Ø600 mm · 9,785 m³/h · ACadjacent size
LWAA4D600S-5MEB-01Ø600 mm · 10,506 m³/h · ACadjacent sizeAlternatives at a similar dutySimilar airflow, different construction or motor platform
LWEX-WFS-7.5A-0.75-4P-3-00118,000 m³/h · ACsimilar dutyLWEX-WFS-7.5A-0.75-4P-1-00118,000 m³/h · ACsimilar duty
LWBA4D630-188NT-03Ø630 mm · 17,955 m³/h · 956 Pa · ACsimilar duty
LWPVA-915(36")T-0417,700 m³/hsimilar duty
LWPVB-915(36")T-0317,616 m³/hsimilar duty
LWAA6D710S-5MKB-06Ø710 mm · 17,510 m³/h · ACsimilar dutySee all Axial Fans · select by duty point
