- ImpellerØ700 mm
- Max airflow10,200 m³/h
- Voltage220 V
- Speed1,450 rpm
- Input power1,100 W

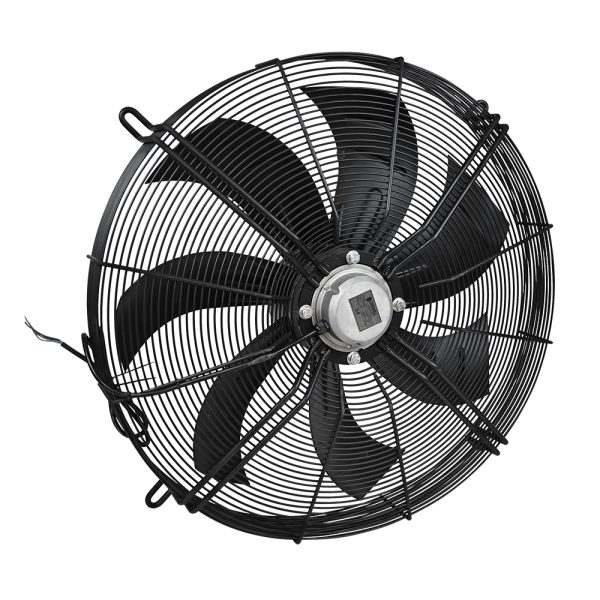

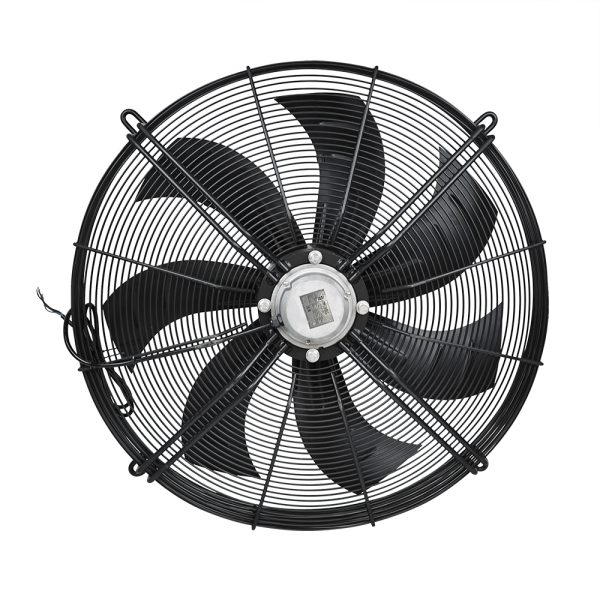

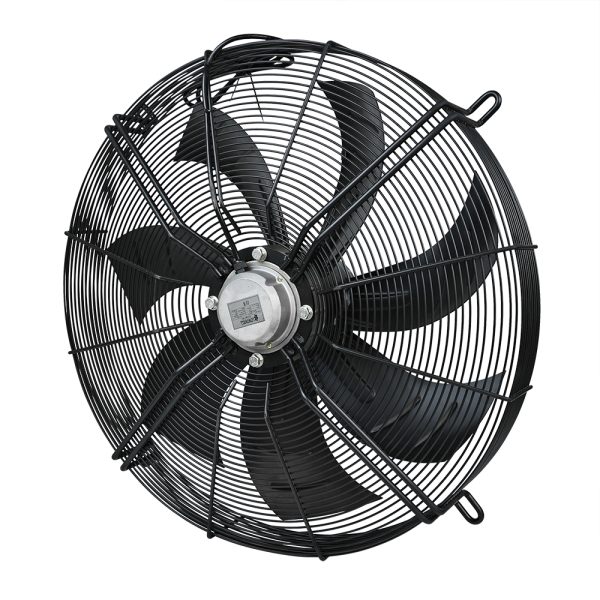

LWEA700S(T)M-071E Tube Axial Fan Ø700 mm
Ø700 mm | AC | Max airflow 10,200 m³/h
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
LWEA700S(T)M-071E is a LONGWELL Tube Axial Fan from the Tube Axial Fans range, impeller Ø700 mm, rated 220 V AC, maximum airflow 10,200 m³/h, input power 1,100 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWEA700S(T)M-071E |
|---|---|
| Series | LWEA700 |
| Motor type | AC |
| Phase | 1-phase |
| Rated voltage | 220 V |
| Input power | 1,100 W |
| Speed | 1,450 rpm |
| Max. airflow | 10,200 m³/h |
| Impeller diameter | Ø700 mm |
| Blade diameter | 700mm |
Typical applications
- Condensers, evaporators and dry coolers
- Heat-pump and chiller outdoor units
- Building and workshop ventilation
- Cooling towers and transformer cooling
Series LWEA700: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø700 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWEA700S(T)M-071E this model | 10,200 m³/h | see curve | 1,450 rpm | 1,100 W | — | 220 V | |
| LWEAF700-01 | 10,200 m³/h | see curve | 1,450 rpm | 1,100 W | — | 380 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
Related products
Adjacent sizesOne size up when airflow is short, one size down when it is too much
LWAA4D710S-7MGB-05Ø710 mm · 20,600 m³/h · ACadjacent size
LWAE3G710TS-5MKW-02Ø710 mm · 13,390 m³/h · 258 Pa · ECadjacent size
LWEA710TM-168EØ710 mm · 26,120 m³/h · 373 Pa · ACadjacent size
LWAA8D710S-7MEB-02Ø710 mm · 12,360 m³/h · ACadjacent size

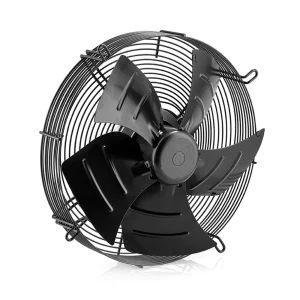

LWAE3G710TS-5MKW-01Ø710 mm · 13,905 m³/h · ECadjacent size

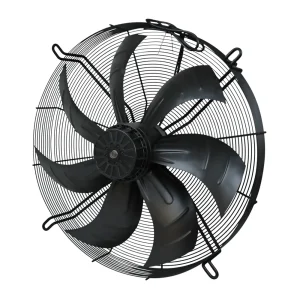

LWAA6D710S-7MEB-01Ø710 mm · 17,510 m³/h · ACadjacent sizeAlternatives at a similar dutySimilar airflow, different construction or motor platform
LWEAF700-01Ø700 mm · 10,200 m³/h · ACsimilar dutyLWEX-AF-7A-1.1-4P-3-00110,200 m³/h · ACsimilar duty
LWAA6E600B-5MKB-08Ø600 mm · 10,197 m³/h · ACsimilar duty
LWAA6E600S-5MEB-03Ø600 mm · 10,197 m³/h · ACsimilar duty

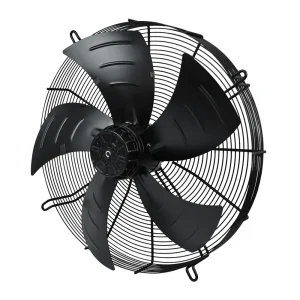

LWAA6D600S-5MEB-05Ø600 mm · 10,197 m³/h · ACsimilar duty
