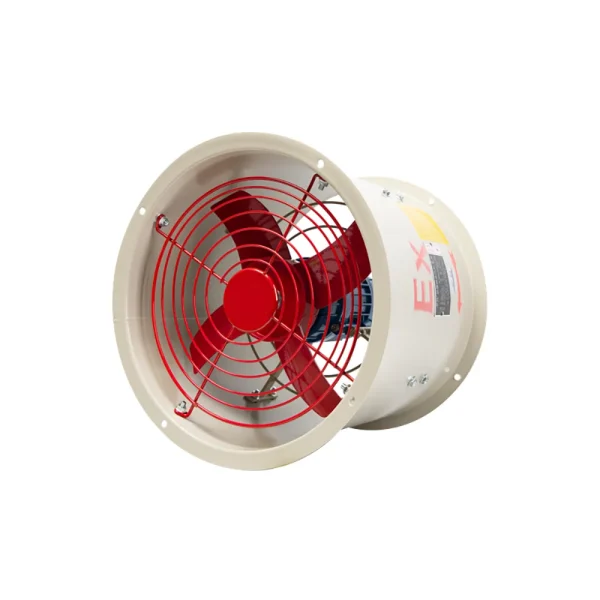

LWEAF700-01 product photo
LWEAF750-01 product photo
  • ImpellerØ700 mm
  • Max airflow10,200 m³/h
  • Voltage380 V
  • Speed1,450 rpm
  • Input power1,100 W

LWEAF700-01 Tube Axial Fan Ø700 mm

Ø700 mm | AC | Max airflow 10,200 m³/h

SKU: LWEAF700-01 Categories: , ,
  • Factory direct
  • OEM / ODM
  • Samples in 1–3 days
  • Production 15–30 days
  • 18-month warranty
  • CE · ETL · RoHS
View RFQ →
Dimensional drawingDimensions in mm. Confirm against the final approval drawing before machining cut-outs.
LWEAF700-01 Dimensional drawing

Need a non-standard size or another format? Ask an engineer or search the download center.

LWEAF700-01 is a LONGWELL Tube Axial Fan from the Tube Axial Fans range, impeller Ø700 mm, rated 380 V AC, maximum airflow 10,200 m³/h, input power 1,100 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model LWEAF700-01
Series LWEAF700
Motor type AC
Phase 3-phase
Rated voltage 380 V
Input power 1,100 W
Speed 1,450 rpm
Max. airflow 10,200 m³/h
Impeller diameter Ø700 mm
Blade diameter 700mm

Typical applications

  • Condensers, evaporators and dry coolers
  • Heat-pump and chiller outdoor units
  • Building and workshop ventilation
  • Cooling towers and transformer cooling

Series LWEAF700: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø700 mm · AC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

ModelMax airflowMax static pressureSpeedPowerNoiseVoltage
LWEAF700-01 this model 10,200 m³/hsee curve 1,450 rpm1,100 W—380 V
LWEA700S(T)M-071E 10,200 m³/hsee curve 1,450 rpm1,100 W—220 V View

Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
