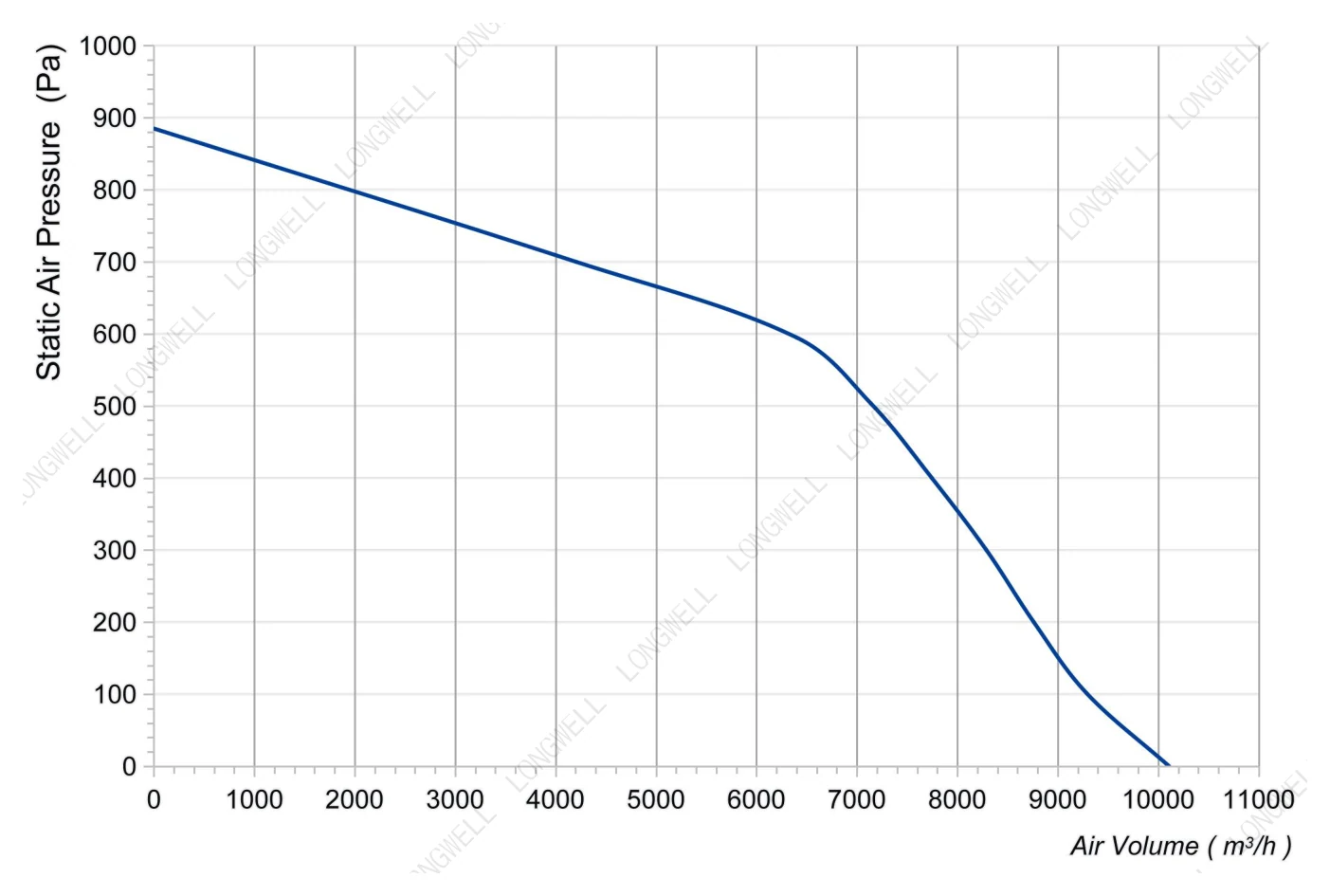

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ500 mm
- Max airflow10,305 m³/h
- Max static pressure903 Pa
- Voltage400 V
- Speed1,705 rpm
- Input power1,900 W

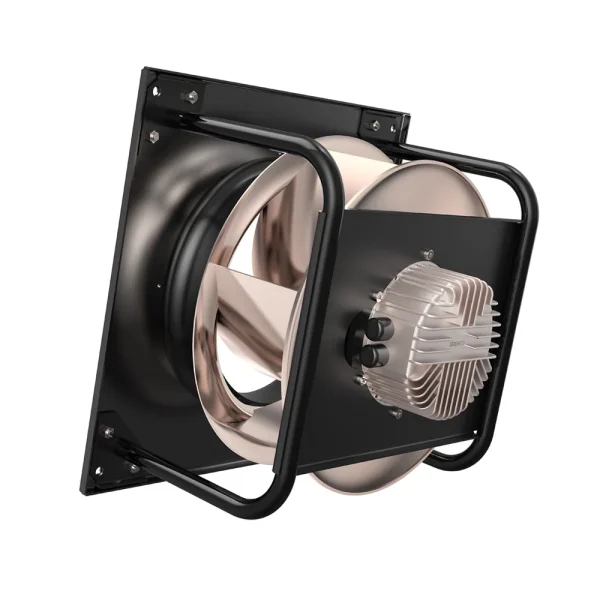

LWBE3G500-188PT-07 EC Plug Fan Ø500 mm
Ø500 mm | EC | Max airflow 10,305 m³/h | Max static pressure 903 Pa
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS

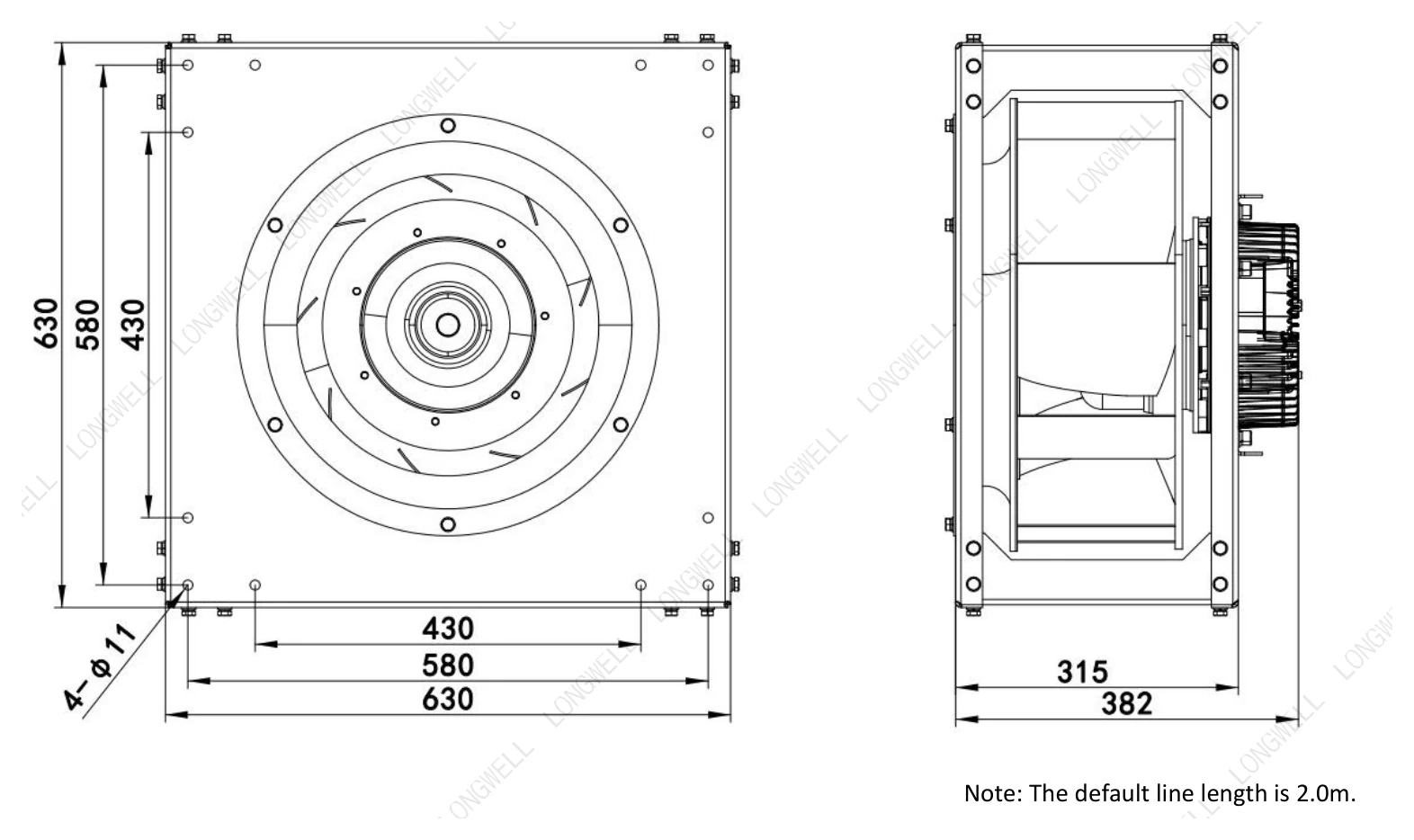

Engineering files (on request)
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.
Need a non-standard size or another format? Ask an engineer or search the download center.
LWBE3G500-188PT-07 is a LONGWELL EC Plug Fan from the Plug Fans (RLM Plenum Fans) range, impeller Ø500 mm, rated 400 V EC, maximum airflow 10,305 m³/h, maximum static pressure 903 Pa, input power 1,900 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWBE3G500-188PT-07 |
|---|---|
| Series | LWBE3G500 |
| Motor type | EC |
| Phase | 3-phase |
| Rated voltage | 400 V |
| Frequency | 50 Hz |
| Current | 4 A |
| Input power | 1,900 W |
| Speed | 1,705 rpm |
| Max. airflow | 10,305 m³/h |
| Max. airflow (CFM) | 6,062 CFM |
| Max. static pressure | 903 Pa |
| Ambient temperature | -25 ~ 60 °C |
| Storage temperature | -25 ~ 70℃ |
| Humidity | 0 ~ 85% RH |
| Altitude | < 1000m |
| Impeller diameter | Ø500 mm |
| Rotor diameter | 188 |
| Impeller material | Aluminum Alloy (Impeller) |
| Protection class | IP54 |
| Insulation class | F |
| Bearing | Maintenance-free deep groove ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 40,000Hours(L10). At 40℃room, humidity 15%~65%RH |

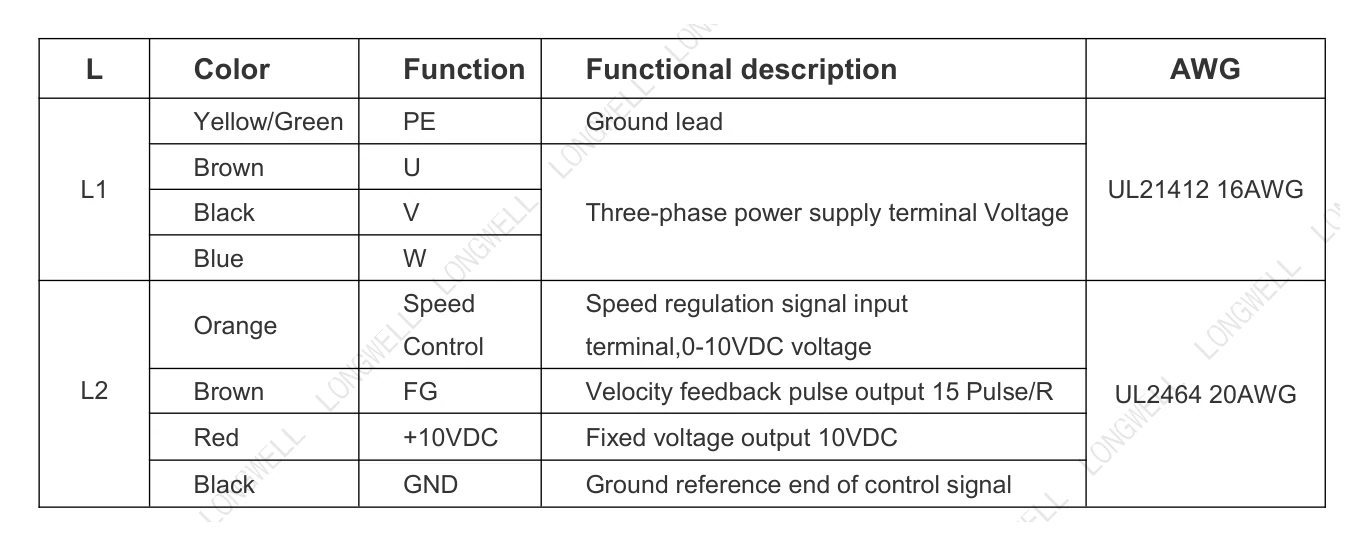

| Speed control | Control input 0~10VDC(RS485 external control box can be connected) |
| Control signal | Control signal VSP voltage range 1.5±0.1VDC~9.5±0.2VDC(During normal operation, when the VSP voltage is below 0.9±0.1VDC, the motor switches from operating mode to standby mode) |
| Speed feedback | Tach output: 15Pulse/R; FG internal open circuit output, external pull-up resistor R, pull-up voltage V+ |
| Auxiliary output | Output 10±0.3VDC, Max Current: 22mA |
| Communication | LWRS485-04 |
| Protection functions | Current limiting protection, Over-temperature protection, Over-current protectionLocked-rotor protection, Input power supply lacks phase protection |
| Soft start | Delay time <35 seconds to full speed |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWBE3G500: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
