ImpellerØ225 mm8.9 in
Max airflow2,300 m³/h1,354 CFM
Max static pressure325 Pa1.30 in. wg
Voltage220 V
Noise65 dB(A)

LWFA-E-225-01 LWFA Series Direct Drive Centrifugal Blower Ø225 mm

Ø225 mm | AC | Max airflow 2,300 m³/h | Max static pressure 325 Pa | 65 dB(A)

SKU: LWFA-E-225-01 Categories: Commercial Centrifugal Blowers, Impeller Ø178–254 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueLWFA LWFA Series Direct Driven centrifugal blower · SKU on PDF p. 2

All files for LWFA-E-225-016 files · direct download

PDFFull product catalogue · model on PDF p. 2 WEBPDimensional drawing WEBPPerformance curve WEBPWiring diagram PDFSeries catalogue

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Convection ovens Tunnel ovens Commercial dryers Industrial AHUs All industries →

Proven in projects

Drying, heat treatment & ovens Range hoods & ovens Cleanroom build All case studies →

Get a quote · LWFA-E-225-01

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWFA-E-225-01datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Performance curve (P-Q) LWFA-E-225-01

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 220 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

Drawing, Curve & Wiring LWFA-E-225-01

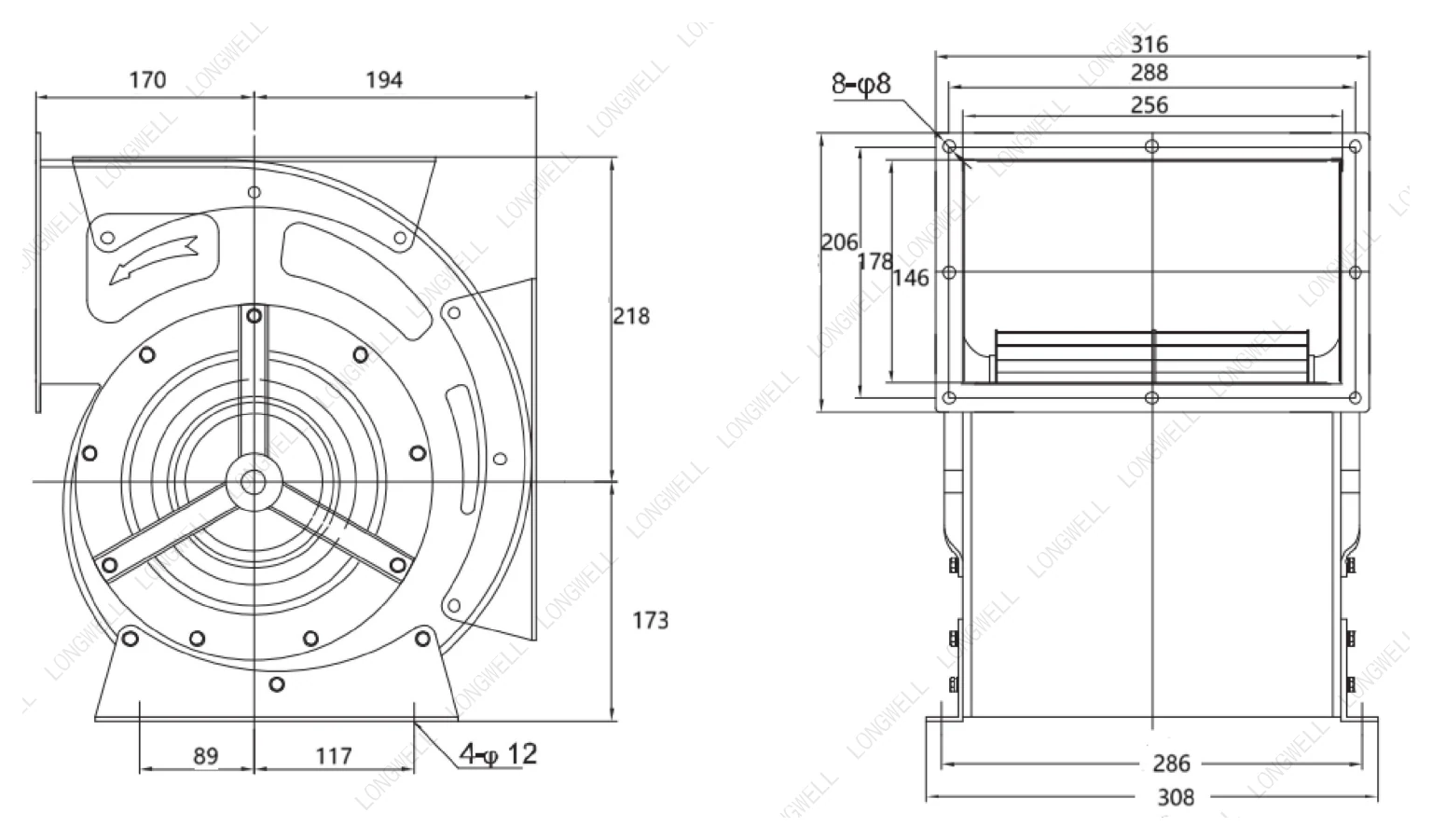

LWFA-E-225-01 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

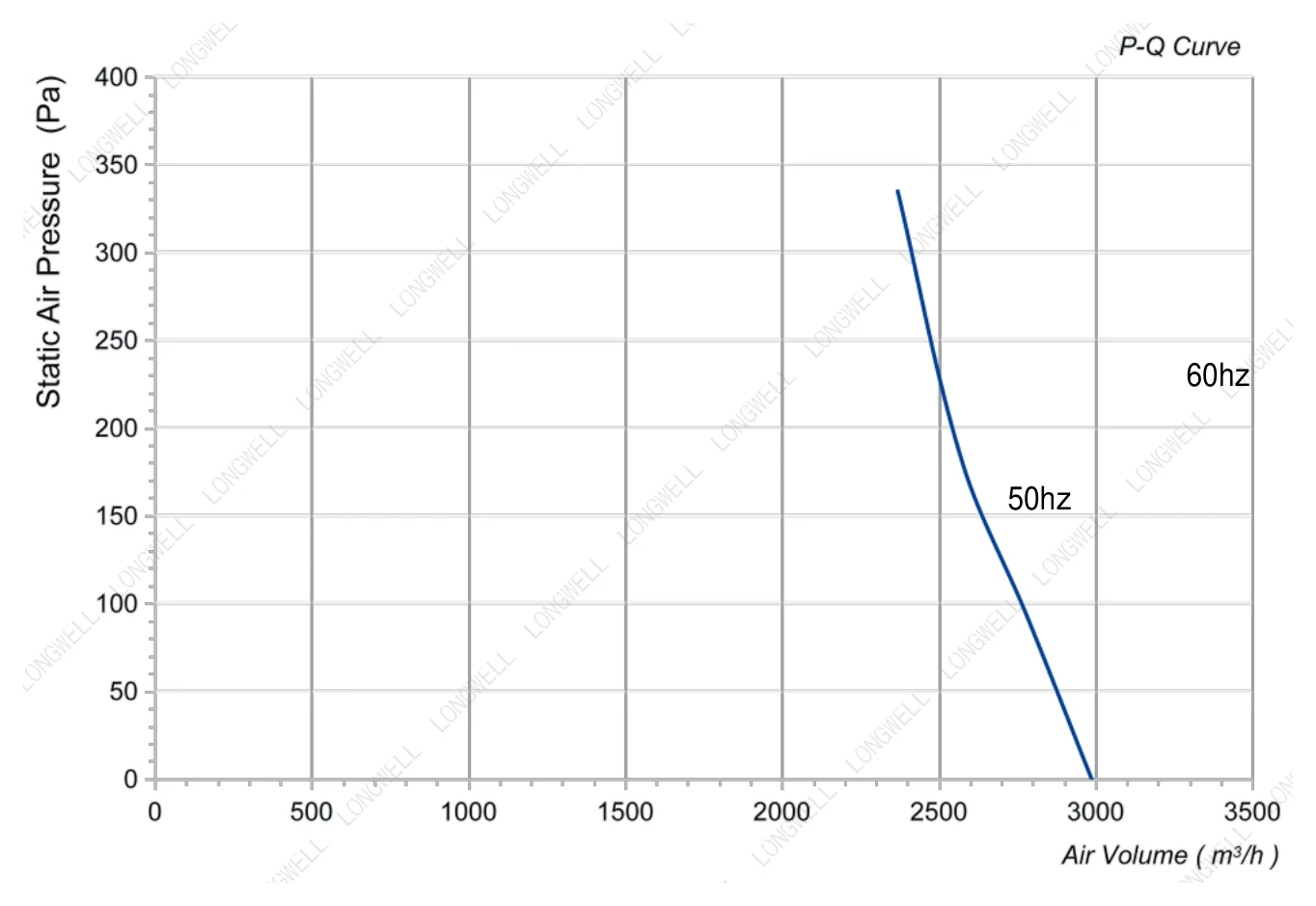

LWFA-E-225-01 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

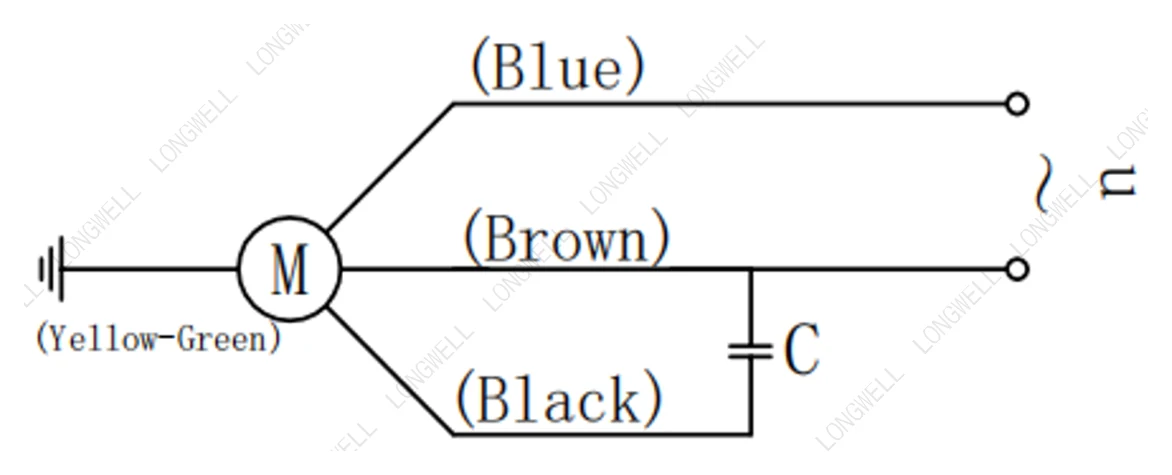

LWFA-E-225-01 Wiring diagram — **Wiring diagram**Lead colours and terminal assignment; TK = motor thermal contact.

Files for LWFA-E-225-01: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWFA-E-225-01

LWFA-E-225-01 is a LONGWELL LWFA Series Direct Drive Centrifugal Blower from the Impeller Ø178–254 mm range, impeller Ø225 mm, rated 220 V AC, maximum airflow 2,300 m³/h, maximum static pressure 325 Pa, noise 65 dB(A). The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWFA-E-225-01
Motor type	AC
Rated voltage	220 V
Max. airflow	2,300 m³/h
Max. static pressure	325 Pa
Noise	65 dB(A)
Storage temperature	-40 ~ 80℃
Humidity	0 ~ 90 % RH
Altitude	< 1000m
Impeller diameter	Ø225 mm
Blade diameter	225mm
Impeller material	Galvanized sheet ( Impeller )
Balance grade	G6.3
Vibration standard	JB/T 8689
Service life	30,000Hours(L10), At 40 °Croom, humidity 15%~65%RH

Typical applications

Commercial kitchen extraction
Ventilation units and AHUs
Process and fume extraction

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
