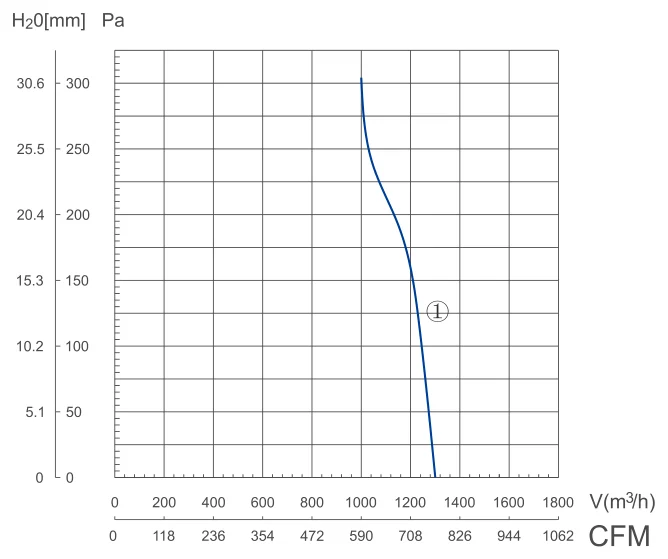

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ200 mm
- Max airflow1,000 m³/h
- Max static pressure305 Pa
- Noise58 dB(A)
LWFA-E-200-01 LWFA Series Direct Drive Centrifugal Blower Ø200 mm
Ø200 mm | AC | Max airflow 1,000 m³/h | Max static pressure 305 Pa | 58 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Series catalogue
PDFLWFA LWFA Series Direct Driven centrifugal blower · 1.4 MBCovers the whole series, not only this model.
Need a non-standard size or another format? Ask an engineer or search the download center.
LWFA-E-200-01 is a LONGWELL LWFA Series Direct Drive Centrifugal Blower from the Impeller Ø178–254 mm range, impeller Ø200 mm, maximum airflow 1,000 m³/h, maximum static pressure 305 Pa, noise 58 dB(A). The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWFA-E-200-01 |
|---|---|
| Motor type | AC |
| Max. airflow | 1,000 m³/h |
| Max. static pressure | 305 Pa |
| Noise | 58 dB(A) |
| Impeller diameter | Ø200 mm |
| Blade diameter | 200mm |
Typical applications
- Commercial kitchen extraction
- Ventilation units and AHUs
- Process and fume extraction
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø200 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWFA-E-200-01 this model | 1,000 m³/h | 305 Pa | — | — | 58 dB(A) | — | |
| LWA-200(8")U(S)M-01 | 23 m³/h | see curve | 2,800 rpm | 135 W | — | 110-120 V | View |
| LWDA-200 (8")U-MWN-01 | 720 m³/h | see curve | 3,400 rpm | 179 W | 65 dB(A) | 110-120 V | View |
| LWDA-200 (8")U-MWN-03 | 720 m³/h | see curve | 3,400 rpm | 179 W | 61 dB(A) | 110-120 V | View |
| LWDA-200(8")S-PWN-10 | 735 m³/h | 303 Pa | 1,650 rpm | 113 W | 38 dB(A) | 230 V | View |
| LWDA-200(8")U-PWN-12 | 750 m³/h | 302 Pa | 1,950 rpm | 128 W | 38 dB(A) | 115 V | View |
| LWDA-200(8")S-PWN-09 | 910 m³/h | 384 Pa | 2,300 rpm | 130 W | 40 dB(A) | 230 V | View |
| LWDA-200S-MBN-13 | 987 m³/h | 515 Pa | 2,540 rpm | 176 W | 70 dB(A) | 230 V | View |
| LWDA-200 (8")S-MWN-02 | 1,150 m³/h | see curve | 2,900 rpm | 143 W | 59 dB(A) | 220-240 V | View |
| LWDA-200 (8")S-MWN-04 | 1,150 m³/h | see curve | 2,900 rpm | 143 W | 57 dB(A) | 220-240 V | View |
| LWDA-200S-PWN-14 | 1,236 m³/h | 391 Pa | 2,500 rpm | 130 W | 29 dB(A) | 230 V | View |
| LWFA4E200-102NS-02 | 1,236 m³/h | 226.6 Pa | 1,280 rpm | 330 W | 59 dB(A) | 230 V | View |
| LWDA-200(8")U-PWN-11 | 1,250 m³/h | 435 Pa | 2,480 rpm | 182 W | 41 dB(A) | 115 V | View |
| LWA-200(8")U(S)M-02 | 1,300 m³/h | 140 Pa | 2,800 rpm | 120 W | — | 110-120 V | View |
| LWDA-200(8")S-MWN-08 | 1,300 m³/h | 140 Pa | 2,800 rpm | 80 W | 62 dB(A) | 220 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
