ImpellerØ203 mm8.0 in
Max airflow2,734 m³/h1,609 CFM
Max static pressure467 Pa1.87 in. wg
Voltage220 V
Speed1,440 rpm
Input power585 W

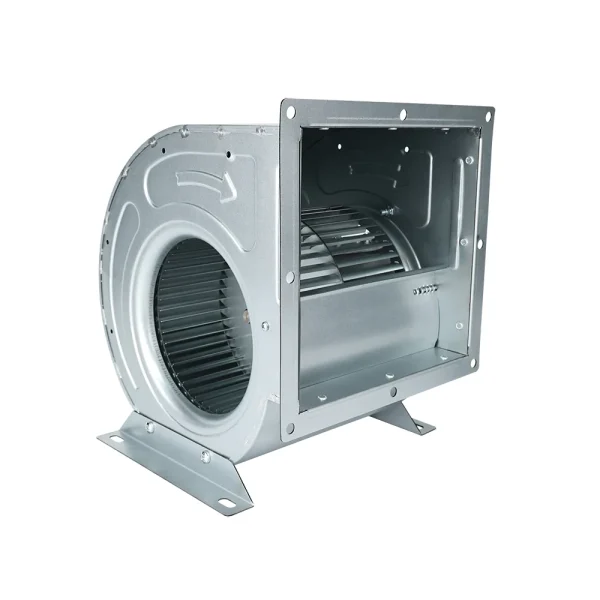

LWDD8-7-EC DD Series EC Direct Drive Centrifugal Blower Ø203 mm

Ø203 mm | EC | Max airflow 2,734 m³/h | Max static pressure 467 Pa

SKU: LWDD8-7-EC Categories: Commercial Centrifugal Blowers, Impeller Ø178–254 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFDatasheet (PDF)electrical & performance data

All files for LWDD8-7-EC4 files · direct download

WEBPDimensional drawing WEBPPerformance curve WEBPWiring diagram

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Convection ovens Tunnel ovens Commercial dryers Industrial AHUs All industries →

Proven in projects

Drying, heat treatment & ovens Range hoods & ovens Cleanroom build All case studies →

Engineering files (on request)

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.

EXB2D drawing (CAXA EXB)5.7 MBRequest →

CAD models contain the blade geometry and are not publicly downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

Get a quote · LWDD8-7-EC

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWDD8-7-ECdatasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Performance curve (P-Q) LWDD8-7-EC

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 220 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

Drawing, Curve & Wiring LWDD8-7-EC

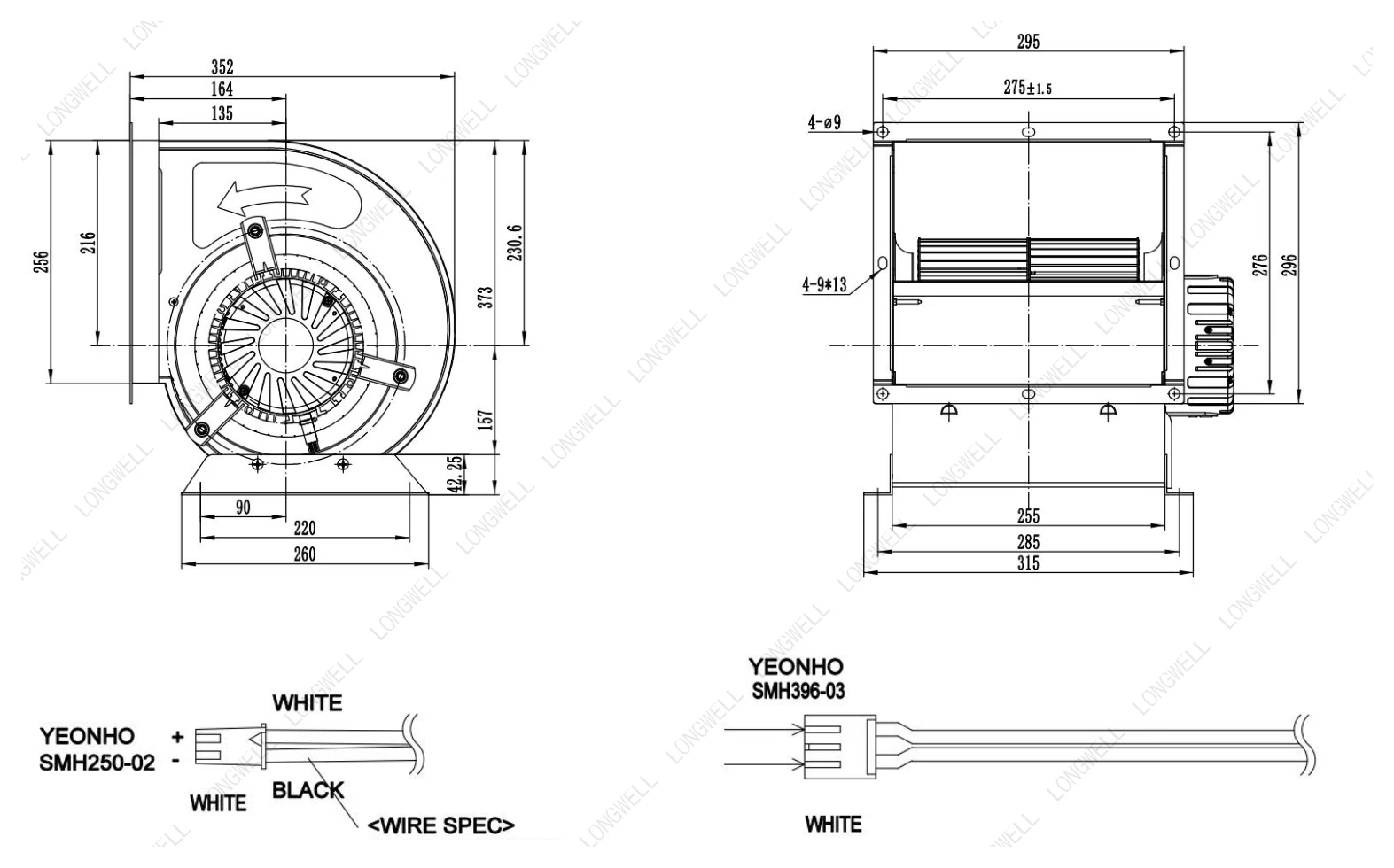

LWDD8-7-EC Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

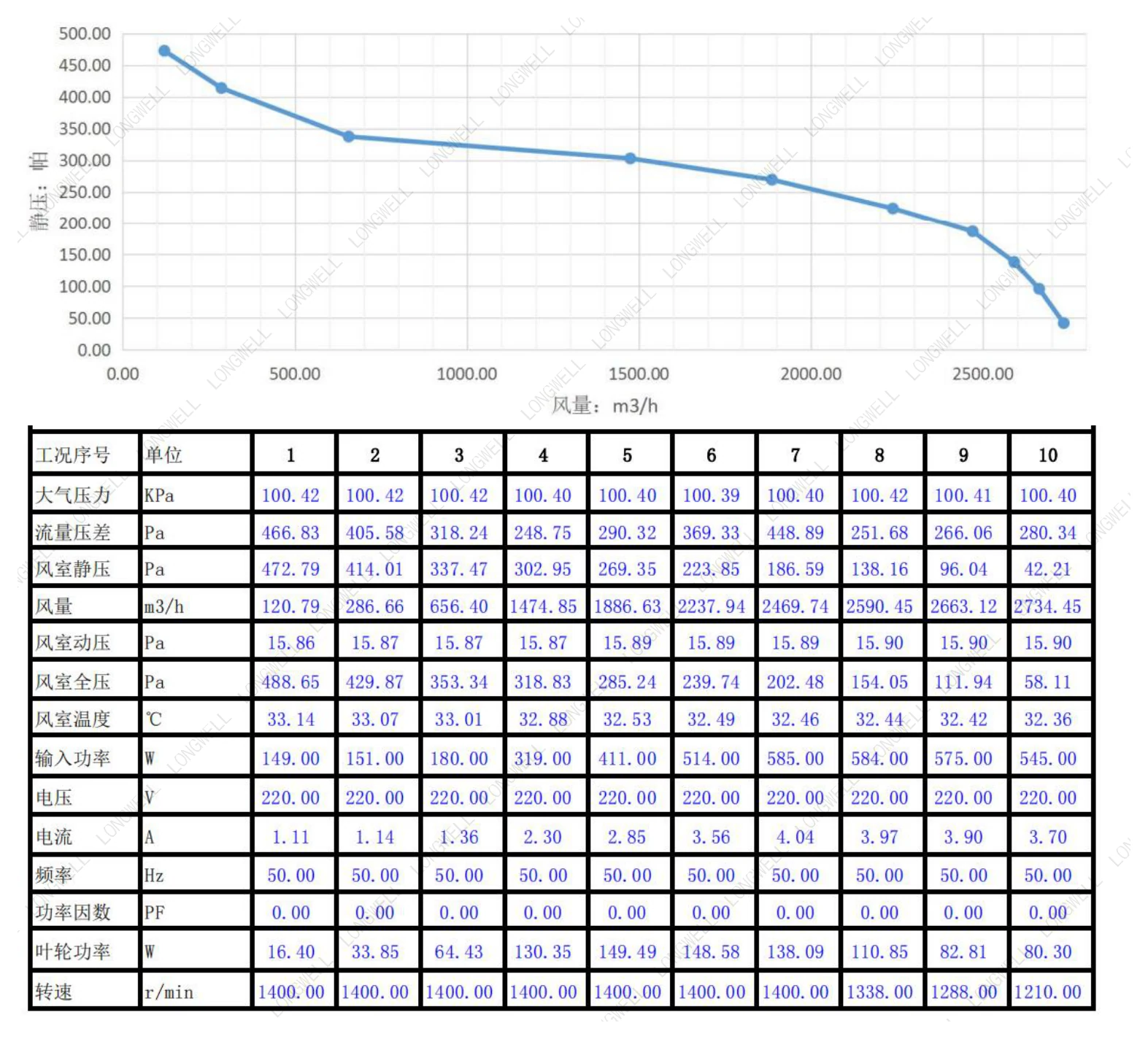

LWDD8-7-EC Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

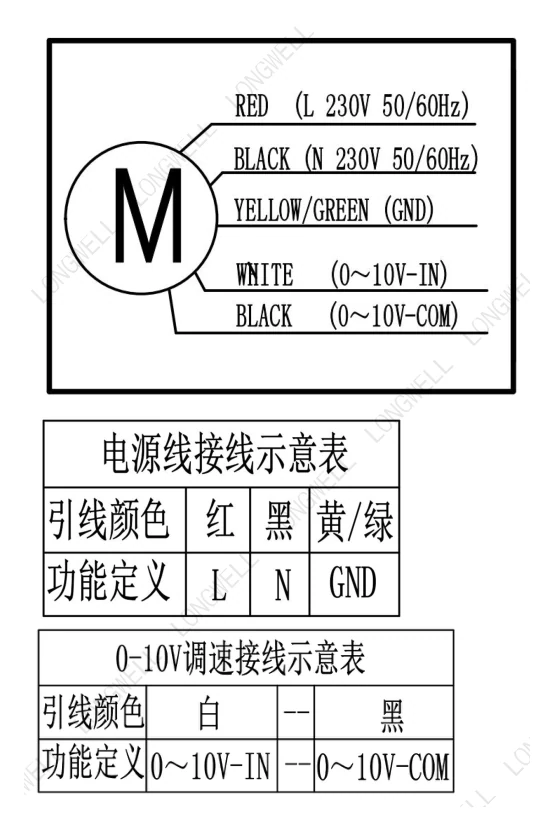

LWDD8-7-EC Wiring diagram — **Wiring diagram**Lead colours and terminal assignment; TK = motor thermal contact.

Files for LWDD8-7-EC: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWDD8-7-EC

LWDD8-7-EC is a LONGWELL DD Series EC Direct Drive Centrifugal Blower from the Impeller Ø178–254 mm range, impeller Ø203 mm, rated 220 V EC, maximum airflow 2,734 m³/h, maximum static pressure 467 Pa, input power 585 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.

Technical data

Model	LWDD8-7-EC
Motor type	EC
Phase	1-phase
Rated voltage	220 V
Frequency	50 Hz
Input power	585 W
Speed	1,440 rpm
Max. airflow	2,734 m³/h
Max. static pressure	467 Pa
Storage temperature	-25 ~ 80℃
Humidity	0 ~ 50 % RH
Altitude	< 1000m
Impeller diameter	Ø203 mm
Dimensions	8-7
Impeller material	Volute assembly and impeller assembly are galvanized sheet
Balance grade	G6.3
Vibration standard	JB/T 8689
Service life	30,000Hours(L10), At 40 °Croom, humidity 15%~50%RH

Typical applications

Commercial kitchen extraction
Ventilation units and AHUs
Process and fume extraction

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
