LWFD3 series dimensional drawing (shared by several models)

LWFD3G133-092DZ-02 P-Q performance curve

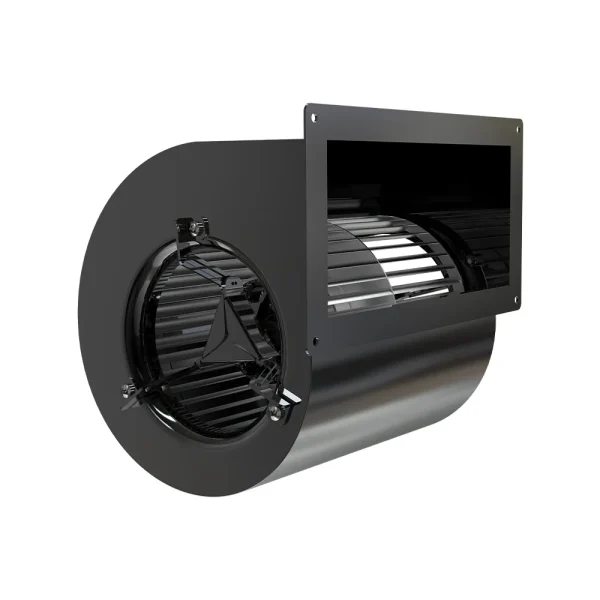

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.

ImpellerØ133 mm5.2 in
Max airflow679.8 m³/h400 CFM
Max static pressure329.6 Pa1.32 in. wg
Voltage310 V
Speed1,550 rpm
Input power80 W
Noise69 dB(A)

LWFD3G133-092DZ-02 DC Dual Inlet Forward Centrifugal Blower Ø133 mm

Ø133 mm | DC | Max airflow 679.8 m³/h | Max static pressure 329.6 Pa | 69 dB(A)

SKU: LWFD3G133-092DZ-02 Categories: Centrifugal Fans, Dual Inlet Forward Curved Blowers, Impeller Ø120–146 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · ETL · RoHS

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueDC DC Dual Inlet Forward Centrifugal Blower · SKU on PDF p. 11

All files for LWFD3G133-092DZ-024 files · direct download

PDFFull product catalogue · model on PDF p. 11 WEBPDimensional drawing (series)WEBPPerformance curve

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Range hoods Air heaters Fan coil units Appliances All industries →

Proven in projects

AHU & ventilation unit fans CRAH FanGrid retrofit Heat pump fan programme All case studies →

Get a quote · LWFD3G133-092DZ-02

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWFD3G133-092DZ-02datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Performance curve (P-Q) LWFD3G133-092DZ-02

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 310 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

Drawing & Curve LWFD3G133-092DZ-02

LWFD3G133-092DZ-02 Dimensional drawing (series) — **Dimensional drawing (series)**Series drawing from the catalogue; dimensions in mm apply to the size of this model as listed in the table.

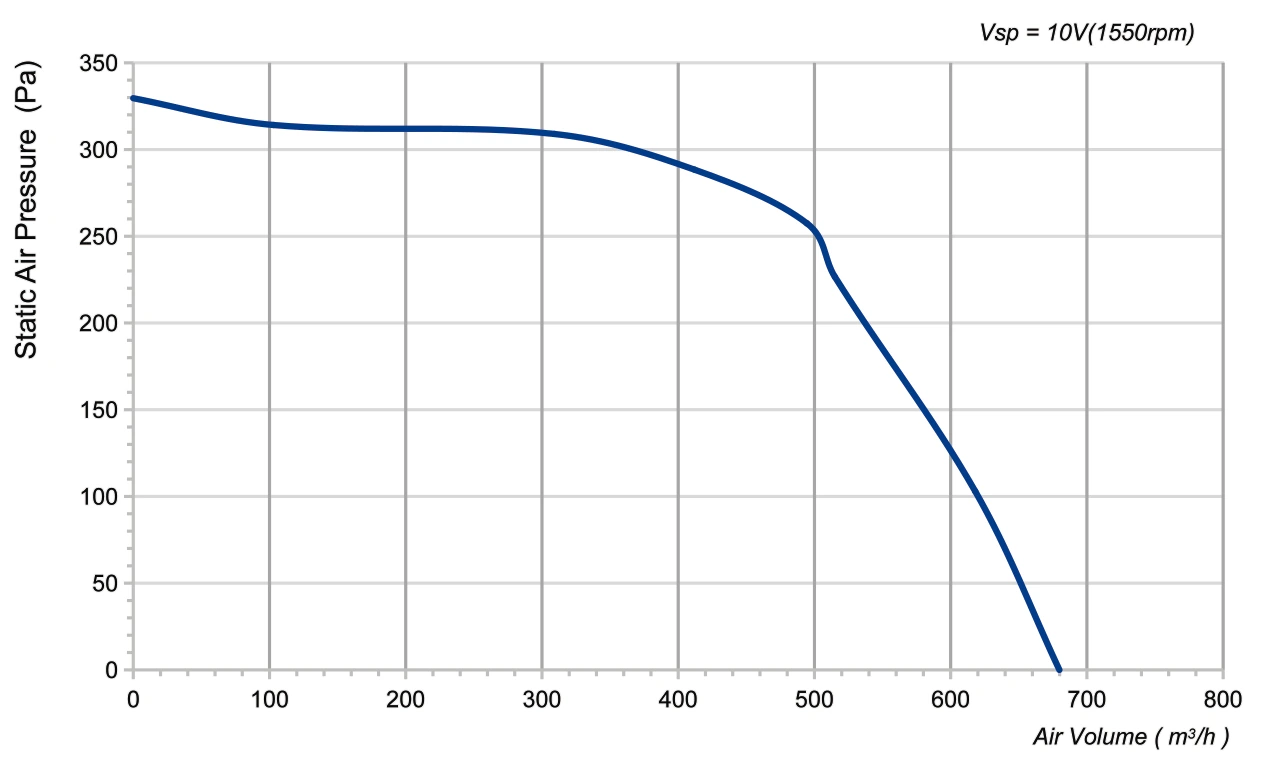

LWFD3G133-092DZ-02 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

Files for LWFD3G133-092DZ-02: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWFD3G133-092DZ-02

LWFD3G133-092DZ-02 is a LONGWELL DC Dual Inlet Forward Centrifugal Blower from the Dual Inlet Forward Curved Blowers range, impeller Ø133 mm, rated 310 V DC, maximum airflow 679.8 m³/h, maximum static pressure 329.6 Pa, noise 69 dB(A), input power 80 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model	LWFD3G133-092DZ-02
Series	LWFD3G133
Motor type	DC
Rated voltage	310 V
Current	0.26 A
Input power	80 W
Speed	1,550 rpm
Max. airflow	679.8 m³/h
Max. static pressure	329.6 Pa
Noise	69 dB(A)
Ambient temperature	-30 ~ 60 °C
Impeller diameter	Ø133 mm
Rotor diameter	92 mm
Insulation class	F
Bearing	Maintenance-free ball bearings
Duty	S1

Typical applications

Air handling units (AHU) and rooftop units (RTU)
Data-center CRAH / CRAC units and fan walls
Dust extraction and process ventilation
Fan filter units and air purifiers

Series LWFD3G133: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
