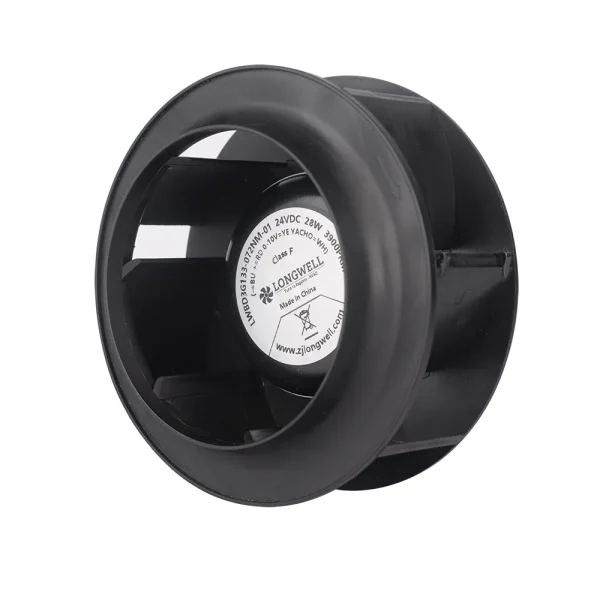

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.

ImpellerØ133 mm5.2 in
Max airflow386 m³/h230 CFM
Max static pressure335 Pa1.34 in. wg
Voltage24 V
Speed3,900 rpm
Input power28 W
Noise65 dB(A)

LWBD3G133-072NM-02 DC Backward Curved Centrifugal Fan Ø133 mm

Ø133 mm | DC | Max airflow 386 m³/h | Max static pressure 335 Pa | 65 dB(A)

SKU: LWBD3G133-072NM-02 Categories: Backward Curved Centrifugal Fans, Centrifugal Fans, Impeller Ø133–225 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · ETL · RoHS

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueDC DC Backward centrifugal fans · SKU on PDF p. 7

All files for LWBD3G133-072NM-026 files · direct download

PDFFull product catalogue · model on PDF p. 7 WEBPDimensional drawing WEBPPerformance curve WEBPWiring diagram DOCXDatasheet

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Air conditioning Air handling units FanGrid arrays FFU / EFU All industries →

Proven in projects

AHU & ventilation unit fans CRAH FanGrid retrofit Heat pump fan programme All case studies →

Engineering files (on request)

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.

EXB2D drawing (CAXA EXB)3.2 MBRequest →

CAD models contain the blade geometry and are not publicly downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

Get a quote · LWBD3G133-072NM-02

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWBD3G133-072NM-02datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Performance curve (P-Q) LWBD3G133-072NM-02

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 24 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

Drawing, Curve & Wiring LWBD3G133-072NM-02

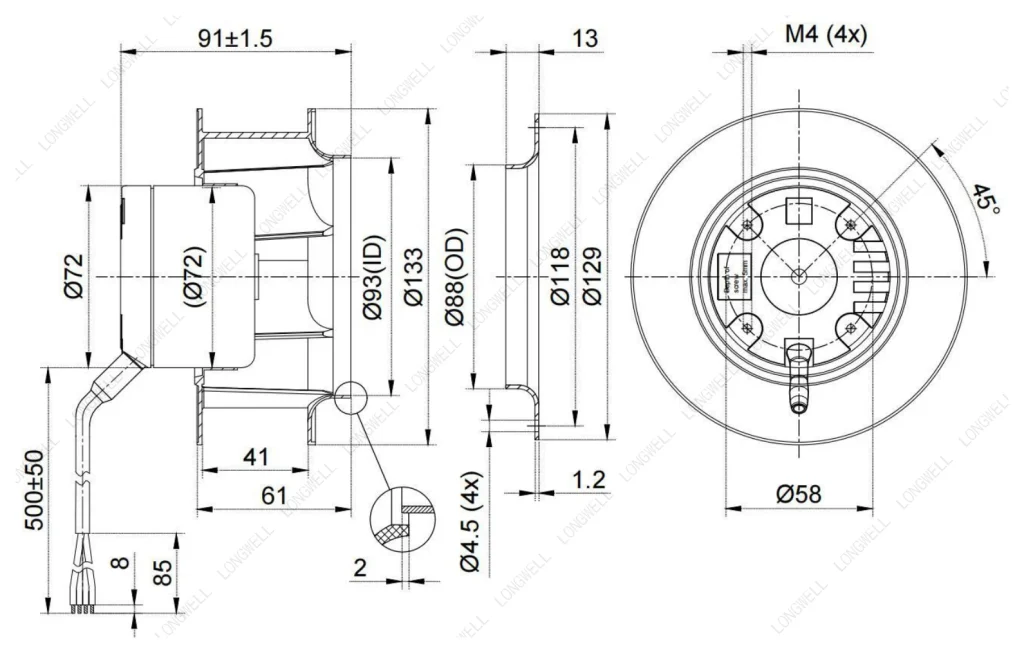

LWBD3G133-072NM-02 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

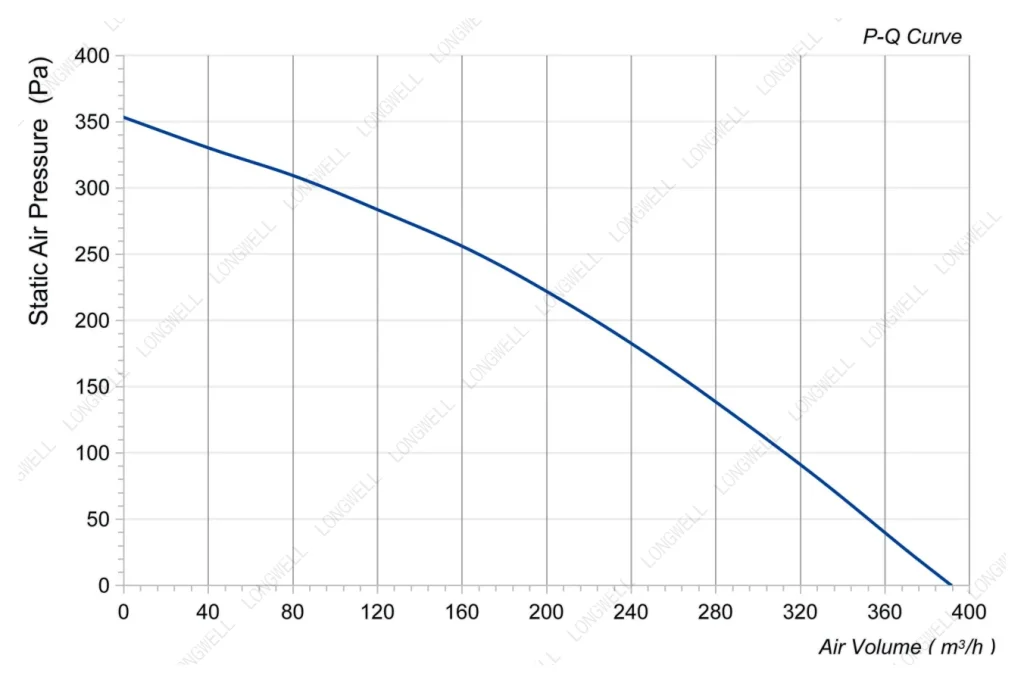

LWBD3G133-072NM-02 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

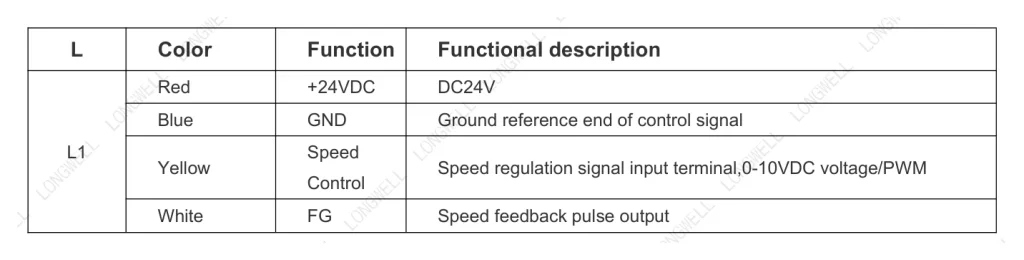

LWBD3G133-072NM-02 Wiring diagram — **Wiring diagram**Lead colours and terminal assignment; TK = motor thermal contact.

Files for LWBD3G133-072NM-02: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWBD3G133-072NM-02

LWBD3G133-072NM-02 is a LONGWELL DC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø133 mm, rated 24 V DC, maximum airflow 386 m³/h, maximum static pressure 335 Pa, noise 65 dB(A), input power 28 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model	LWBD3G133-072NM-02
Series	LWBD3G133
Motor type	DC
Rated voltage	24 V
Voltage range	16-32
Current	1.17 A
Input power	28 W
Speed	3,900 rpm
Max. airflow	386 m³/h
Max. airflow (CFM)	230 CFM
Max. static pressure	335 Pa
Noise	65 dB(A)
Ambient temperature	-25 ~ 60 °C
Storage temperature	-40 ~ 75℃
Humidity	5 ~ 90 % RH
Altitude	< 1000m
Impeller diameter	Ø133 mm
Rotor diameter	72 mm
Impeller material	Propylene with glass-fiber reinforced( Impeller )
Protection class	IP42
Insulation class	B
Bearing	Maintenance-free deep groove ball bearings
Duty	S1
Balance grade	G6.3
Vibration standard	JB/T 8689
Service life	50,000Hours(L10), At 40 °Croom, humidity 15%~65%RH
Rotation	Clockwise,seen on rotor

Typical applications

Air handling units (AHU) and rooftop units (RTU)
Data-center CRAH / CRAC units and fan walls
Dust extraction and process ventilation
Fan filter units and air purifiers

Series LWBD3G133: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
