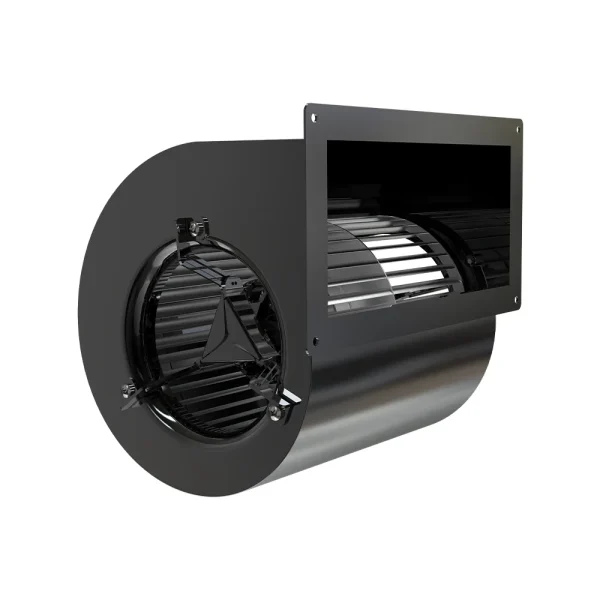

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.

ImpellerØ133 mm5.2 in
Max airflow721 m³/h424 CFM
Max static pressure515 Pa2.07 in. wg
Voltage24 V
Speed1,780 rpm
Input power105 W
Noise62 dB(A)

LWFD3G133-072DM-02 DC Dual Inlet Forward Centrifugal Blower Ø133 mm

Ø133 mm | DC | Max airflow 721 m³/h | Max static pressure 515 Pa | 62 dB(A)

SKU: LWFD3G133-072DM-02 Categories: Centrifugal Fans, Dual Inlet Forward Curved Blowers, Impeller Ø120–146 mm

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · ETL · RoHS

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueDC DC Dual Inlet Forward Centrifugal Blower · SKU on PDF p. 7

All files for LWFD3G133-072DM-024 files · direct download

PDFFull product catalogue · model on PDF p. 7 WEBPDimensional drawing (series)WEBPPerformance curve

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Proven in: AHU & ventilation unit fans · CRAH FanGrid retrofit · Heat pump fan programme — all case studies on longwellfans.com

Typical applications: Range hoods · Air heaters · Fan coil units · Appliances — all industries

Get a quote · LWFD3G133-072DM-02

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWFD3G133-072DM-02datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 12-month warranty
How ordering works →

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 24 V). Data version: catalogue 2026-08. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

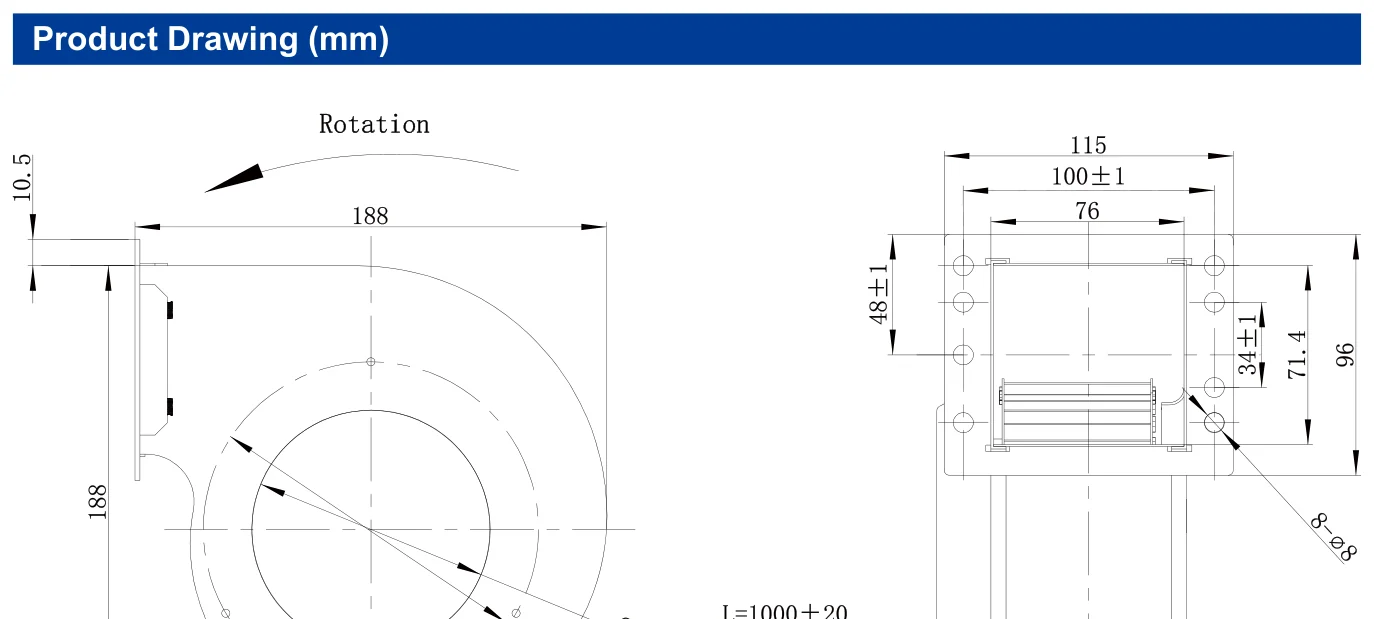

LWFD3G133-072DM-02 Dimensional drawing (series) — **Dimensional drawing (series)**Series drawing from the catalogue; dimensions in mm apply to the size of this model as listed in the table.

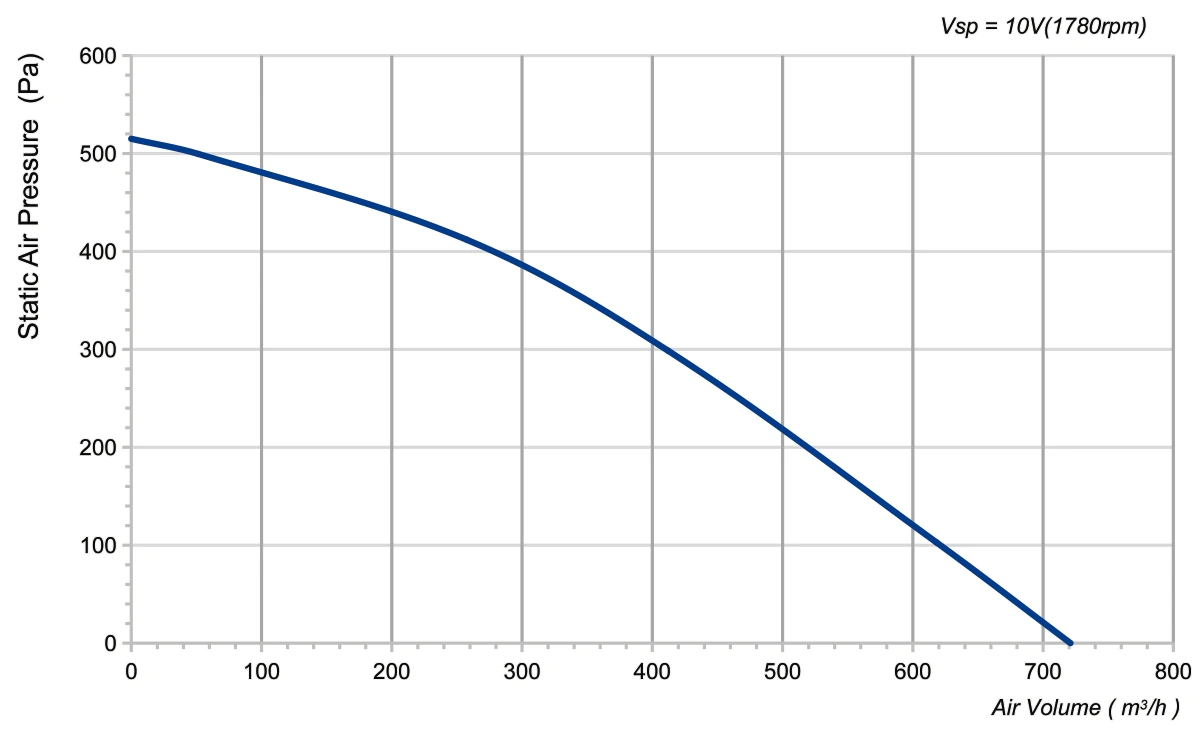

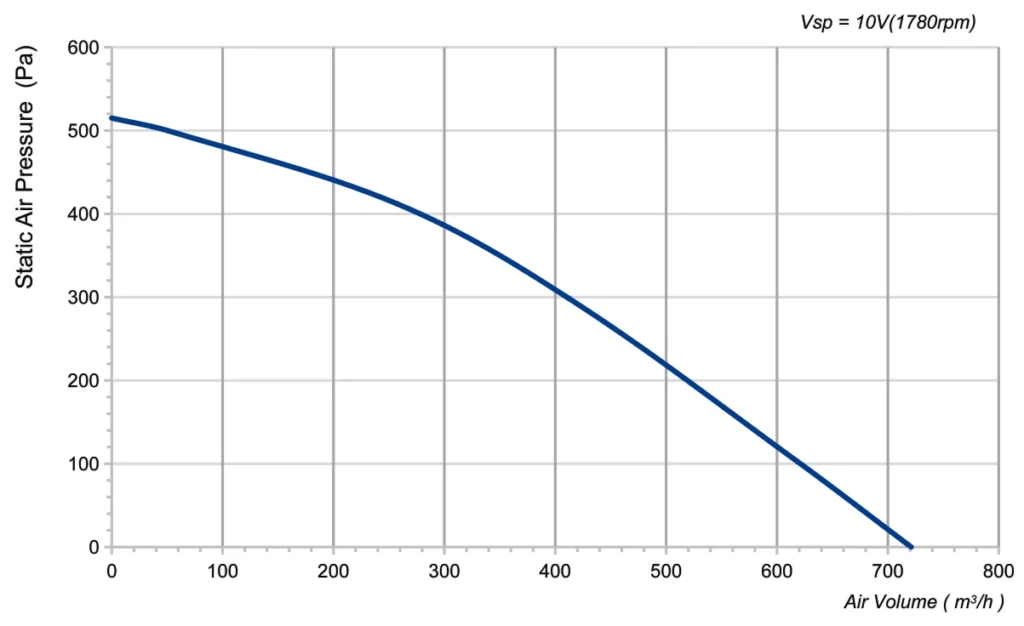

LWFD3G133-072DM-02 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.
