Frame size40 mm1.6 in
Max airflow4.2 m³/h2 CFM
Max static pressure58 Pa0.23 in. wg
Voltage24 V
Speed8,000 rpm
Input power1.92 W
Noise32.6 dB(A)

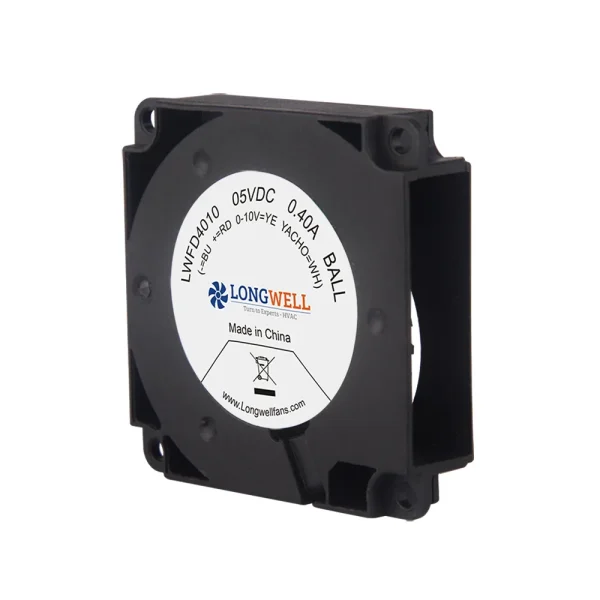

LWFD4010MH-02 DC Centrifugal Blower 40 mm

40 mm | DC | Max airflow 4.2 m³/h | Max static pressure 58 Pa | 32.6 dB(A)

SKU: LWFD4010MH-02 Categories: Cooling Fans & Blowers, DC Centrifugal Blowers, Frame Ø40–60 mm

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · ETL · RoHS

View RFQ →

Get a quote · LWFD4010MH-02

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com All files for LWFD4010MH-02drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

LWFD4010MH-02 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

LWFD4010MH-02 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

Need a non-standard size or another format? Ask an engineer or search the download center.

LWFD4010MH-02 is a LONGWELL DC Centrifugal Blower from the DC Centrifugal Blowers range, frame size 40 mm, rated 24 V DC, maximum airflow 4.2 m³/h, maximum static pressure 58 Pa, noise 32.6 dB(A), input power 1.92 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model	LWFD4010MH-02
Series	LWFD4010
Motor type	DC
Rated voltage	24 V
Current	0.08 A
Input power	1.92 W
Speed	8,000 rpm
Max. airflow	4.2 m³/h
Max. static pressure	58 Pa
Noise	32.6 dB(A)
Frame size	40 mm
Dimensions	40x10mm
Impeller material	Plastic(UL94-VO)

Typical applications

Power supplies and inverters
Telecom and server cabinets
Battery packs and EV chargers
Medical and laboratory equipment

Series LWFD4010: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same frame size (40 mm · DC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWFD4010MH-02 this model	4.2 m³/h	58 Pa	8,000 rpm	1.92 W	32.6 dB(A)	24 V
LWCD-40250MN-07	87 m³/h	23 Pa	2,400 rpm	2.64 W	35 dB(A)	24 V	View
LWCD-40290MN-07	104 m³/h	24 Pa	2,400 rpm	3.12 W	35 dB(A)	24 V	View
LWCD-40290LN-06	104 m³/h	24 Pa	2,400 rpm	2.4 W	35 dB(A)	12 V	View
LWCD-40350MN-07	121 m³/h	24 Pa	2,400 rpm	3.6 W	36 dB(A)	24 V	View
LWCD-40350LN-06	121 m³/h	24 Pa	2,400 rpm	2.88 W	36 dB(A)	12 V	View
LWCD-40420MN-07	146 m³/h	25 Pa	2,400 rpm	4.08 W	37 dB(A)	24 V	View
LWCD-40420LN-06	146 m³/h	25 Pa	2,400 rpm	3.48 W	37 dB(A)	12 V	View
LWCD-40530MN-06	176 m³/h	25 Pa	2,400 rpm	4.56 W	37 dB(A)	24 V	View
LWCD-40610MN-06	203 m³/h	26 Pa	2,400 rpm	5.04 W	37 dB(A)	24 V	View
LWCD-40700MN-06	232 m³/h	26 Pa	2,400 rpm	5.52 W	38 dB(A)	24 V	View
LWCD-40800MN-06	236 m³/h	25 Pa	2,000 rpm	6 W	35 dB(A)	24 V	View
LWCD-40854MN-06	252 m³/h	26 Pa	2,000 rpm	6.72 W	35 dB(A)	24 V	View
LWCD-40920MN-06	272 m³/h	26 Pa	2,000 rpm	7.44 W	36 dB(A)	24 V	View
LWCD-401055MN-06	311 m³/h	27 Pa	2,000 rpm	8.4 W	36 dB(A)	24 V	View
