Frame size60 mm2.4 in
Max airflow16.8 m³/h10 CFM
Max static pressure213 Pa0.86 in. wg
Voltage12 V
Speed5,000 rpm
Input power3.6 W
Noise43.9 dB(A)

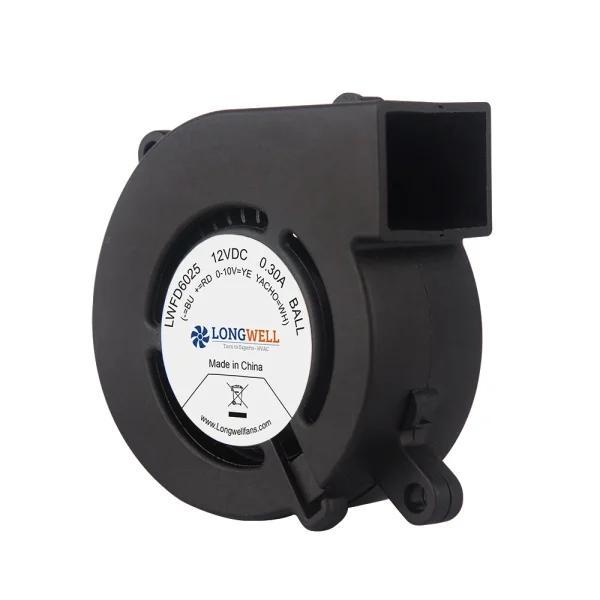

LWFD6025LD-05 DC Centrifugal Blower 60 mm

60 mm | DC | Max airflow 16.8 m³/h | Max static pressure 213 Pa | 43.9 dB(A)

SKU: LWFD6025LD-05 Categories: Cooling Fans & Blowers, DC Centrifugal Blowers, Frame Ø40–60 mm

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · ETL · RoHS

Get a quote · LWFD6025LD-05

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com All files for LWFD6025LD-05drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

LWFD6025LD-05 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

LWFD6025LD-05 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

Need a non-standard size or another format? Ask an engineer or search the download center.

LWFD6025LD-05 is a LONGWELL DC Centrifugal Blower from the DC Centrifugal Blowers range, frame size 60 mm, rated 12 V DC, maximum airflow 16.8 m³/h, maximum static pressure 213 Pa, noise 43.9 dB(A), input power 3.6 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model	LWFD6025LD-05
Series	LWFD6025
Motor type	DC
Rated voltage	12 V
Current	0.3 A
Input power	3.6 W
Speed	5,000 rpm
Max. airflow	16.8 m³/h
Max. static pressure	213 Pa
Noise	43.9 dB(A)
Frame size	60 mm
Dimensions	60x25mm
Impeller material	Plastic(UL94-VO)

Typical applications

Power supplies and inverters
Telecom and server cabinets
Battery packs and EV chargers
Medical and laboratory equipment

Series LWFD6025: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same frame size (60 mm · DC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWFD6025LD-05 this model	16.8 m³/h	213 Pa	5,000 rpm	3.6 W	43.9 dB(A)	12 V
LWFD6025HD-05	16.8 m³/h	213 Pa	5,000 rpm	4.8 W	43.9 dB(A)	48 V	View
LWFD6025MD-05	16.8 m³/h	213 Pa	5,000 rpm	4.8 W	43.9 dB(A)	24 V	View
LWFD6025HL-04	18.6 m³/h	257 Pa	5,500 rpm	7.2 W	46 dB(A)	48 V	View
LWFD6025ML-04	18.6 m³/h	257 Pa	5,500 rpm	6 W	46 dB(A)	24 V	View
LWFD6025LL-04	18.6 m³/h	257 Pa	5,500 rpm	4.8 W	46 dB(A)	12 V	View
LWFD6025HM-03	20.4 m³/h	306 Pa	6,000 rpm	9.6 W	47.9 dB(A)	48 V	View
LWFD6025MM-03	20.4 m³/h	306 Pa	6,000 rpm	7.2 W	47.9 dB(A)	24 V	View
LWFD6025LM-03	20.4 m³/h	306 Pa	6,000 rpm	6 W	47.9 dB(A)	12 V	View
LWFD6025HH-02	22.2 m³/h	359 Pa	6,500 rpm	12 W	49.6 dB(A)	48 V	View
LWFD6025MH-02	22.2 m³/h	359 Pa	6,500 rpm	8.4 W	49.6 dB(A)	24 V	View
LWFD6025LH-02	22.2 m³/h	359 Pa	6,500 rpm	7.2 W	49.6 dB(A)	12 V	View
LWFD6025HX-01	24 m³/h	417 Pa	7,000 rpm	14.4 W	51.2 dB(A)	48 V	View
LWFD6025MX-01	24 m³/h	417 Pa	7,000 rpm	9.6 W	51.2 dB(A)	24 V	View
LWFD6025LX-01	24 m³/h	417 Pa	7,000 rpm	8.4 W	51.2 dB(A)	12 V	View
