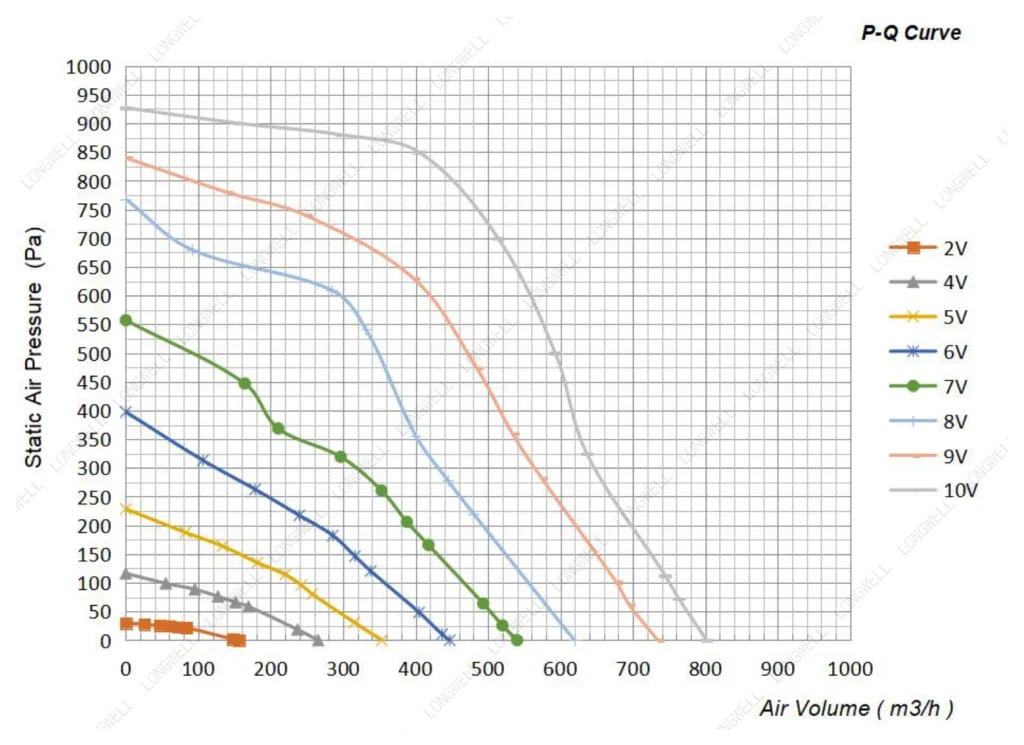

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ160 mm6.3 in
- Max airflow803 m³/h472 CFM
- Max static pressure927 Pa3.72 in. wg
- Voltage230 V
- Speed3,300 rpm
- Input power230 W
- Noise75 dB(A)
LWFE3G160-092SS-05 EC Single Inlet Forward Centrifugal Blower Ø160 mm
Ø160 mm | EC | Max airflow 803 m³/h | Max static pressure 927 Pa | 75 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Engineering files (on request)

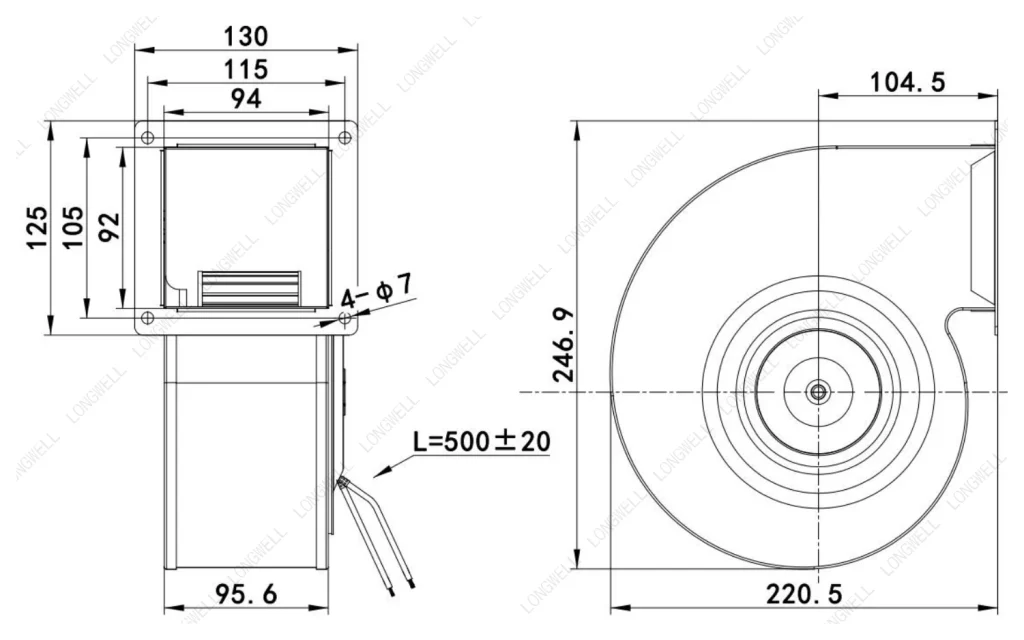

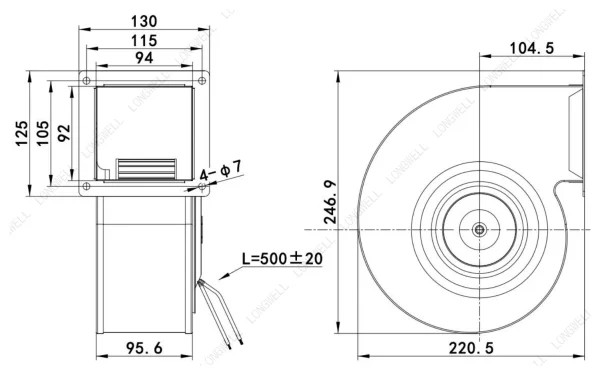

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.
Downloads for LWFE3G160-092SS-05
PDFDatasheetNeed a non-standard size or another format? Ask an engineer or search the download center.

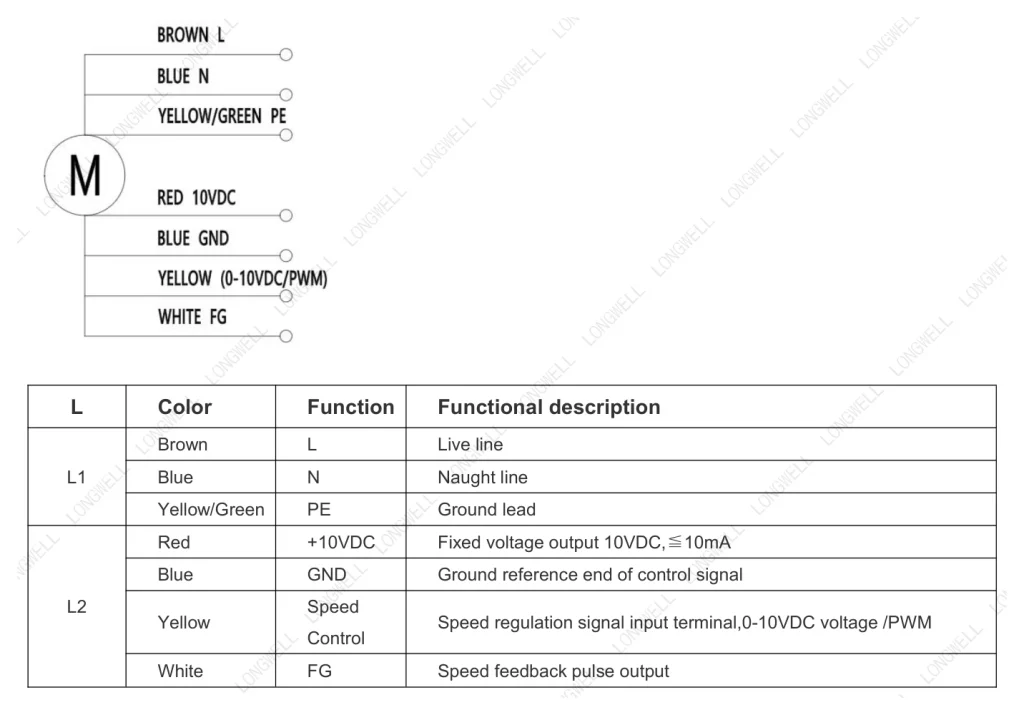

LWFE3G160-092SS-05 is a LONGWELL EC Single Inlet Forward Centrifugal Blower from the Single Inlet Forward Curved Blowers range, impeller Ø160 mm, rated 230 V EC, maximum airflow 803 m³/h, maximum static pressure 927 Pa, noise 75 dB(A), input power 230 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWFE3G160-092SS-05 |
|---|---|
| Series | LWFE3G160 |
| Motor type | EC |
| Phase | 1-phase |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Current | 1.65 A |
| Input power | 230 W |
| Speed | 3,300 rpm |
| Max. airflow | 803 m³/h |
| Max. airflow (CFM) | 472 CFM |
| Max. static pressure | 927 Pa |
| Noise | 75 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Storage temperature | -25 ~ 70℃ |
| Humidity | 5 ~ 85% RH |
| Altitude | < 1000m |
| Impeller diameter | Ø160 mm |
| Rotor diameter | 92 |
| Impeller material | Galvanised sheet steel (Impeller) |
| Protection class | IP55 |
| Insulation class | B |
| Bearing | Maintenance-free deep groove ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 40,000Hours(L10). At 40℃room, humidity 15%~65%RH |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWFE3G160: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø160 mm · EC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWFE3G160-092SS-05 this model | 803 m³/h | 927 Pa | 3,300 rpm | 230 W | 75 dB(A) | 230 V | |
| LWFE3G160-072SS-03 | 597 m³/h | 876 Pa | 2,760 rpm | 115 W | 67 dB(A) | 230 V | View |
| LWFE3G160-072NS-01 | 639 m³/h | 906 Pa | 1,800 rpm | 115 W | 64 dB(A) | 230 V | View |
| LWFE3G160-072SS-06 | 639 m³/h | 906 Pa | 1,800 rpm | 115 W | 64 dB(A) | 230 V | View |
| LWFE3G160-072NS-02 | 649 m³/h | 989 Pa | 3,050 rpm | 155 W | 68 dB(A) | 230 V | View |
| LWFE3G160-072SS-04 | 649 m³/h | 989 Pa | 3,050 rpm | 155 W | 68 dB(A) | 230 V | View |
| LWFE3G160-092SS-02 | 666 m³/h | 773 Pa | 1,905 rpm | 143 W | — | 230 V | View |
| LWFE3G160-072SS-07 | 670 m³/h | 979 Pa | 3,050 rpm | 170 W | 67 dB(A) | 230 V | View |
| LWFE3G160-092SS-01 | 680 m³/h | 556 Pa | 2,500 rpm | 240 W | 72 dB(A) | 230 V | View |
| LWFE3G160-092NS-03 | 803 m³/h | 927 Pa | 3,300 rpm | 230 W | 75 dB(A) | 230 V | View |
| LWFE3G160-092SS-08 | 814 m³/h | 824 Pa | 3,370 rpm | 230 W | 73 dB(A) | 230 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
