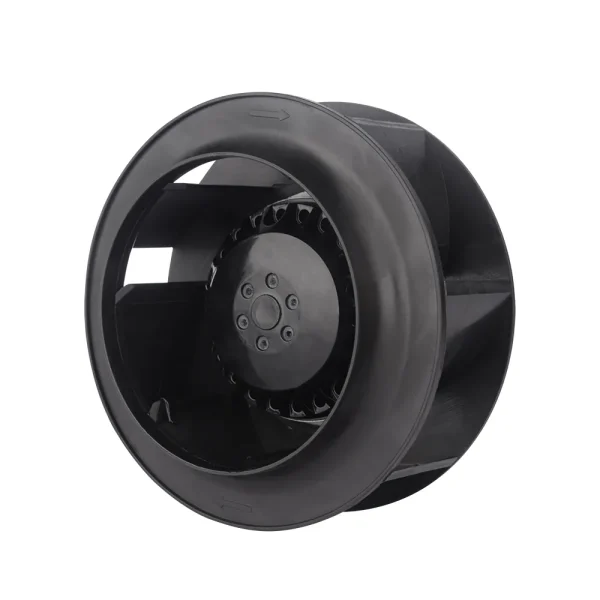

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.

ImpellerØ155 mm6.1 in
Max airflow464 m³/h273 CFM
Max static pressure216 Pa0.87 in. wg
Voltage230 V
Speed2,650 rpm
Input power32 W
Noise61 dB(A)

LWBA2E155-092NS-01 AC Backward Curved Centrifugal Fan Ø155 mm

Ø155 mm | AC | Max airflow 464 m³/h | Max static pressure 216 Pa | 61 dB(A)

SKU: LWBA2E155-092NS-01 Categories: Backward Curved Centrifugal Fans, Centrifugal Fans, Impeller Ø133–225 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueAC AC Backward centrifugal fans · SKU on PDF p. 7

All files for LWBA2E155-092NS-013 files · direct download

PDFFull product catalogue · model on PDF p. 7 WEBPDimensional drawing

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Air conditioning Air handling units FanGrid arrays FFU / EFU All industries →

Proven in projects

AHU & ventilation unit fans CRAH FanGrid retrofit Heat pump fan programme All case studies →

Get a quote · LWBA2E155-092NS-01

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWBA2E155-092NS-01datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Performance curve (P-Q) LWBA2E155-092NS-01

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 230 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

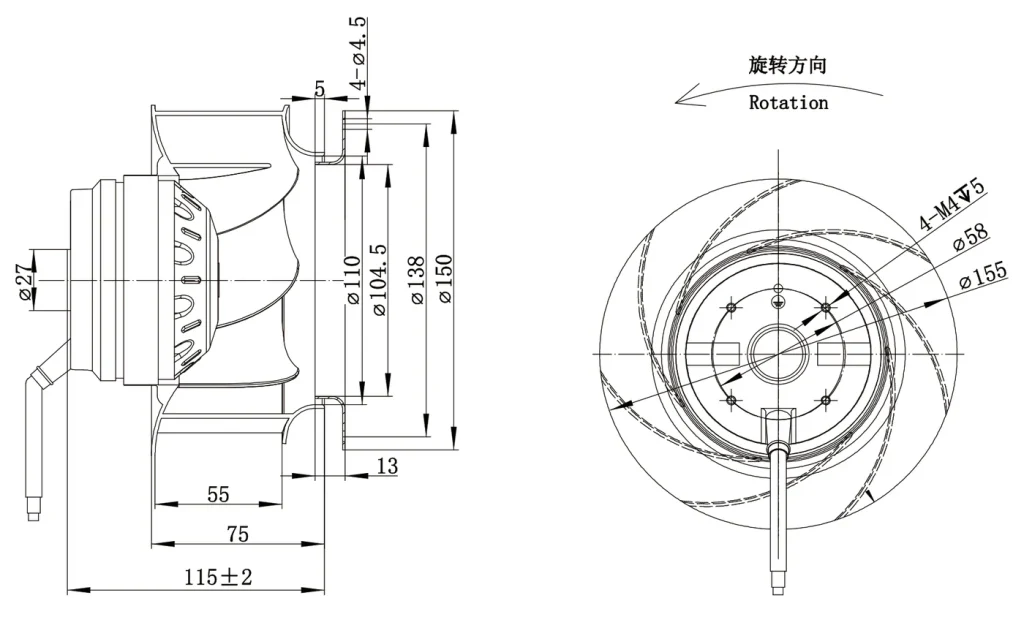

Dimensional drawing LWBA2E155-092NS-01

LWBA2E155-092NS-01 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

Files for LWBA2E155-092NS-01: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWBA2E155-092NS-01

LWBA2E155-092NS-01 is a LONGWELL AC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø155 mm, rated 230 V AC, maximum airflow 464 m³/h, maximum static pressure 216 Pa, noise 61 dB(A), input power 32 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWBA2E155-092NS-01
Series	LWBA2E155
Motor type	AC
Phase	1-phase
Rated voltage	230 V
Frequency	50 Hz
Current	0.24 A
Input power	32 W
Speed	2,650 rpm
Max. airflow	464 m³/h
Max. static pressure	216 Pa
Noise	61 dB(A)
Ambient temperature	-40 ~ 65 °C
Impeller diameter	Ø155 mm
Rotor diameter	92 mm
Impeller material	Plastic PA66
Protection class	IP44
Insulation class	F
Bearing	Maintenance-free ball bearings
Duty	S1
Rotation	Clockwise,seen on rotor

Typical applications

Air handling units (AHU) and rooftop units (RTU)
Data-center CRAH / CRAC units and fan walls
Dust extraction and process ventilation
Fan filter units and air purifiers

Series LWBA2E155: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
