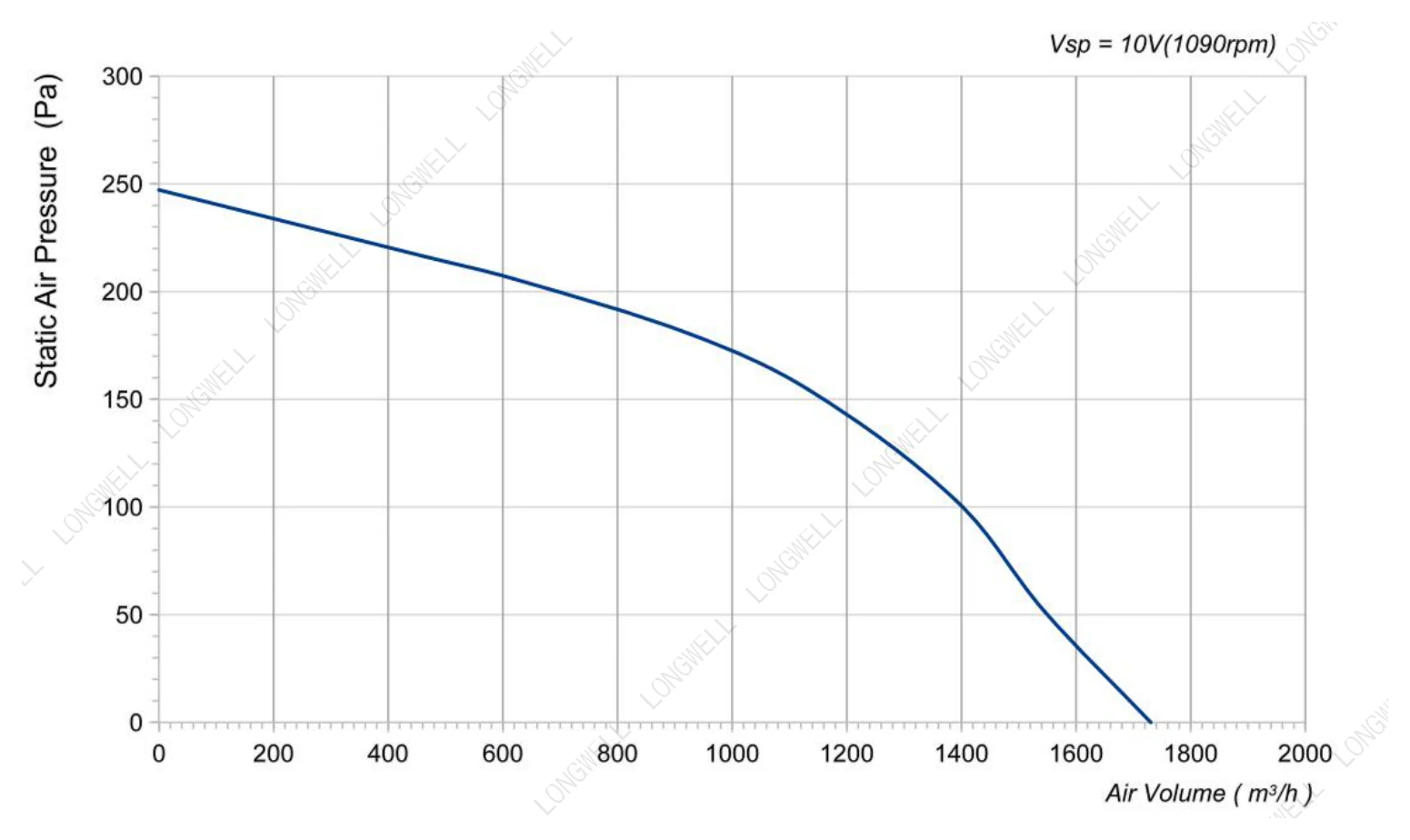

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ180 mm
- Max airflow1,730 m³/h
- Max static pressure247 Pa
- Voltage230 V
- Speed1,090 rpm
- Input power165 W
- Noise63 dB(A)

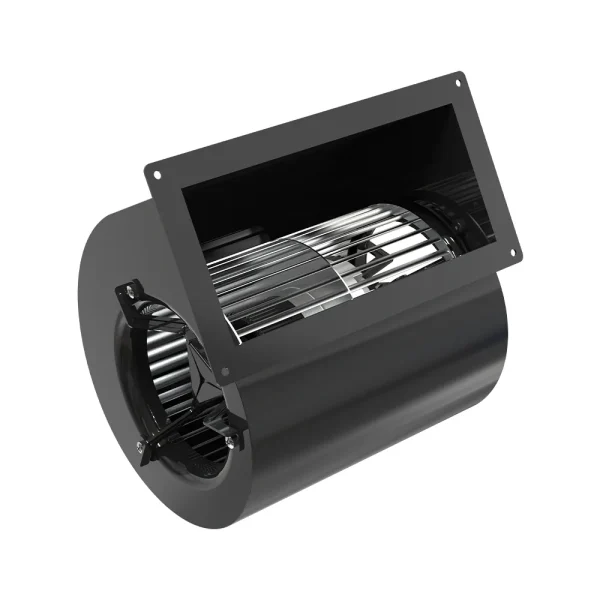

LWFE3G180-092DS-02 EC Dual Inlet Forward Centrifugal Blower Ø180 mm
Ø180 mm | EC | Max airflow 1,730 m³/h | Max static pressure 247 Pa | 63 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Downloads for LWFE3G180-092DS-02
PDFDatasheetNeed a non-standard size or another format? Ask an engineer or search the download center.
LWFE3G180-092DS-02 is a LONGWELL EC Dual Inlet Forward Centrifugal Blower from the Dual Inlet Forward Curved Blowers range, impeller Ø180 mm, rated 230 V EC, maximum airflow 1,730 m³/h, maximum static pressure 247 Pa, noise 63 dB(A), input power 165 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWFE3G180-092DS-02 |
|---|---|
| Series | LWFE3G180 |
| Motor type | EC |
| Phase | 1-phase |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Current | 1.22 A |
| Input power | 165 W |
| Speed | 1,090 rpm |
| Max. airflow | 1,730 m³/h |
| Max. airflow (CFM) | 1,030 CFM |
| Max. static pressure | 247 Pa |
| Noise | 63 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Storage temperature | -25 ~ 70℃ |
| Humidity | 0 ~ 85% RH |
| Altitude | < 1000m |
| Impeller diameter | Ø180 mm |
| Rotor diameter | 92 |
| Impeller material | Metal ( Impeller ) |
| Protection class | IP44 |
| Insulation class | B |
| Bearing | Two ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 40,000Hours(L10). At 40℃room, humidity 15%~65%RH |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWFE3G180: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø180 mm · EC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWFE3G180-092DS-02 this model | 1,730 m³/h | 247 Pa | 1,090 rpm | 165 W | 63 dB(A) | 230 V | |
| LWFE3G180-092SS-02 | 927 m³/h | 824 Pa | 2,200 rpm | 220 W | 68 dB(A) | 230 V | View |
| LWFE3G180-092SS-01 | 948 m³/h | 639 Pa | 1,650 rpm | 240 W | 68 dB(A) | 230 V | View |
| LWFE3G180-102DS-01 | 2,060 m³/h | 742 Pa | 1,550 rpm | 400 W | 74 dB(A) | 230 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
