Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ175 mm6.9 in
- Max airflow567 m³/h334 CFM
- Max static pressure368 Pa1.48 in. wg
- Voltage115 V
- Speed3,060 rpm
- Input power46.1 W
- Noise61.1 dB(A)

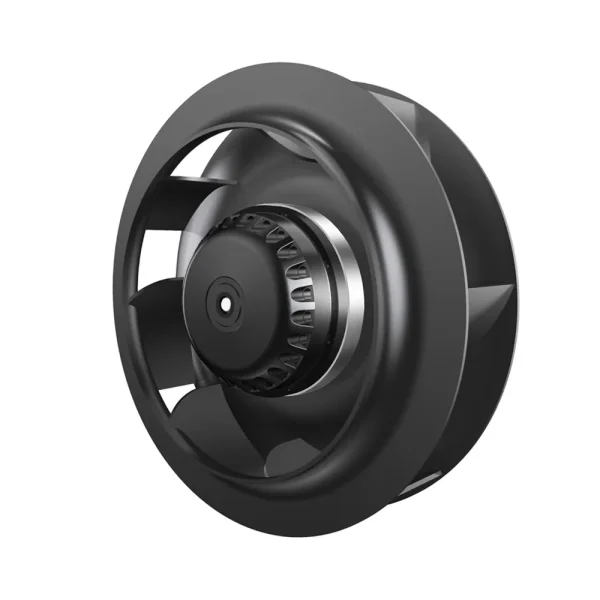

LWBA2E175-072NU-01 AC Backward Curved Centrifugal Fan Ø175 mm
Ø175 mm | AC | Max airflow 567 m³/h | Max static pressure 368 Pa | 61.1 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Engineering files (on request)
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.
Downloads for LWBA2E175-072NU-01
PDFDatasheet · 1.8 MBNeed a non-standard size or another format? Ask an engineer or search the download center.
LWBA2E175-072NU-01 is a LONGWELL AC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø175 mm, rated 115 V AC, maximum airflow 567 m³/h, maximum static pressure 368 Pa, noise 61.1 dB(A), input power 46.1 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWBA2E175-072NU-01 |
|---|---|
| Series | LWBA2E175 |
| Motor type | AC |
| Phase | 1-phase |
| Rated voltage | 115 V |
| Frequency | 60 Hz |
| Current | 0.42 A |
| Input power | 46.1 W |
| Speed | 3,060 rpm |
| Max. airflow | 567 m³/h |
| Max. static pressure | 368 Pa |
| Noise | 61.1 dB(A) |
| Ambient temperature | -40 ~ 65 °C |
| Impeller diameter | Ø175 mm |
| Rotor diameter | 72 |
| Impeller material | Plastic PA66 |
| Protection class | IP44 |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Rotation | Clockwise,seen on rotor |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWBA2E175: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø175 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWBA2E175-072NU-01 this model | 567 m³/h | 368 Pa | 3,060 rpm | 46.1 W | 61.1 dB(A) | 115 V | |
| LWBA2E175-092NS-05 | 443 m³/h | 288 Pa | 2,530 rpm | 52 W | 64 dB(A) | 230 V | View |
| LWBA2E175-092NS-03 | 443 m³/h | 288 Pa | 2,500 rpm | 52 W | 64 dB(A) | 230 V | View |
| LWBA2E175-072NS-02 | 504 m³/h | 294 Pa | 2,770 rpm | 36 W | 60.8 dB(A) | 230 V | View |
| LWBA2E175-092NS-04 | 505 m³/h | 386 Pa | 2,700 rpm | 66 W | 66 dB(A) | 230 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
