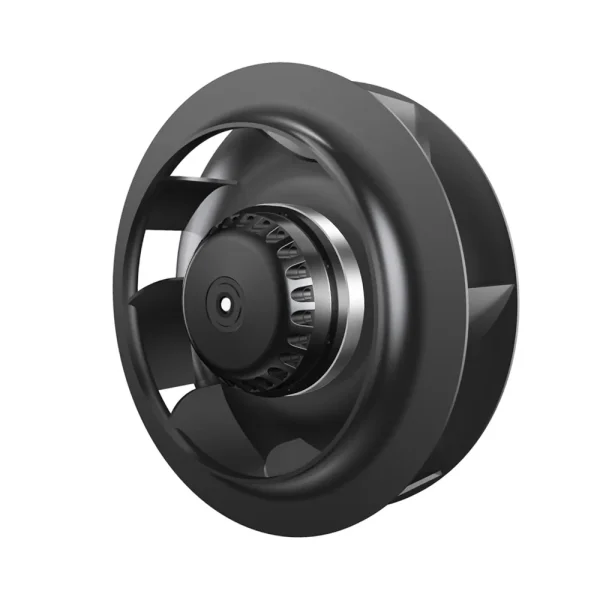

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.

ImpellerØ175 mm6.9 in
Max airflow443 m³/h264 CFM
Max static pressure288 Pa1.16 in. wg
Voltage230 V
Speed2,500 rpm
Input power52 W
Noise64 dB(A)

LWBA2E175-092NS-03 AC Backward Curved Centrifugal Fan Ø175 mm

Ø175 mm | AC | Max airflow 443 m³/h | Max static pressure 288 Pa | 64 dB(A)

SKU: LWBA2E175-092NS-03 Categories: Backward Curved Centrifugal Fans, Centrifugal Fans, Impeller Ø133–225 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueAC AC Backward centrifugal fans · SKU on PDF p. 8

All files for LWBA2E175-092NS-035 files · direct download

PDFFull product catalogue · model on PDF p. 8 WEBPDimensional drawing WEBPPerformance curve WEBPWiring diagram

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Air conditioning Air handling units FanGrid arrays FFU / EFU All industries →

Proven in projects

AHU & ventilation unit fans CRAH FanGrid retrofit Heat pump fan programme All case studies →

Engineering files (on request)

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.

STEP3D model (STEP)10 MBRequest →

CAD models contain the blade geometry and are not publicly downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

Get a quote · LWBA2E175-092NS-03

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWBA2E175-092NS-03datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Performance curve (P-Q) LWBA2E175-092NS-03

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 230 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

Drawing, Curve & Wiring LWBA2E175-092NS-03

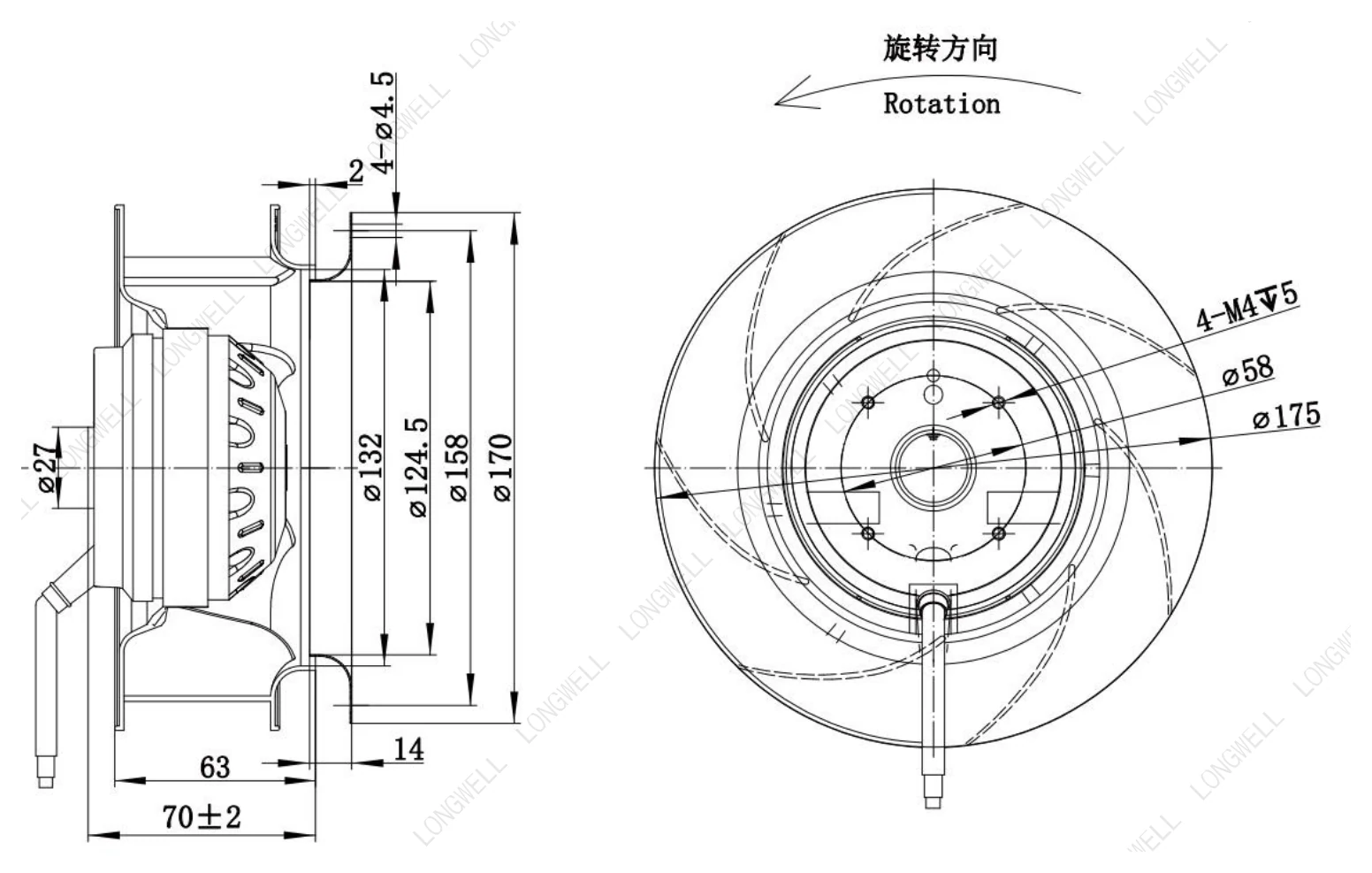

LWBA2E175-092NS-03 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

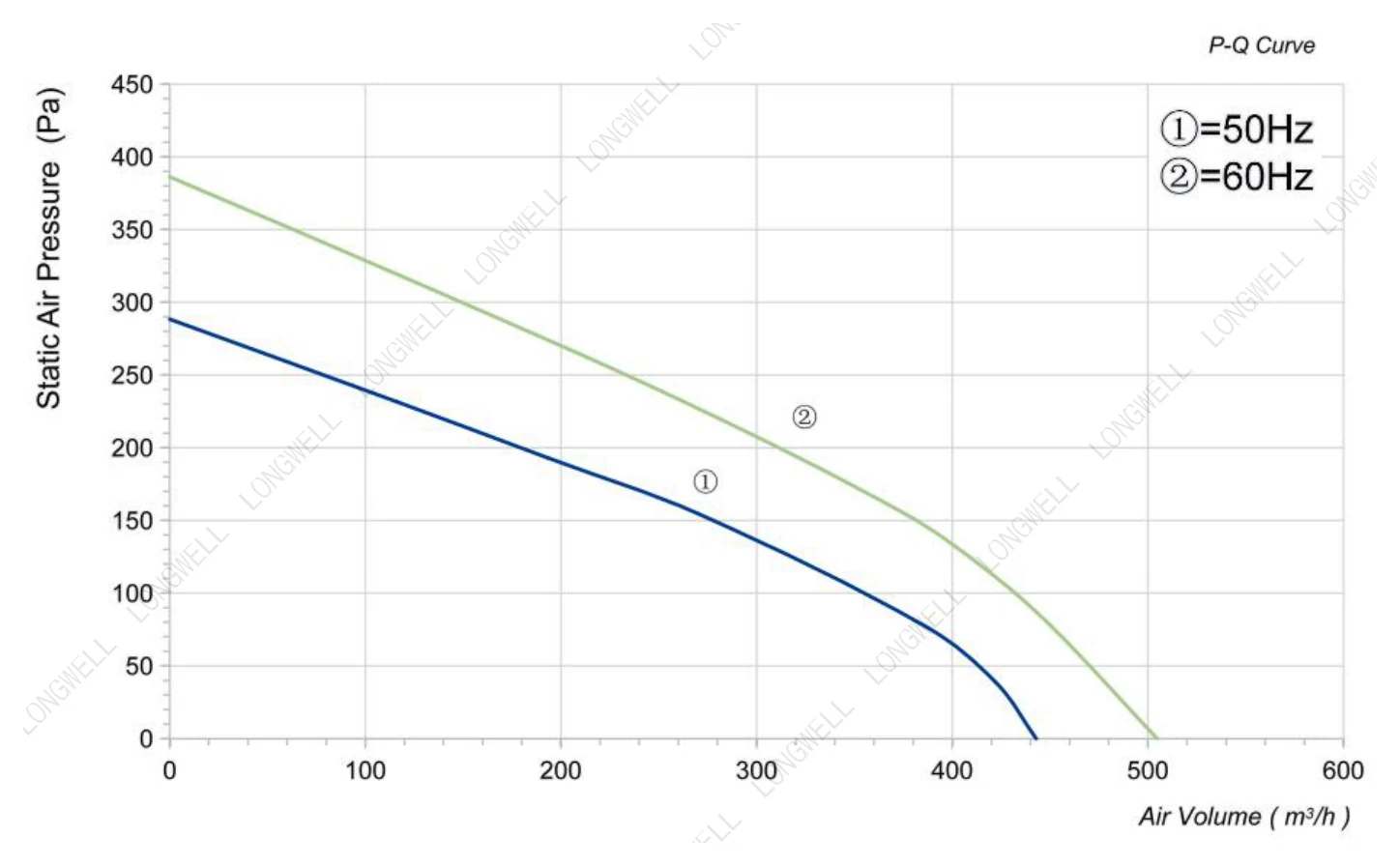

LWBA2E175-092NS-03 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

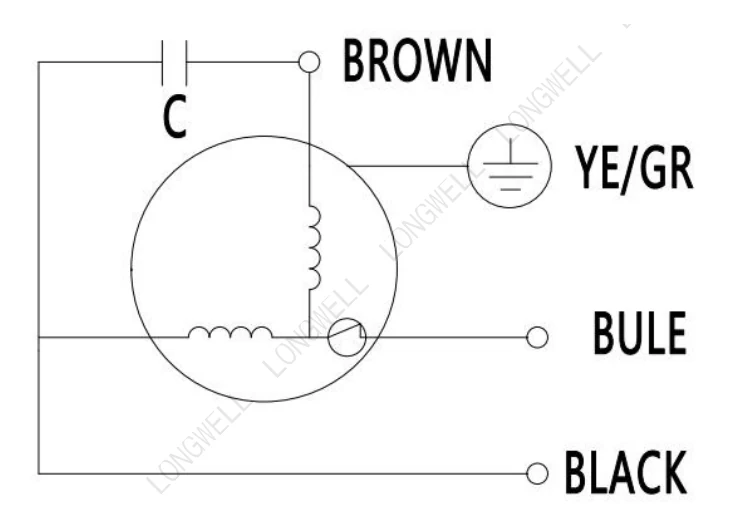

LWBA2E175-092NS-03 Wiring diagram — **Wiring diagram**Lead colours and terminal assignment; TK = motor thermal contact.

Files for LWBA2E175-092NS-03: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWBA2E175-092NS-03

LWBA2E175-092NS-03 is a LONGWELL AC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø175 mm, rated 230 V AC, maximum airflow 443 m³/h, maximum static pressure 288 Pa, noise 64 dB(A), input power 52 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWBA2E175-092NS-03
Series	LWBA2E175
Motor type	AC
Phase	1-phase
Rated voltage	230 V
Frequency	50 Hz
Current	0.24 A
Input power	52 W
Speed	2,500 rpm
Max. airflow	443 m³/h
Max. airflow (CFM)	264 CFM
Max. static pressure	288 Pa
Noise	64 dB(A)
Ambient temperature	-40 ~ 65 °C
Storage temperature	-25 ~ 70℃
Humidity	0 ~ 85 % RH
Altitude	< 1000m
Impeller diameter	Ø175 mm
Rotor diameter	92 mm
Impeller material	Plastic PA66
Protection class	IP44
Insulation class	F
Bearing	Maintenance-free ball bearings
Duty	S1
Vibration standard	JB/T 8689
Service life	40,000Hours(L10), At 40 °Croom, humidity 15%~65%RH. Balancing According to JB/T 9101-1999 requirements G6.3 Vibration of the fan Test method accord with JB/T 8689 Installation method Horizontal or vertical installation Mate
Rotation	Clockwise,seen on rotor

Typical applications

Air handling units (AHU) and rooftop units (RTU)
Data-center CRAH / CRAC units and fan walls
Dust extraction and process ventilation
Fan filter units and air purifiers

Series LWBA2E175: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
