- Max airflow260 m³/h
- Max static pressure4,100 Pa
- Voltage230 V
- Speed9,500 rpm
- Input power300 W
LWGE148S-04 Gas Blower
Max airflow 260 m³/h | Max static pressure 4,100 Pa
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
LWGE148S-04 is a LONGWELL Gas Blower from the Gas Blowers range, rated 230 V, maximum airflow 260 m³/h, maximum static pressure 4,100 Pa, input power 300 W.
Technical data
| Model | LWGE148S-04 |
|---|---|
| Phase | 1-phase |
| Rated voltage | 230 V |
| Current | 2.4 A |
| Input power | 300 W |
| Speed | 9,500 rpm |
| Max. airflow | 260 m³/h |
| Max. static pressure | 4,100 Pa |
| Humidity | 0% RH ~ 90% RH |
| Bearing | Type : Free Ball Bearings |
Typical applications
- Condensing gas boilers
- Gas water heaters
- Premix burners

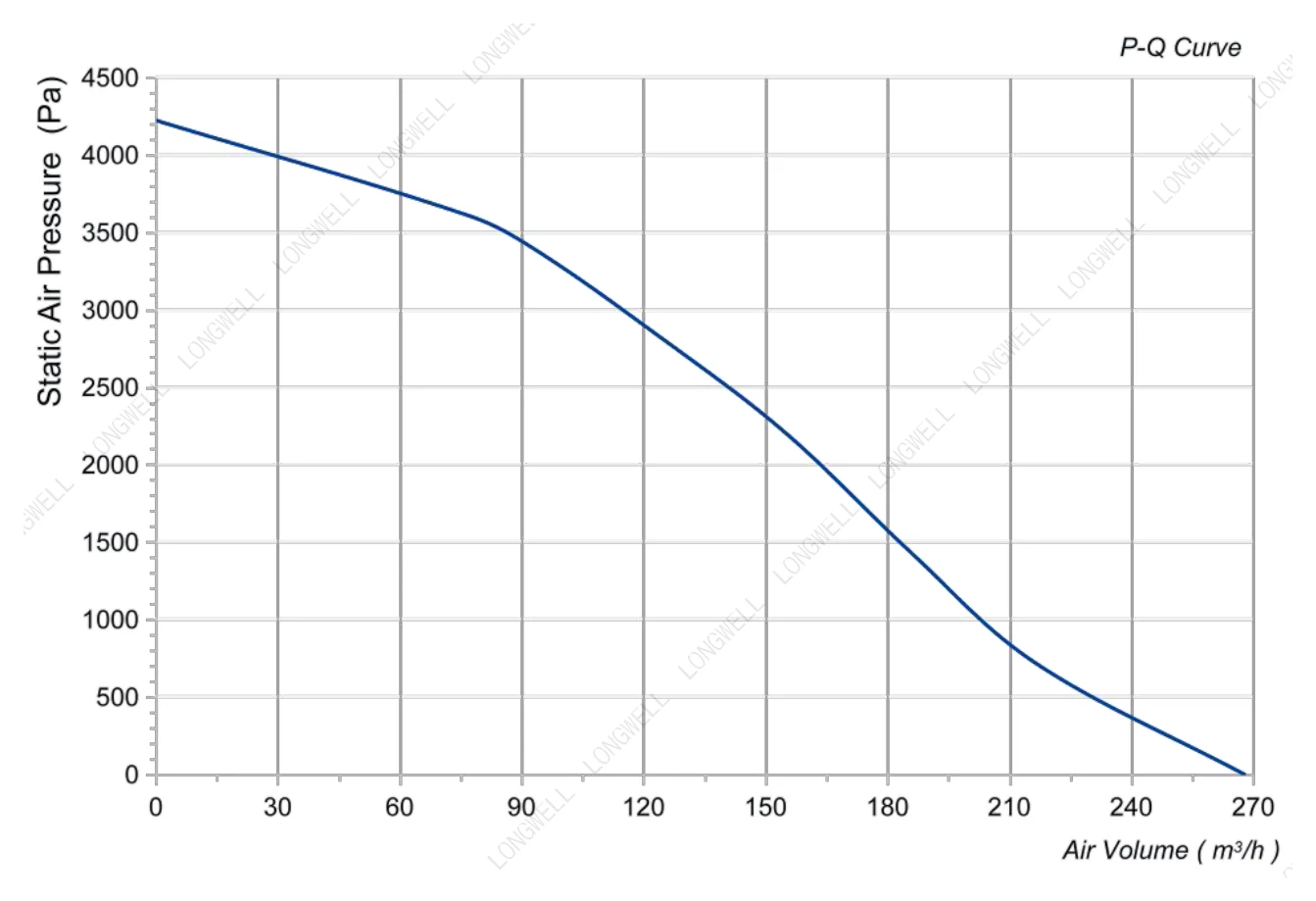

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
