- ImpellerØ750 mm29.5 in
- Max airflow260 m³/h153 CFM
- Voltage110-120 V
- Speed1,100 rpm
- Input power420 W
- Noise68 dB(A)

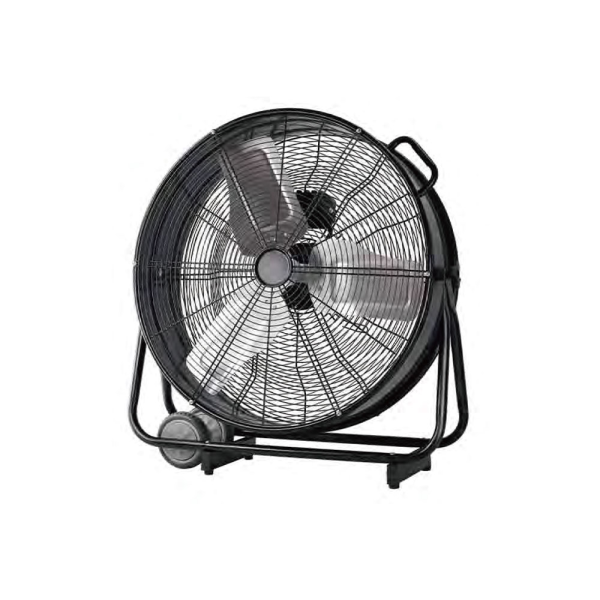

LWA-750(30″)U(S)M-01 Industrial Axial Fan Ø750 mm
Ø750 mm | AC | Max airflow 260 m³/h | 68 dB(A)
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

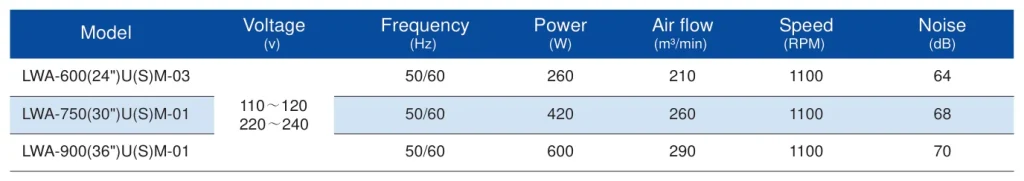

Catalogue table LWA-750(30")U(S)M-01
Files for LWA-750(30")U(S)M-01: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWA-750(30")U(S)M-01
LWA-750(30")U(S)M-01 is a LONGWELL Industrial Axial Fan from the Industrial Axial Fans range, impeller Ø750 mm, rated 110-120 V AC, maximum airflow 260 m³/h, noise 68 dB(A), input power 420 W.
Technical data
| Model | LWA-750(30")U(S)M-01 |
|---|---|
| Motor type | AC |
| Phase | 1-phase |
| Rated voltage | 110-120 V |
| Frequency | 50 Hz |
| Input power | 420 W |
| Speed | 1,100 rpm |
| Max. airflow | 260 m³/h |
| Noise | 68 dB(A) |
| Impeller diameter | Ø750 mm |
| Blade diameter | 750mm |
Typical applications
- Condensers, evaporators and dry coolers
- Heat-pump and chiller outdoor units
- Building and workshop ventilation
- Cooling towers and transformer cooling
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Company certificates
Scans of original documents held by Ningbo Longwell Electric Technology Co., Ltd.: the company ISO 9001 / 14001 / 45001 management-system certificate. Click a scan to open the original.
ISO 9001 / 14001 / 45001Management systems of Ningbo Longwell Electric Technology Co., Ltd. (company certificate).
PDFISO 9001 / 14001 / 45001 management system certificateNeed a Declaration of Conformity for this model and your destination market? Ask us — we arrange additional certification on request.
How to order LWA-750(30")U(S)M-01
Most first orders follow the same eight steps. Quantities, terms and lead times are confirmed in your quotation.
- 1SelectFind models by duty point in the selector or by model number, compare on the curve and add them to your RFQ list.
- 2Engineering checkWithin 1 business day you receive the duty-point check on the curve, price and lead time.
- 3SamplesStock models ship in 1–3 days.
- 4Validation supportDatasheets, drawings, wiring diagrams and DoC per model; test reports, CAD and register maps after a short project check or NDA.
- 5Order & paymentProforma invoice; first orders on T/T 30 / 70.
- 6Production & release15–30 days at the partner factory that builds your model, then inspected and released to LONGWELL standards with outgoing sampling to AQL 2.5.
- 7ShippingFOB / CIF / DDP by sea from Ningbo or Shanghai; express and air on EXW / FCA / DAP.
- 8After-sales12 months standard, extendable to 18–24 months by project agreement; test records retained for 5 years; 8D closed-loop for any issue; annual technical review for framework customers.
Test & release at LONGWELL
Specified and drawn by LONGWELL; built to LONGWELL drawings by qualified partner factories; inspected and released to LONGWELL standards before shipment.
See test and release photos (8)
Alternatives with the same impeller (Ø750 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWA-750(30")U(S)M-01 this model | 260 m³/h | see curve | 1,100 rpm | 420 W | 68 dB(A) | 110-120 V | |
| LWEA750S(T)M-072E | 10,500 m³/h | see curve | 1,450 rpm | 1,500 W | — | 220 V | View |
| LWEAF750-01 | 10,500 m³/h | see curve | 1,450 rpm | 1,500 W | — | 380 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
Adjacent sizesOne size up when airflow is short, one size down when it is too much
LWAA6D710S-5MKB-06Ø710 mm · 17,510 m³/h · ACadjacent size
LWAA8D710S-7MKB-04Ø710 mm · 12,360 m³/h · ACadjacent size
LWAA4D710S-7MKB-05Ø710 mm · 20,600 m³/h · ACadjacent size
LWAA6D710S-5MEW-07Ø710 mm · 17,510 m³/h · ACadjacent size
LWAA4D710S-7MGB-05Ø710 mm · 20,600 m³/h · ACadjacent size
LWAA6D710S-7MGB-03Ø710 mm · 17,510 m³/h · ACadjacent sizeAlternatives at a similar dutySimilar airflow, different construction or motor platform
LWGE148S-04260 m³/h · 4,100 Pasimilar dutyLWGE148U-03260 m³/h · 4,100 Pasimilar duty
LWFA4E120-092SS-01Ø120 mm · 262.5 m³/h · 294 Pa · ACsimilar duty
LWAD12025MX-01120 mm · 255.6 m³/h · 151 Pa · DCsimilar duty
LWAD12025HX-01120 mm · 255.6 m³/h · 151 Pa · DCsimilar duty
LWAD12025LX-01120 mm · 255.6 m³/h · 151 Pa · DCsimilar dutySee all Axial Fans · select by duty point
