Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.
- ImpellerØ120 mm4.7 in
- Max airflow262.5 m³/h168 CFM
- Max static pressure294 Pa1.18 in. wg
- Voltage230 V
- Speed1,760 rpm
- Input power54 W
- Noise59 dB(A)
LWFA4E120-092SS-01 AC Single Inlet Forward Centrifugal Blower Ø120 mm
Ø120 mm | AC | Max airflow 262.5 m³/h | Max static pressure 294 Pa | 59 dB(A)
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not publicly downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

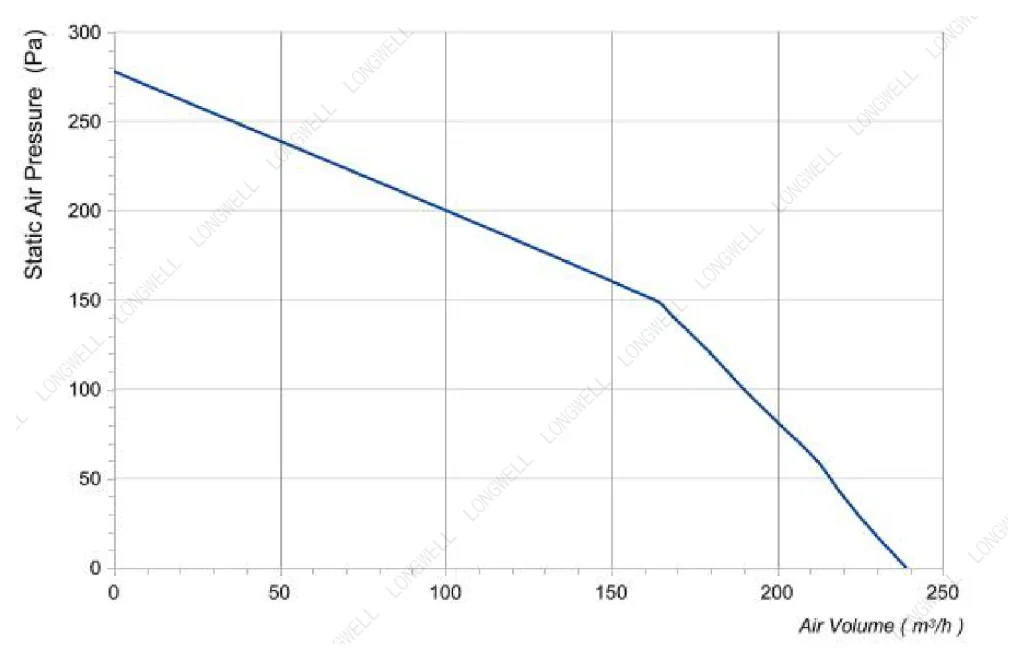

Performance curve (P-Q) LWFA4E120-092SS-01
Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 230 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

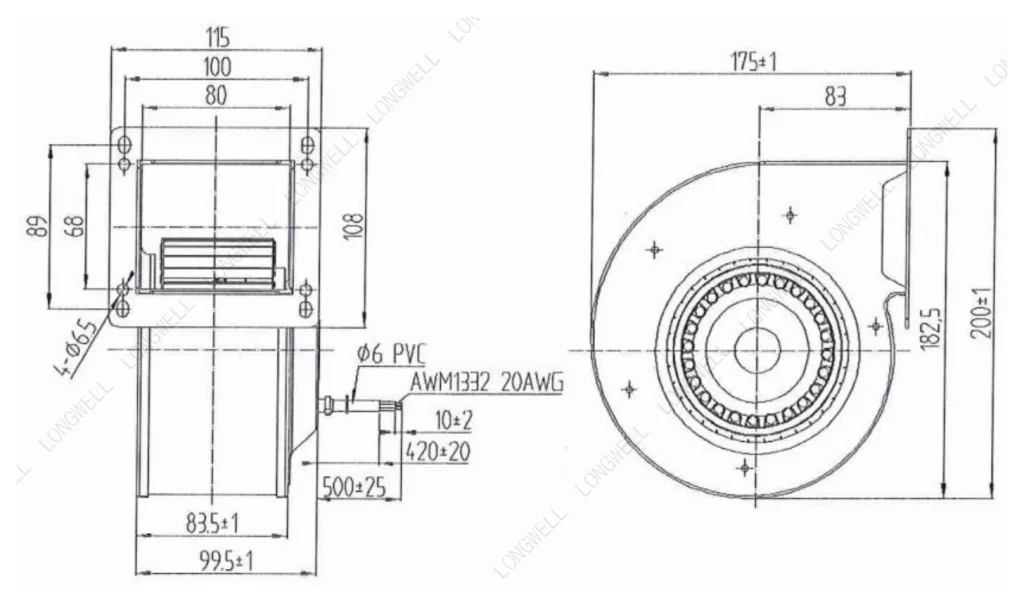

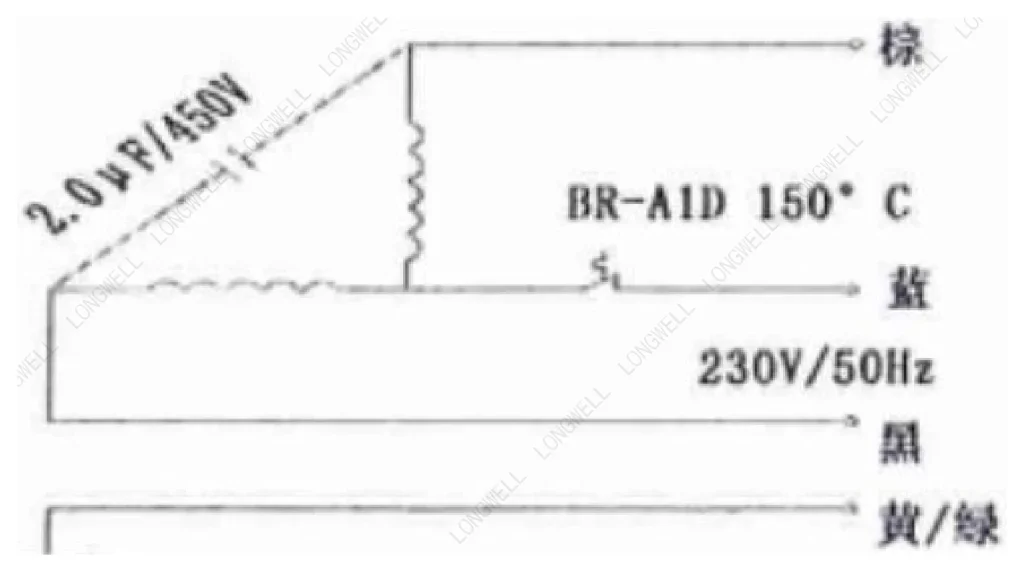

Drawing, Curve & Wiring LWFA4E120-092SS-01
Files for LWFA4E120-092SS-01: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWFA4E120-092SS-01
LWFA4E120-092SS-01 is a LONGWELL AC Single Inlet Forward Centrifugal Blower from the Single Inlet Forward Curved Blowers range, impeller Ø120 mm, rated 230 V AC, maximum airflow 262.5 m³/h, maximum static pressure 294 Pa, noise 59 dB(A), input power 54 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWFA4E120-092SS-01 |
|---|---|
| Series | LWFA4E120 |
| Motor type | AC |
| Phase | 1-phase |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Current | 0.24 A |
| Input power | 54 W |
| Speed | 1,760 rpm |
| Max. airflow | 262.5 m³/h |
| Max. airflow (CFM) | 168 CFM |
| Max. static pressure | 294 Pa |
| Noise | 59 dB(A) |
| Ambient temperature | -30 ~ 60 °C |
| Storage temperature | -40 ~ 80℃ |
| Humidity | 0 ~ 95 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø120 mm |
| Rotor diameter | 92 mm |
| Impeller material | Galvanised sheet ( Impeller ) |
| Protection class | IP44 |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 30,000Hours(L10), At 40 °Croom, humidity 15%~65%RH |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWFA4E120: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
