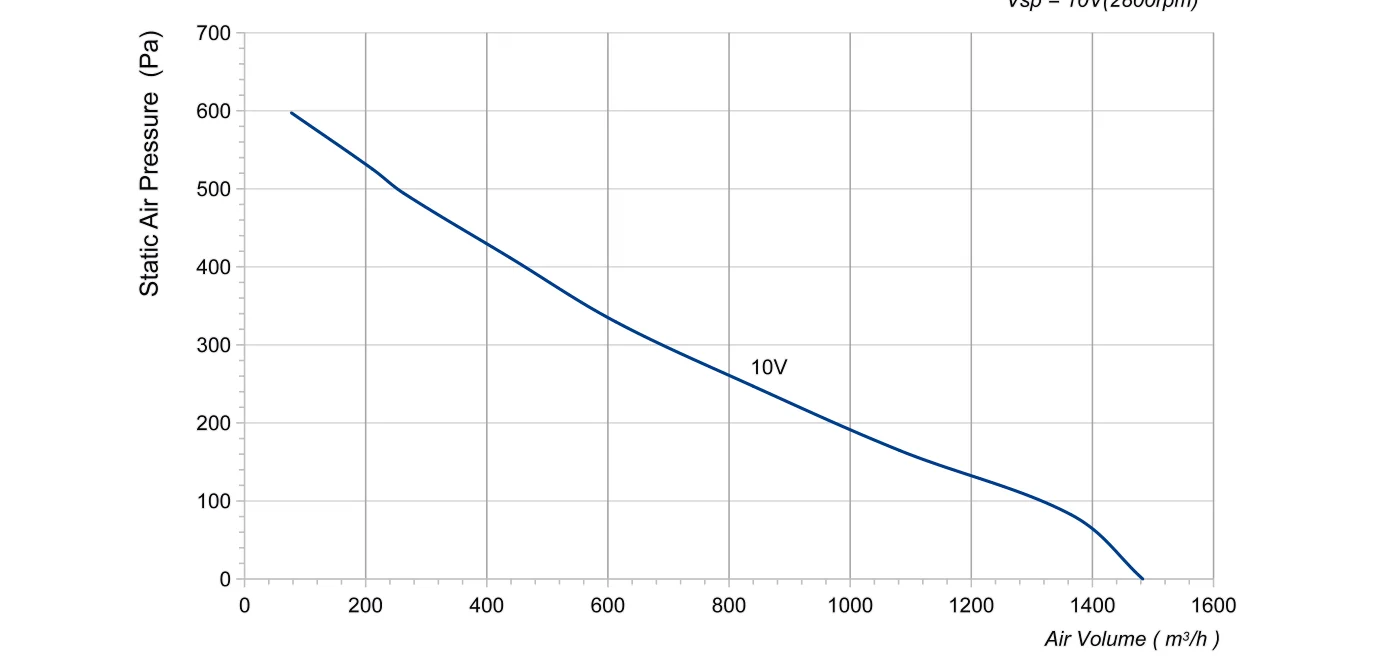

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ250 mm
- Max airflow1,483 m³/h
- Max static pressure597 Pa
- Voltage310 V
- Speed2,800 rpm
- Input power110 W
- Noise69 dB(A)

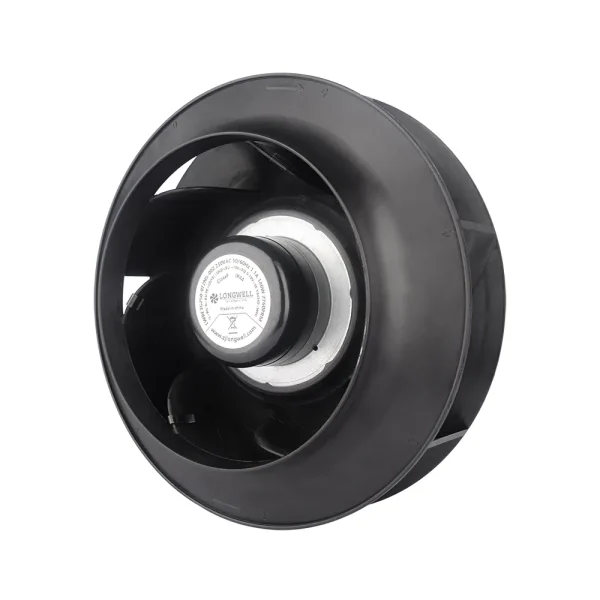

LWBD3G250-072NZ-07 DC Backward Curved Centrifugal Fan Ø250 mm
Ø250 mm | DC | Max airflow 1,483 m³/h | Max static pressure 597 Pa | 69 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Need a non-standard size or another format? Ask an engineer or search the download center.
LWBD3G250-072NZ-07 is a LONGWELL DC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø250 mm, rated 310 V DC, maximum airflow 1,483 m³/h, maximum static pressure 597 Pa, noise 69 dB(A), input power 110 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.
Technical data
| Model | LWBD3G250-072NZ-07 |
|---|---|
| Series | LWBD3G250 |
| Motor type | DC |
| Rated voltage | 310 V |
| Current | 0.35 A |
| Input power | 110 W |
| Speed | 2,800 rpm |
| Max. airflow | 1,483 m³/h |
| Max. static pressure | 597 Pa |
| Noise | 69 dB(A) |
| Ambient temperature | -25 ~ 60 °C |

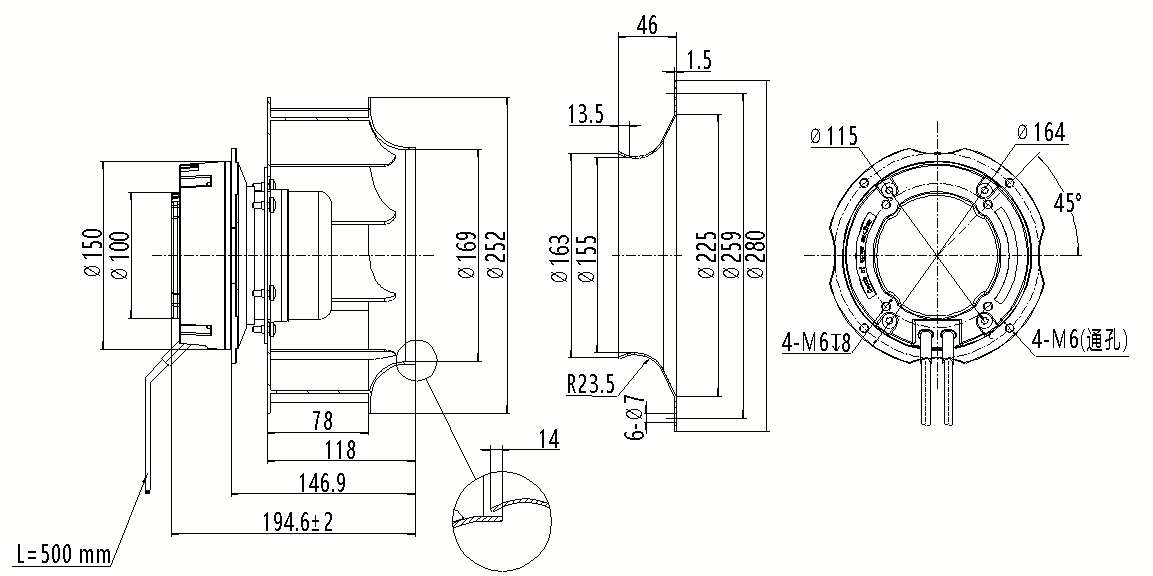

| Impeller diameter | Ø250 mm |
| Rotor diameter | 72 |
| Impeller material | Plastic PA66+25%GF |
| Protection class | IP44 |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Rotation | Clockwise,seen on rotor |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWBD3G250: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø250 mm · DC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWBD3G250-072NZ-07 this model | 1,483 m³/h | 597 Pa | 2,800 rpm | 110 W | 69 dB(A) | 310 V | |
| LWBD3G250-092NH-05 | 577 m³/h | 1,009 Pa | 3,000 rpm | 150 W | 79 dB(A) | 48 V | View |
| LWDD-250H-MBN-09 | 1,236 m³/h | 577 Pa | 2,638 rpm | 130 W | 72 dB(A) | 48 V | View |
| LWDD-250M-MBN-08 | 1,236 m³/h | 577 Pa | 2,638 rpm | 130 W | 72 dB(A) | 24 V | View |
| LWBD3G250-092NH-06 | 1,442 m³/h | 690 Pa | 3,000 rpm | 160 W | 79 dB(A) | 48 V | View |
| LWAD3G250ZB-7MKW-08 | 1,751 m³/h | 288 Pa | 3,150 rpm | 135 W | 69 dB(A) | 310 V | View |
| LWAD3G250ZS-7MKW-07 | 1,751 m³/h | 288 Pa | 3,150 rpm | 135 W | 69 dB(A) | 310 V | View |
| LWAD3G250ZS-7MEW-05 | 1,751 m³/h | 288 Pa | 3,150 rpm | 135 W | 69 dB(A) | 310 V | View |
| LWAD3G250ZB-7MEW-06 | 1,751 m³/h | 288 Pa | 3,150 rpm | 135 W | 69 dB(A) | 310 V | View |
| LWAD3G250ZS-7MNW-03 | 1,751 m³/h | 288 Pa | 3,150 rpm | 135 W | 69 dB(A) | 310 V | View |
| LWAD3G250ZB-7MNW-04 | 1,751 m³/h | 288 Pa | 3,150 rpm | 135 W | 69 dB(A) | 310 V | View |
| LWAD3G250MS-7MKB-01 | 1,957 m³/h | 227 Pa | 2,780 rpm | 105 W | 69 dB(A) | 24 V | View |
| LWAD3G250HS-7MKB-02 | 1,957 m³/h | 227 Pa | 2,780 rpm | 105 W | 69 dB(A) | 48 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
