ImpellerØ900 mm35.4 in
Max airflow290 m³/h171 CFM
Voltage110-120 V
Speed1,100 rpm
Input power600 W
Noise70 dB(A)

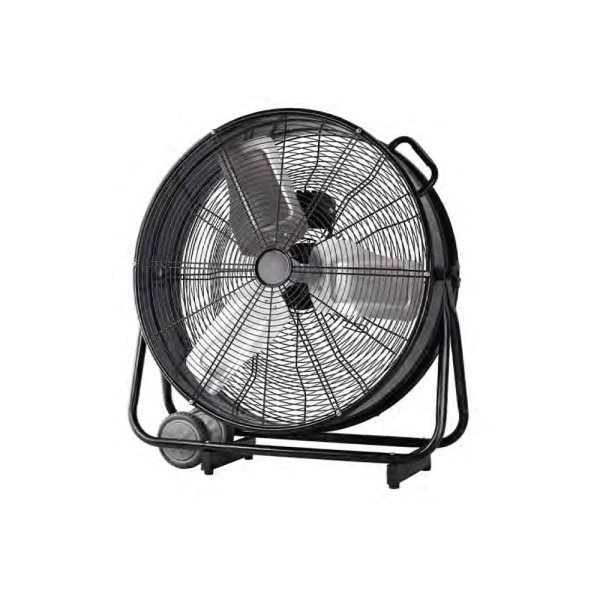

LWA-900(36″)U(S)M-01 Industrial Axial Fan Ø900 mm

Ø900 mm | AC | Max airflow 290 m³/h | 70 dB(A)

SKU: LWA-900(36")U(S)M-01 Categories: Axial Fans, Impeller Ø400–1000 mm, Industrial Axial Fans

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · RoHS · ETL on request

Get a quote · LWA-900(36")U(S)M-01

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com All files for LWA-900(36")U(S)M-01drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Drawings & downloads
Technical description

LWA-900(36")U(S)M-01 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

Need a non-standard size or another format? Ask an engineer or search the download center.

LWA-900(36")U(S)M-01 is a LONGWELL Industrial Axial Fan from the Industrial Axial Fans range, impeller Ø900 mm, rated 110-120 V AC, maximum airflow 290 m³/h, noise 70 dB(A), input power 600 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWA-900(36")U(S)M-01
Motor type	AC
Phase	1-phase
Rated voltage	110-120 V
Frequency	50 Hz
Input power	600 W
Speed	1,100 rpm
Max. airflow	290 m³/h
Noise	70 dB(A)
Impeller diameter	Ø900 mm
Blade diameter	900mm

Typical applications

Condensers, evaporators and dry coolers
Heat-pump and chiller outdoor units
Building and workshop ventilation
Cooling towers and transformer cooling

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø900 mm · AC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWA-900(36")U(S)M-01 this model	290 m³/h	see curve	1,100 rpm	600 W	70 dB(A)	110-120 V
LWAA6D900S-5MKB-01	31,106 m³/h	see curve	940 rpm	2,600 W	80 dB(A)	380 V	View
